TIPPING SEAT FORWARD
Put steering levers up and tip seat forward
(figure 7).
SEAT ADJUSTMENT
1. Tip the seat forward.
2. Loosen mounting hardware and slide
seat forward or backward to desired
position. Tighten mounting hardware
(figure 7).
3. Tip seat back.
MOWER DECK REMOVAL AND
INSTALLATION
Remove (Figure 8)
1. Remove PTO belt from electric clutch
(see REPLACING PTO BELT on
page 24).
NOTE: Perform step 2 and 3 for the right and
left side of unit.
2. Remove drag link from mower deck.
3. Remove front and rear trunnions from lift
arms.
4. Slide mower deck out from under unit.
SERVICE AND ADJUSTMENTS
WARNING: AVOID INJURY.
Read and understand the entire
Safety section before proceeding.

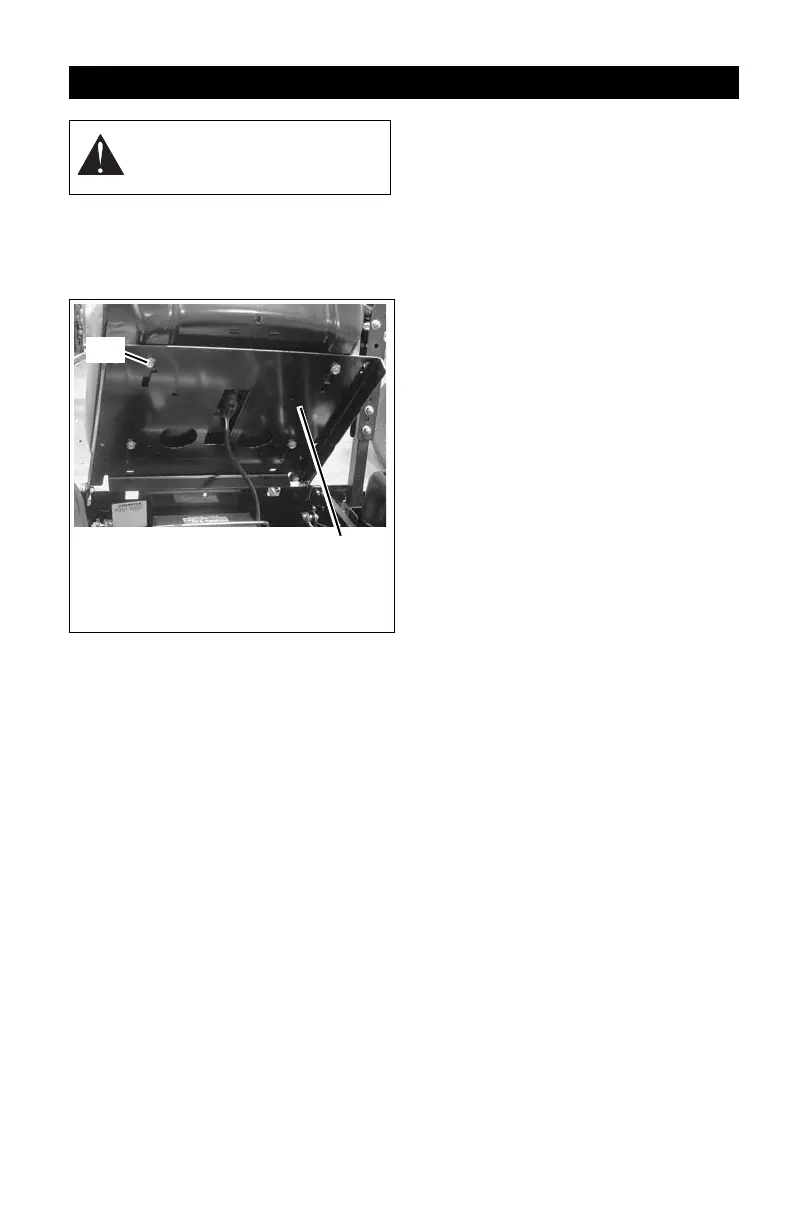

Figure 7
1. Seat Tipped Forward
2. Mounting Hardware
1
2
