GRE HPM20 - Exploded Diagrams and Parts List

29

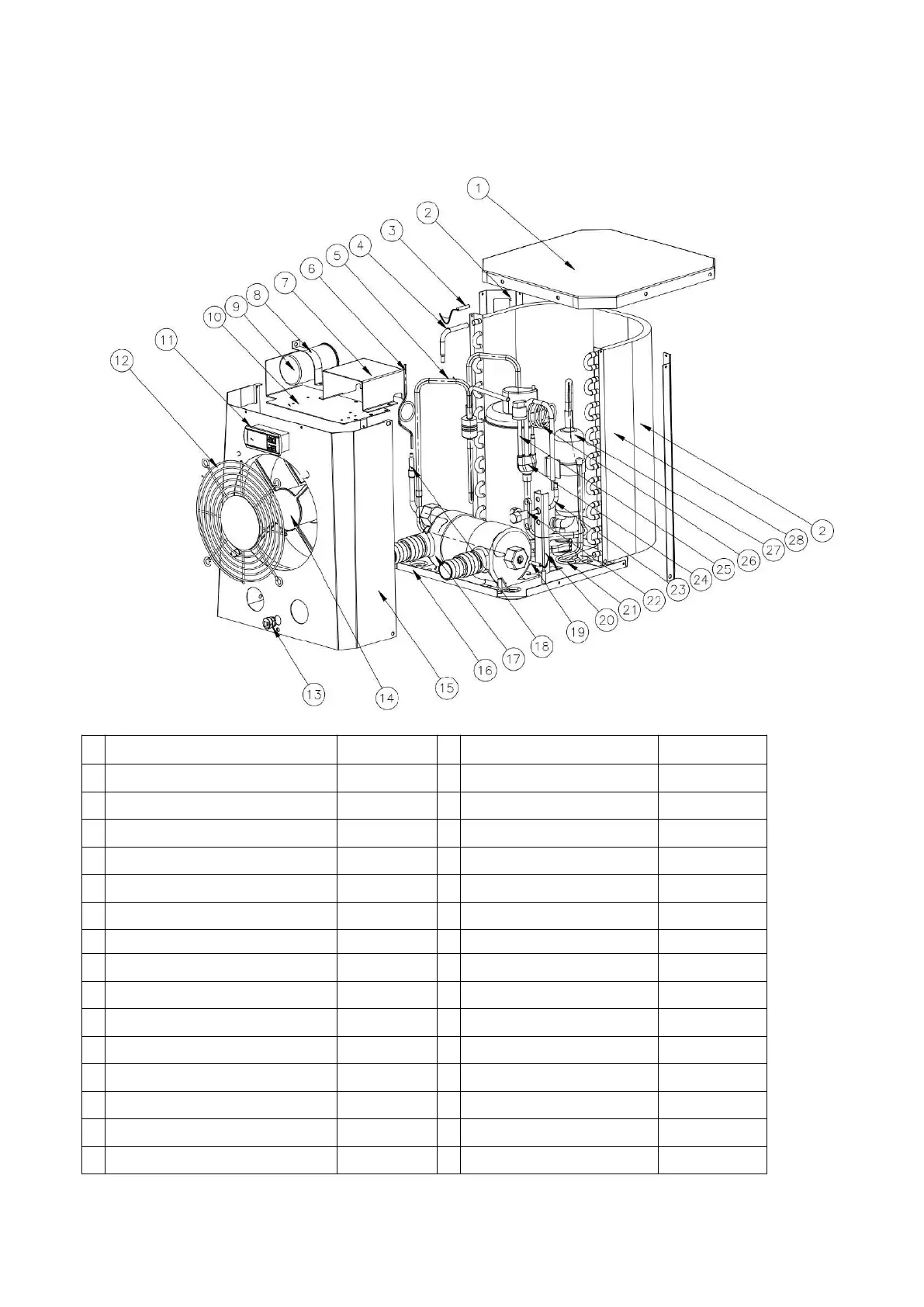

8. Exploded diagram
Unit: HPM20
No
Spare parts
HPM20
No
Spare parts
HPM20
1
Top cover
108680024
16
Base
108680029
2
Pillar
108680018
17
Titanium exchanger
102040699
3
Ambient temp. sensor
117110079
18
Copper pipe
113100026
4
Copper pipe
113100027
19
Water in temp. sensor
117110068
5
Exhaust pipe
113010232
20
Globe valve panel
108680007
6
Capillary
109000090
21
Gas collecting pipe
113050123
7
Electric box
108680016
22
Global valve
120000091
8
Compressor capacitance Clip
108010008
23
Copper pipe
113100008
9
Compressor capacitance
111000038
24
Gas return piping
113020328
10
Fan motor top plate
108680015
25
Low pressure switch
116000017
11
Controller
117020165
26
Globe valve capillary
109000048
12
Front grill
108680017
27
Compressor
101000191
13
Power cord buckle
142000126
28
Evaporator
103000236
14
Fan motor assembly
112000071
29
Electric cable
139000050
15
Front panel
108680030
