1 Fuselage
2 Cowl
3 Right Wing and Aileron
4 Left Wing and Aileron
5 Stabilizer and Elevators
6 Rudder
7 Dummy Engine
8 Engine Mount
9 Wheel Pants
10 Cowl Ring (2)
11 Canopy
12 Wire Landing Gear
13 Main Wheels
14 Tail Wheel Assembly
15 Wing Joiners
16 Decal Sheet (2)
17 Pushrods
18 Belly Pan
19 Plywood Servo Trays, Battery/Receiver
Tray, and Cowl Mounting Parts
(1) .60 -1.20 Engine mount (left)
(1) .60 -1.20 Engine mount (right)
(1) Brass EZ Connect
(4) 6-32 Blind Nuts
(4) 8-32 Blind Nuts
(2) 1/4-20 Blind Nuts
(5) Nylon Control Horn, Large
(1) Nylon Bearing for tail wheel wire
(2) 1/4 -20 Nylon bolts
(5) Nylon Clevis
(2) Flat Nylon landing Gear Straps (1tree of 4)
(1) Nylon retainer
(1) 2x9 Hinge material
(6) Faslink
(5) Silicone Clevis Keeper
(4) 6-32 Set Screw
(2) 6-32 x 1/4" SHCS
(2) 4-40 Set Screw
(1) 4-40 x 1/4" SHCS
(4) 6-32 x 1/2" SHCS
(8) #4 x 5/8 SMS
(8) 8-32 x 1" SHCS
(34) #2 x 1/2" SMS
(3) Heat Shrink Tube
(2) 1/8 Wheel Collar
(4) 5/32 Wheel Collar
(3) .074 x 17 1/2" wire
(3) .074 x 6" wire
(4) #6 Flat Washer
(8) #8 Lock washer
(8) #8 Flat Washer
(2) Axles
(4) 3 x 51 x 51mm Plywood Plate
(4) 3mm Plywood Cowl Mount Tabs
(18) 1/8" x 3/4" Aluminum Tube
(1) Pilot

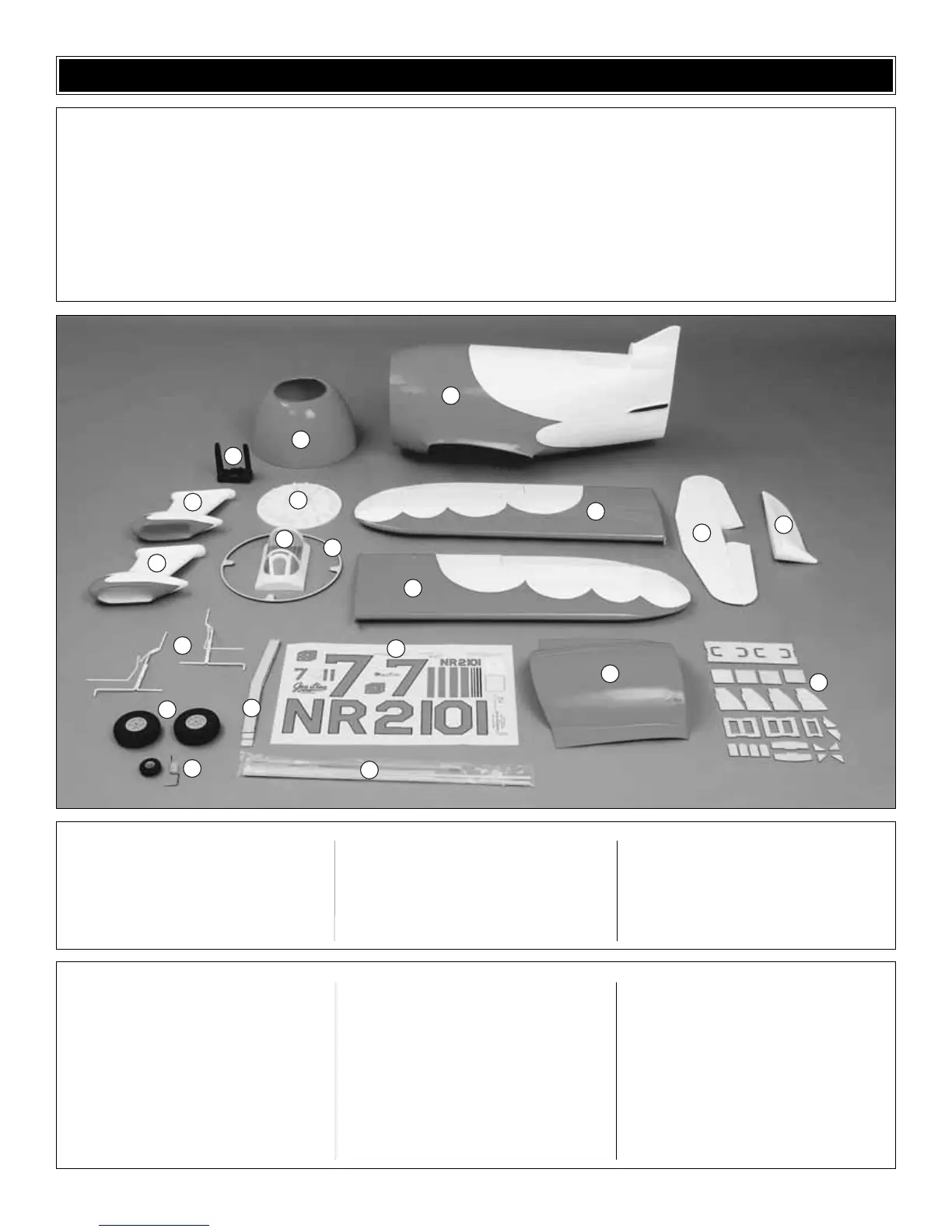

Kit Contents (Photographed)
Kit Contents (Not Photographed)
Before starting to build, take an inventory of this kit to make sure it is complete and inspect the parts to make sure they
are of acceptable quality. If any parts are missing or are not of acceptable quality, or if you need assistance with assembly,
contact Product Support. When reporting defective or missing parts, use the part names exactly as they are written in
the Kit Contents list on this page.
Great Planes Product Support
3002 N. Apollo Drive, Suite 1
Champaign, IL 61822
Telephone: (217) 398-8970
Fax: (217) 398-7721
E-mail: airsupport@greatplanes.com
KIT INSPECTION
