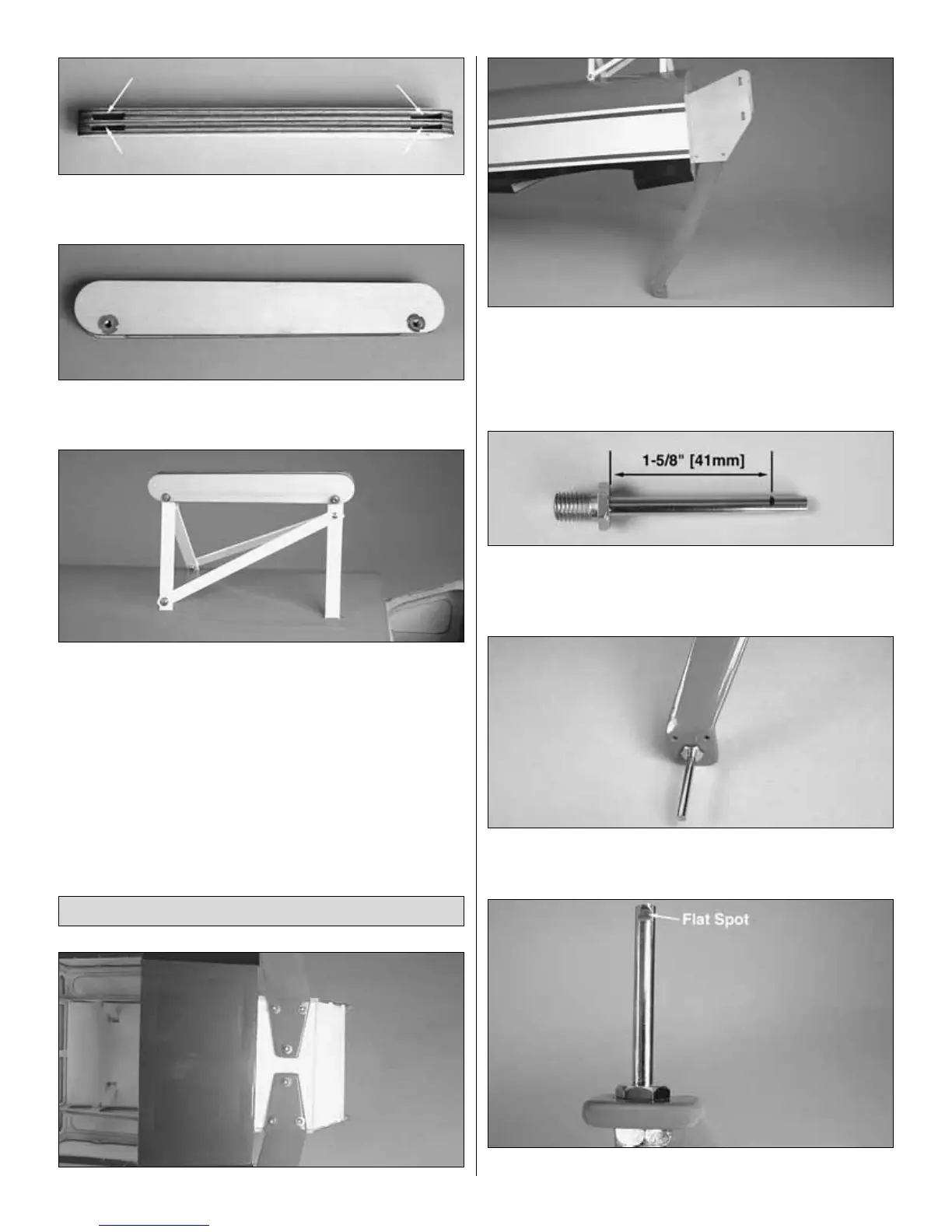

❏ 3.When properly assembled, four slots are formed in the
handle as shown.
❏ 4. Install two 4-40 blind nuts into the holes on one side of
the handle.
❏ 5. Position the handle onto the cabane. Fasten the
handle to the cabane with two 4-40 x 3/4" [19mm] socket-
head cap screws and #4 washers.
❏ 1. Bolt the landing gear to the fuselage with 6-32 x 1"
[25mm] socket-head cap screws, #6 lock washers and #6
flat washers. When installing the landing gear, be sure the
gear sweeps towards the back of the fuselage.
❏ 2. Cut the axles to a length of 1-5/8" [41mm].
❏ 3. Install the axles to the landing gear with the axle nuts.
❏ 4. File a flat spot onto the end of the axles.
Assemble the Landing Gear & Wheel Pants
16
