44

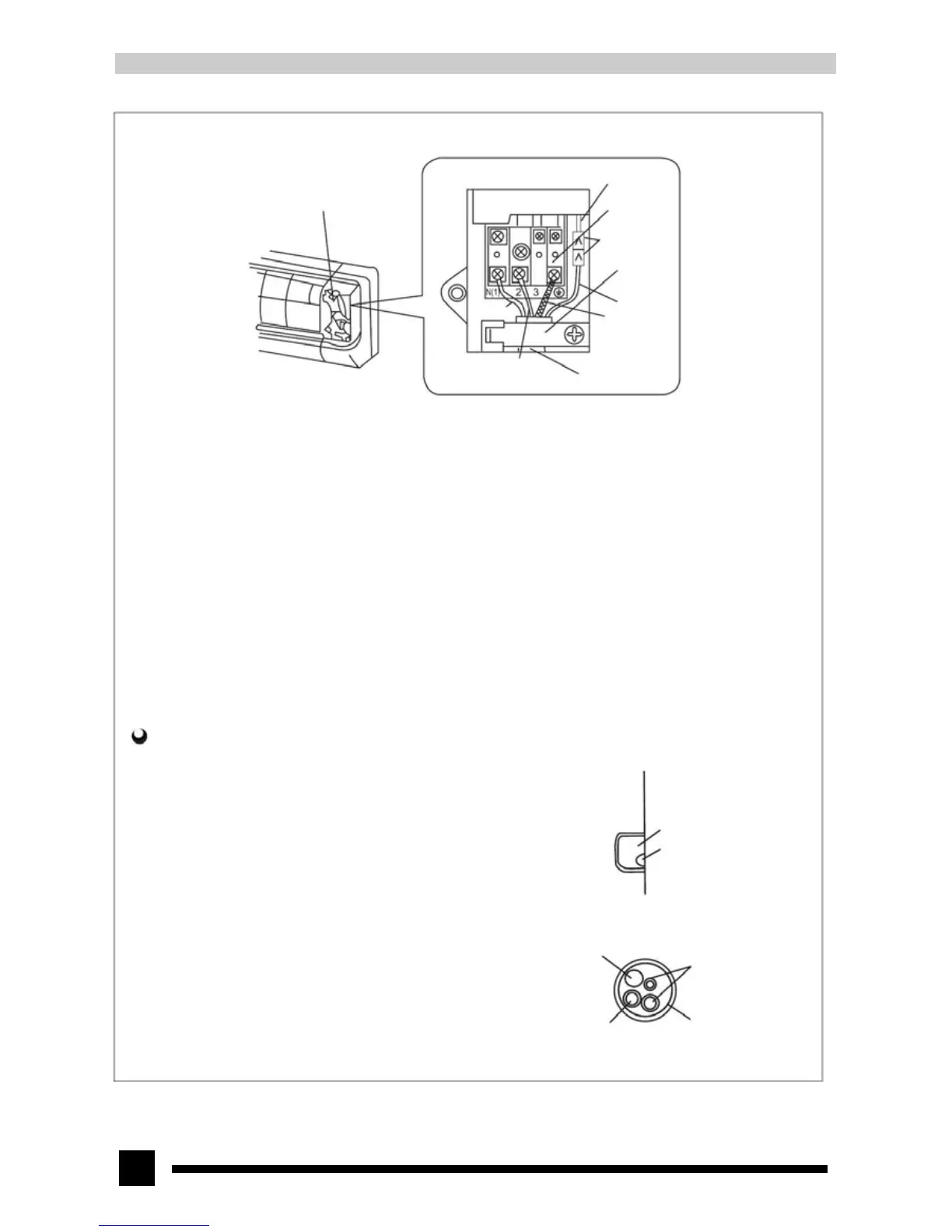

(Fig.11-3)
Notes：
● All the electrical work must be done by qualified personnel according to the local laws, regulations and this manual.
● The rated voltage and the exclusive circuit must be used.
● Electricity leakage protection switch must be installed.
● Use fuse that conforms to specification.
● The diameter of power cord should be large enough. Use the exclusive wire to replace the damage wire.
● Wiring work should conform to national standard.
11.3.6 Installing indoor unit
1. For the piping form of indoor unit, please refer to the right figure. When
piping on the left or right side, cut the tailing portion for piping left on the
base plate of the main unit, .as shown in Fig. 11-4 .
①Cut off tailing 1 when only the power cord is led out;
②Cut off tailings 1,2 when both the connection cord and wire are led out.
2. Wrap the pipe and wire well and place them through the piping hole, as
shown in Fig.11-5.
3. Hang the claw at the rear of the indoor unit to the clasp on the
wall-mounting frame and move the unit body left and right to see if it's
secured.
4. Above 2.0 meters of mounting height for indoor unit should be ensured.
Wiring cover
Signal controller
Terminal board
Connectors
Wire clip
Red
