116
9
UNIT INSTALLATION SPACE REQUIREMENTS
9.1 Selection of outdoor unit installation site
VRF units are used in a lot of situations and serve wider users. If the unit is installed in a living
environment, the cooling, heating and noise requirements will be higher, especially for the aged and
infants. Therefore, the indoor/outdoor unit model with sufficient capacity and low noise should be
preferred during model selection. It is not advisable to install the outdoor unit outside the bedroom,
study room, or meeting room. For the commercial site, it is improper to install the outdoor unit near the
office.

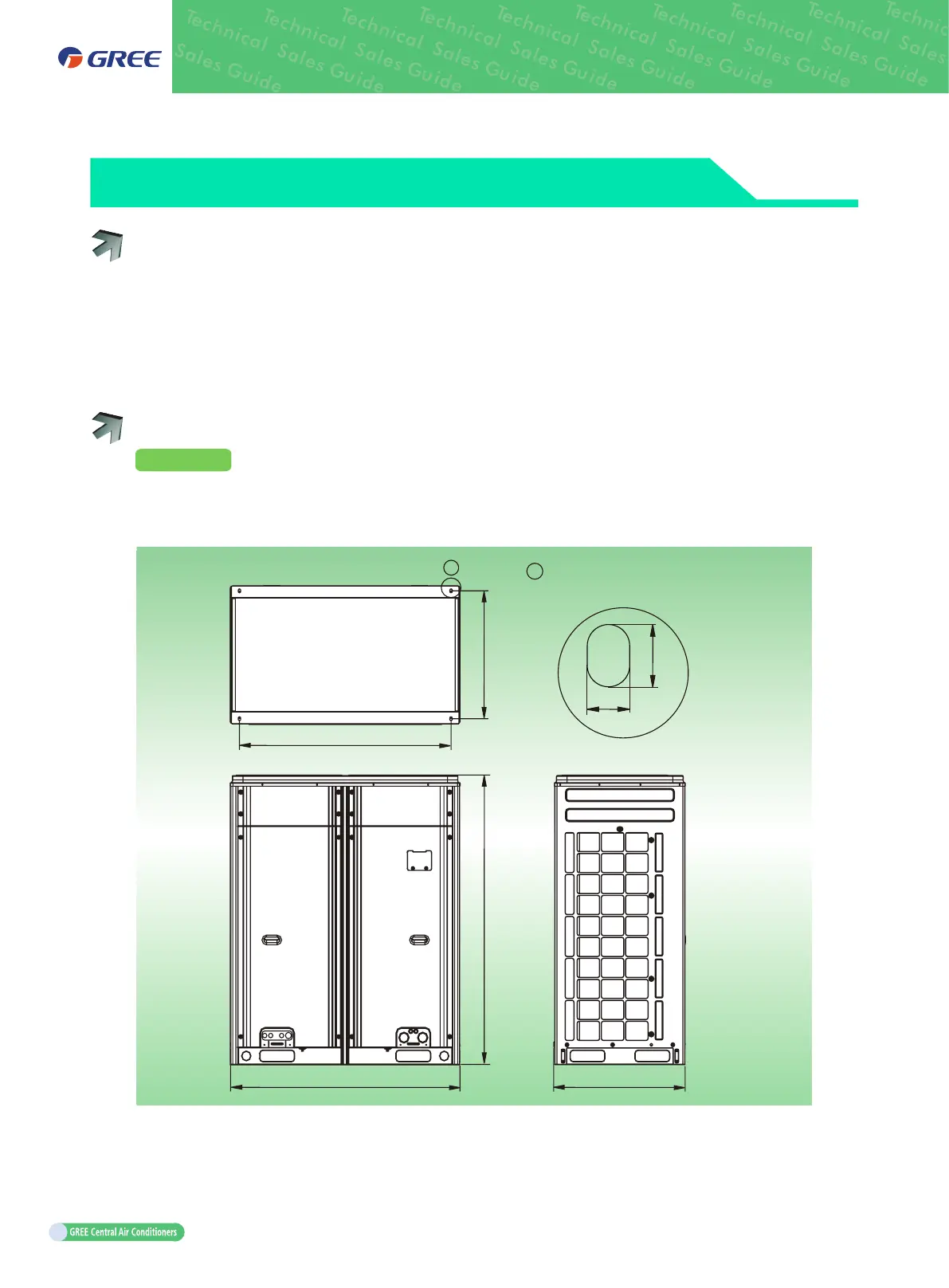

9.2 External dimensions and mounting hole dimensions of the outdoor unit
Unit: mm(in.)
External and installation dimensions of GMV-Q72WM/B-F(U), GMV-Q96WM/B-F(U), GMV-Q120WM/
B-F(U), GMV-Q144WM/B1-F(U), GMV-Q72WM/B-U(U) ,GMV-Q96WM/B-U(U) and GMV-Q120WM/
B-U(U);
1200(47-1/4)
765(30-1/8)
1340(52-3/4)
729(28-3/4)
1605(63-1/4)
1
22(7/8)
15(5/8)
1
Mounting hole postio
