Duct Type Split Air Conditioner
Service Manual
CONTROL
ON
ON
Time
ON
OFF
ON
OFF
Defrosting end
OFF
(anti cold air )
(AEH working condition)
OFF
ON
Control object
Compressor
Outdoor fan
Indoor fan
4-way valve
Auxiliary electric
heater
If the unit heats for 45min accumulatively, the compressor continuously runs for 4min and 50s, and T
condensate
≤
-5
℃
for 1s, defrosting will start.
If the unit defrosts for 10min or T condensate
≥
10
℃
, defrosting will end.
3.WIRED REMOTE CONTROLLER
3.1 Displaying Part

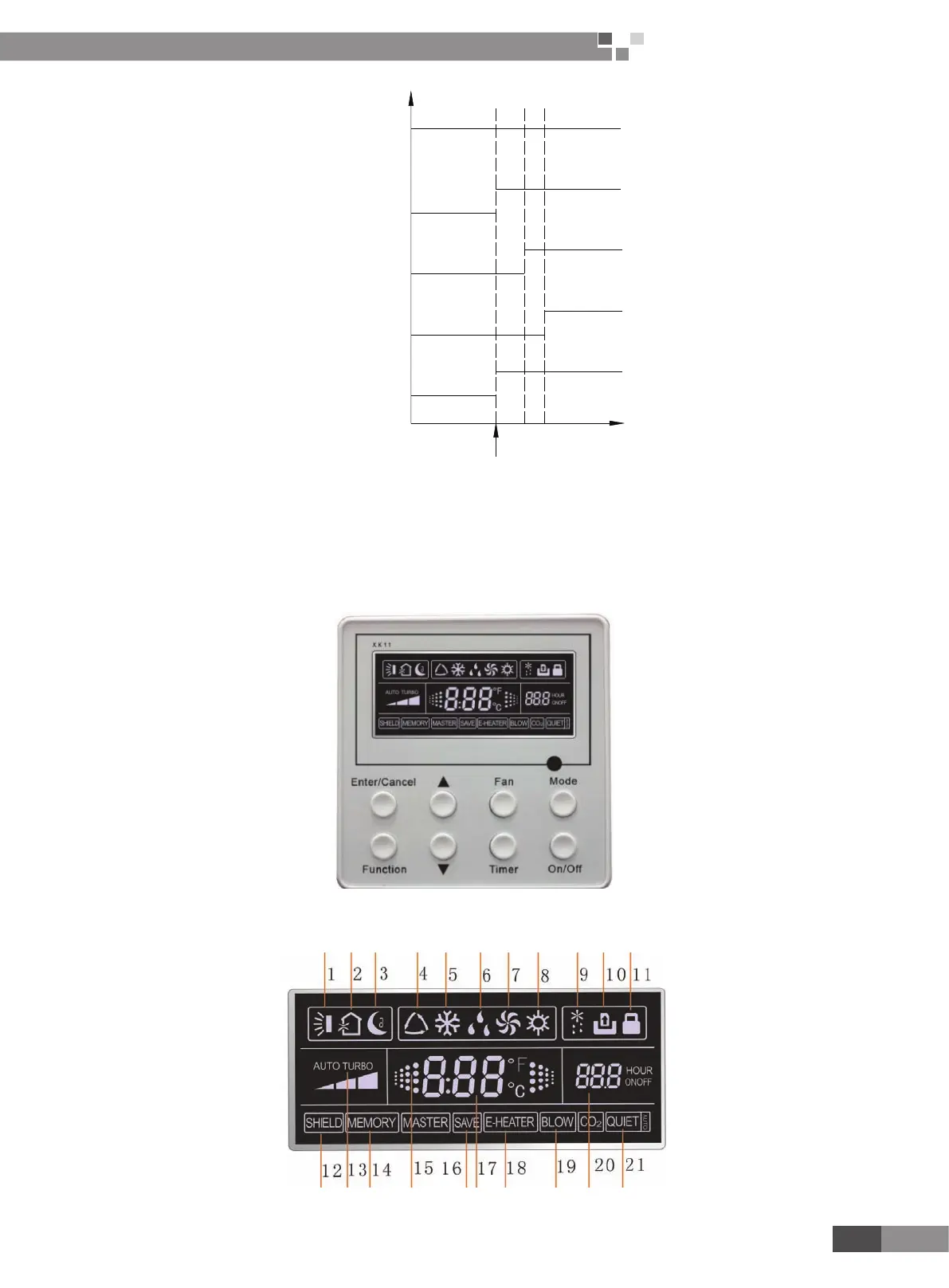

Fig.3.1 Outline of wired controller
3.1.1 LCD Display of Wired Controller
Fig.3.2 LCD display
