Duct Type Split Air Conditioner
Service Manual
CONTROL

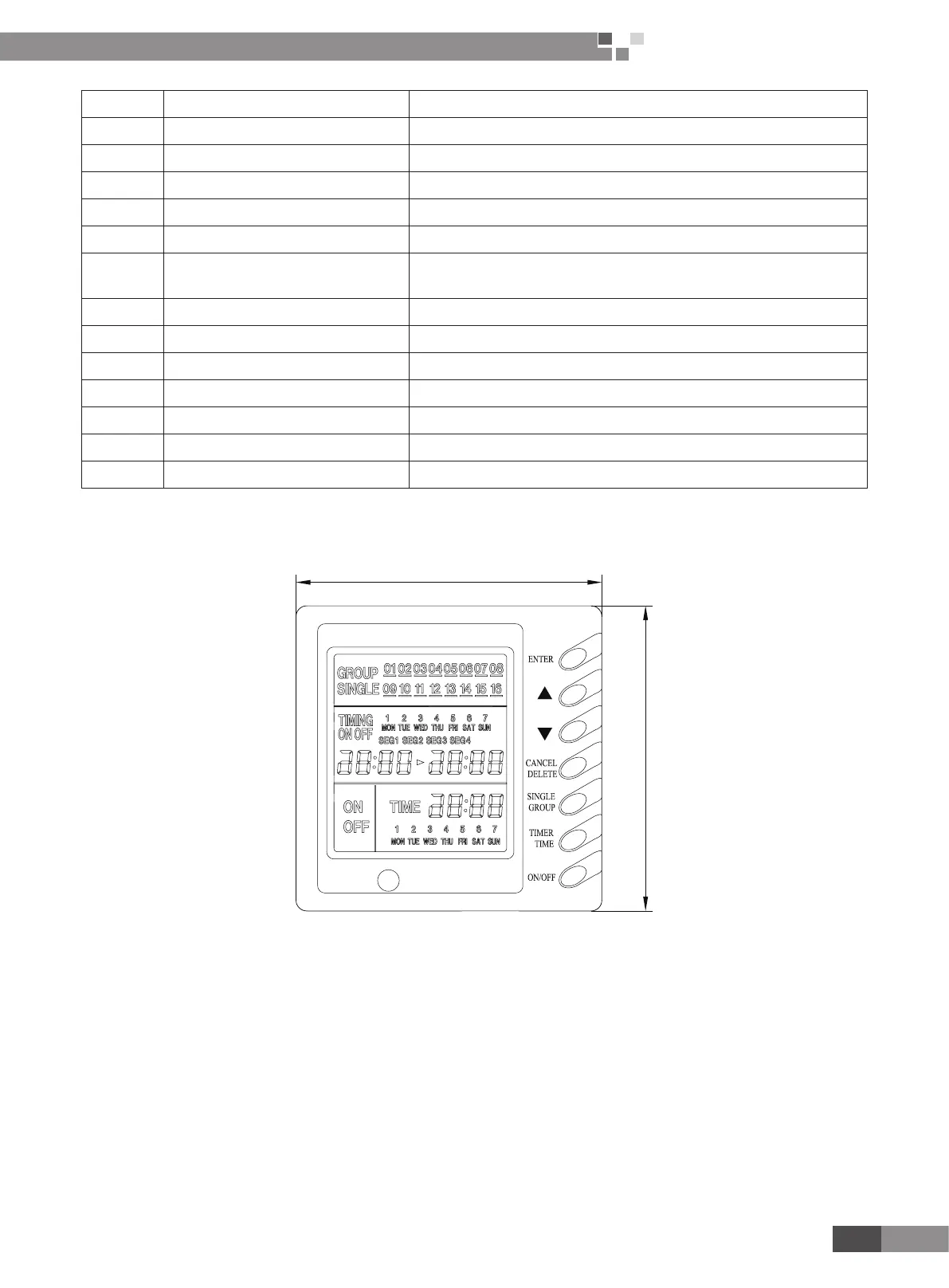

NO. Name Function description
1 unit’s no. displays Display unit’s numbers
2 Group control displays when group controls, it will display
3 Single control displays when single unit controls, it will display
4 Timer time in week displays Display time in week
5 Timer displays Display time
6 timer state displays
“on”: when set unit on, “on” will display
“off”: when set unit off, “off” will display
7 timer on time displays Display starts time
8 on control displays When set unit or group on, it will display
9 off control displays When set unit or group off, it will display
10 present time in week display Display present time of week
11 present time in Hr:Min displays Display time of hour and minute now
12 timer off time displays Display over time
13 timer period displays Set to different time segment
Note:
Please read corresponding manual of weekly timer controller to be familiar with it.
5.4 Dimensions
85
85
