5.2.2 GMV-80WL/A-T GMV-100WL/A-T GMV-121WL/A-T
GMV-80WL/C-T GMV-100WL/C-T GMV-121WL/C-T series unit
Removal operation for panel
Remark: Before removing the panel, please make sure that the unit is disconected with the power
Process

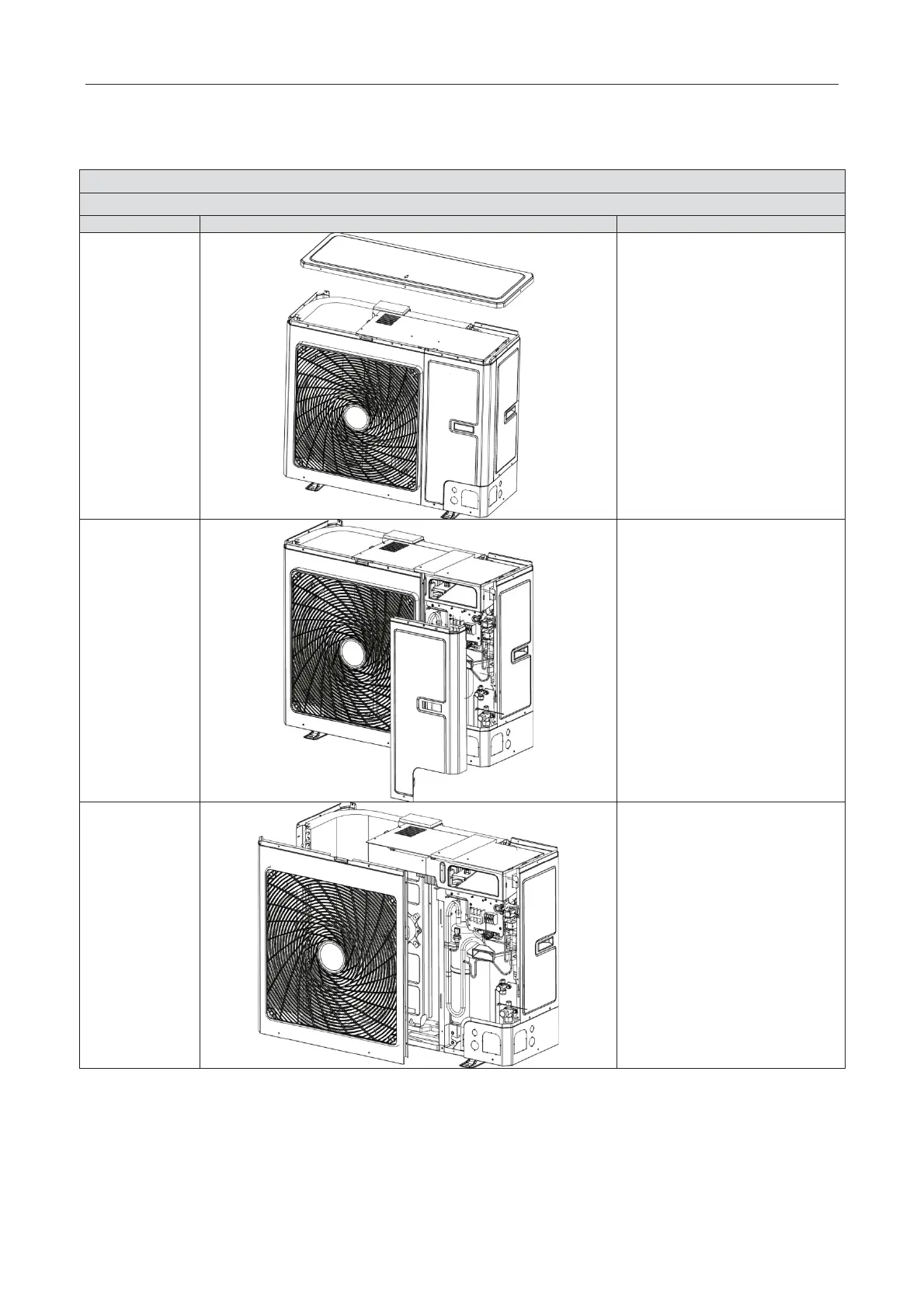

Operation Instruction
1.Remove top
cover
● Loose the screws fixing the top
cover with screwdriver
● Hold the top cover upwards
and then put it on the floor flatly
2. Remove front
side plate
sub
-assy
● Loose the screw fixing the front
side plate with screwdriver
● Hold the front side plate
upwards and then put it on the
floor flatly
3. Remove front
panel and grille
● Loose the screws fixing the front
panel and grille with screwdriver
● Put the front panel and grille on
the floor flatly
