7 Exploded View of Unit and Parts’ List
7.1 Exploed view for outdoor unit and parts’ list
1) Model: GMV-80WL/A-TǃGMV-100WL/A-TǃGMV-80WL/C-TǃGMV-100WL/C-T

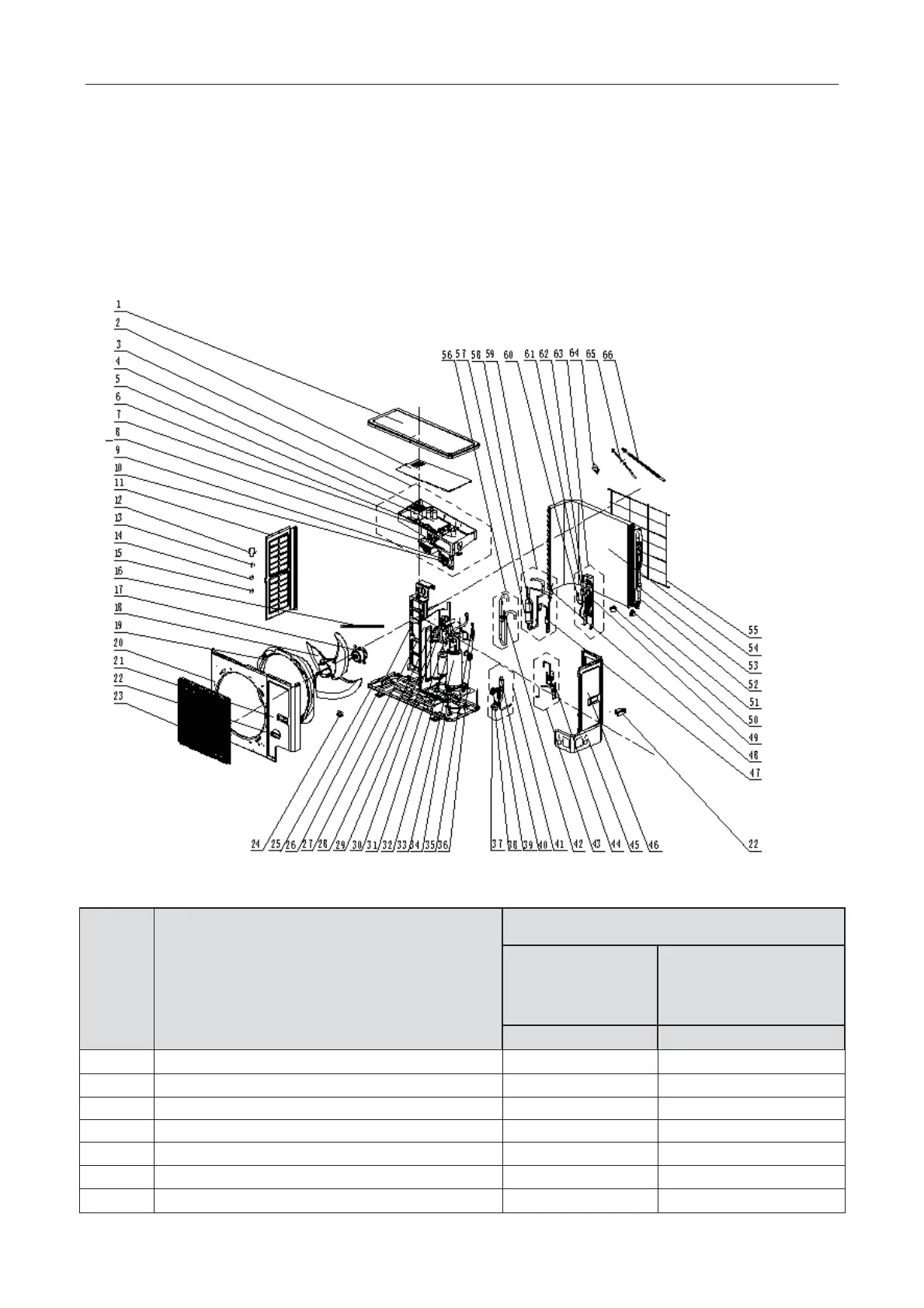

ǃExploded view
NO.
Name of Part
GMV-80WL/A-TǃGMV-100WL/A-Tǃ
GMV-80WL/C-T
ǃ
GMV-100WL/C-T
Product Code
CN850W0530
CN850W0430
CN850W0600
CN850W0590
Part Code
Quantity
1
Coping
'01264100027P
1
2
Electric Box Cover
'01424100064
1
3
Electric Box Assy
'100002000960
1
4
PFC Inductance
'43120011
1
5
Main Board
'30221000024
1
6
Filter Board
'300020000004
1
7
Main Board
'30226000045
1
