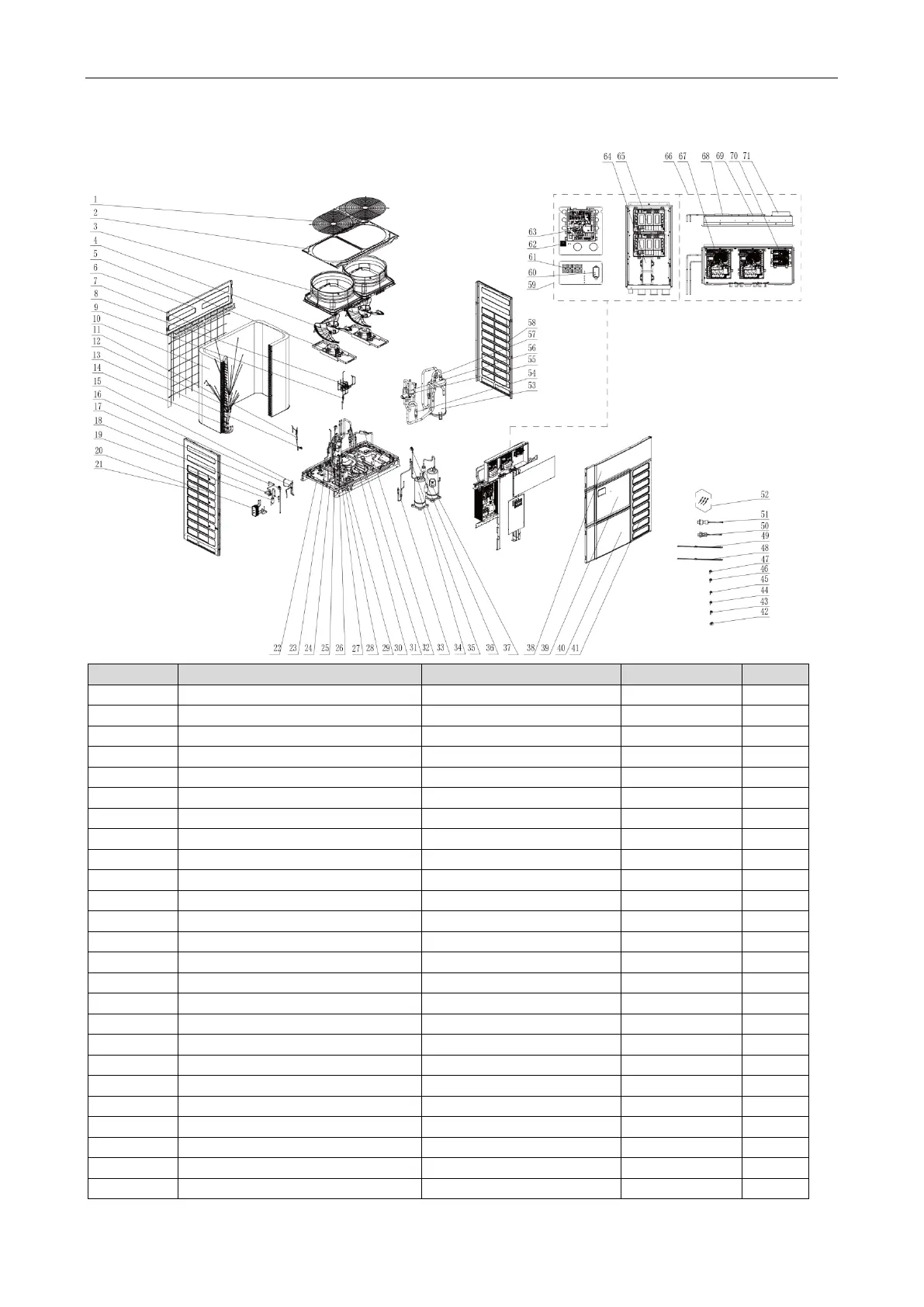

6.3 Explosive View and Parts List of GMV-560WM/G-X, GMV-
615WM/G-X and GMV-680WM/G-X
No.
Name
Code
Vulnerable part *
Qty
1
Mesh enclosure
016001060013
*
1
2
Top cover
012049000059P
1
3
Flow guiding ring
02204102
*
2
4
Axial fan blade
10434100002
*
1
5
Brushless DC motor
1570412405
*
1
6
Covering plate (back)
012035000247P
1
7
Mesh enclosure
016001060012
*
1
8
Solenoid valve
072008000005
*
3
9
Filter
07222025
*
1
10
Condenser assembly
011002060226
*
1
11
Filter
07415200002
*
1
12
Fluoride injection mouth
061200101
*
1
13
Fluoride injection mouth
06130002
*
1
14
Filter (filter fork-type pipe)
0341010701
*
1
15
Solenoid valve
43044100224
*
1
16
Unloading valve
07334100002
*
1
17
EXV coil UKV
4304413220
*
1
18
Electronic expansion valve
43044100173
*
1
19
Large-tube filter
072190511
*
1
20
Plate heat exchanger
010007060006
*
1
21
Left side plate assembly
017037060016P
1
22
Chassis assembly
017000060113P
1
23
Solenoid valve
43000072
*
1
24
EXV coil UKV
4304413269
*
1
25
Oil separator
035028060002
*
1
