Gree GMV6 DC Inverter VRF Units Service Manual
294
Appendix 4 Electric Specifications

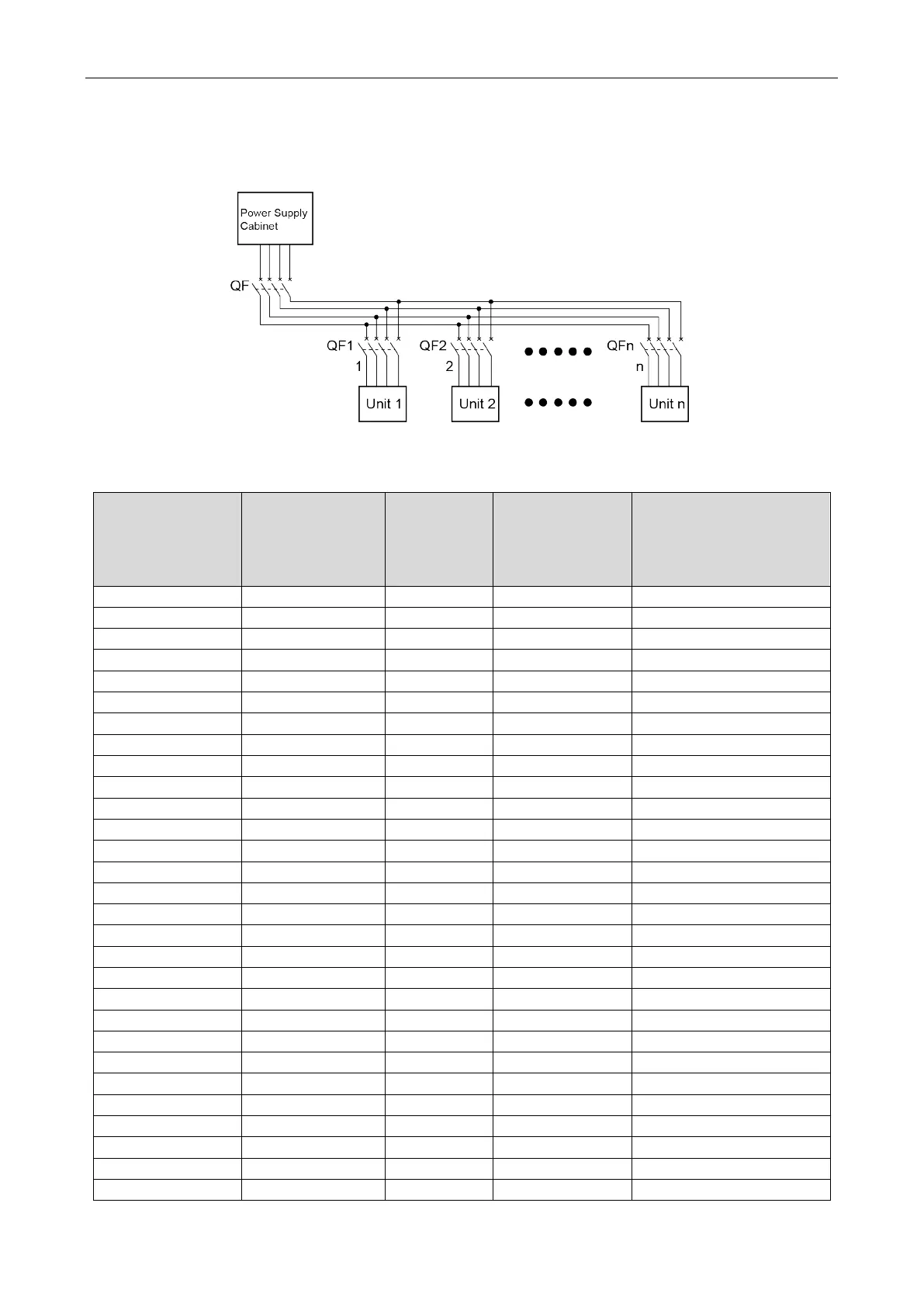

Every unit should have corresponding short-circuit and overload protection. And also a main switch
is required to control power supply or disconnection.
Please refer to the following table for the leakage protection switch and circuit breaker of outdoor
unit.
Model Combination method
Capacity of
circuit breaker
of each
combination
module (A)
Minimum cross-
sectional area of
grounding wire (mm
2
)
Recommended wire (cross-
sectional area) (mm
2
)
GMV-224WM/G-X
—
25
2.5
2.5×5
GMV-280WM/G-X
—
25
2.5
2.5×5
GMV-335WM/G-X
—
25
4.0
4.0×5
GMV-400WM/G-X
—
40
6.0
6.0×5
GMV-450WM/G-X
—
40
6.0
6.0×5
GMV-504WM/G-X
—
50
10.0
10.0×5
GMV-560WM/G-X
—
50
10.0
10.0×5
GMV-615WM/G-X
—
50
10.0
10.0×5
GMV-680WM/G-X
—
50
10.0
10.0×5
GMV-735WM/G-X
335+400
25+40
4.0+6.0
4.0×5+6.0×5
GMV-785WM/G-X
335+450
25+40
4.0+6.0
4.0×5+6.0×5
GMV-839WM/G-X
335+504
25+50
4.0+10.0
4.0×5+10.0×5
GMV-895WM/G-X
280+615
25+50
2.5+10.0
2.5×5+10.0×5
GMV-950WM/G-X
335+615
25+50
4.0+10.0
4.0×5+10.0×5
GMV-1015WM/G-X
400+615
40+50
6.0+10.0
6.0×5+10.0×5
GMV-1064WM/G-X
504+560
50+50
10.0+10.0
10.0×5+10.0×5
GMV-1119W M/G-X
504+615
50+50
10.0+10.0
10.0×5+10.0×5
GMV-1175WM/G-X
560+615
50+50
10.0+10.0
10.0×5+10.0×5
GMV-1230WM/G-X
615+615
50+50
10.0+10.0
10.0×5+10.0×5
GMV-1295WM/G-X
615+680
50+50
10.0+10.0
10.0×5+10.0×5
GMV-1360WM/G-X
680+680
50+50
10.0+10.0
10.0×5+10.0×5
GMV-1399WM/G-X
335+504+560
25+50+50
4.0+10.0+10.0
4.0×5+10.0×5+10.0×5
GMV-1455WM/G-X
280+560+615
25+50+50
2.5+10.0+10.0
2.5×5+10.0×5+10.0×5
GMV-1510WM/G-X
280+615+615
25+50+50
2.5+10.0+10.0
2.5×5+10.0×5+10.0×5
GMV-1565WM/G-X
335+615+615
25+50+50
4.0+10.0+10.0
4.0×5+10.0×5+10.0×5
GMV-1623WM/G-X
504+504+615
50+50+50
10.0+10.0+10.0
10.0×5+10.0×5+10.0×5
GMV-1679WM/G-X
504+560+615
50+50+50
10.0+10.0+10.0
10.0×5+10.0×5+10.0×5
GMV-1734WM/G-X
504+615+615
50+50+50
10.0+10.0+10.0
10.0×5+10.0×5+10.0×5
GMV-1790WM/G-X
560+615+615
50+50+50
10.0+10.0+10.0
10.0×5+10.0×5+10.0×5
