Gree GMV6 DC Inverter VRF Units Service Manual
252
Step 6: Removing compressors
Check the damage of compressors, including the number of damaged compressors, positions and
models.
After confirming the compressor information, remove the compressors and confirm the oil quality. If
the oil is clear with no impurity, it can be considered that the oil in the system is not polluted. When the
valves and oil passages of the unit are normal, only the compressors need to be replaced.

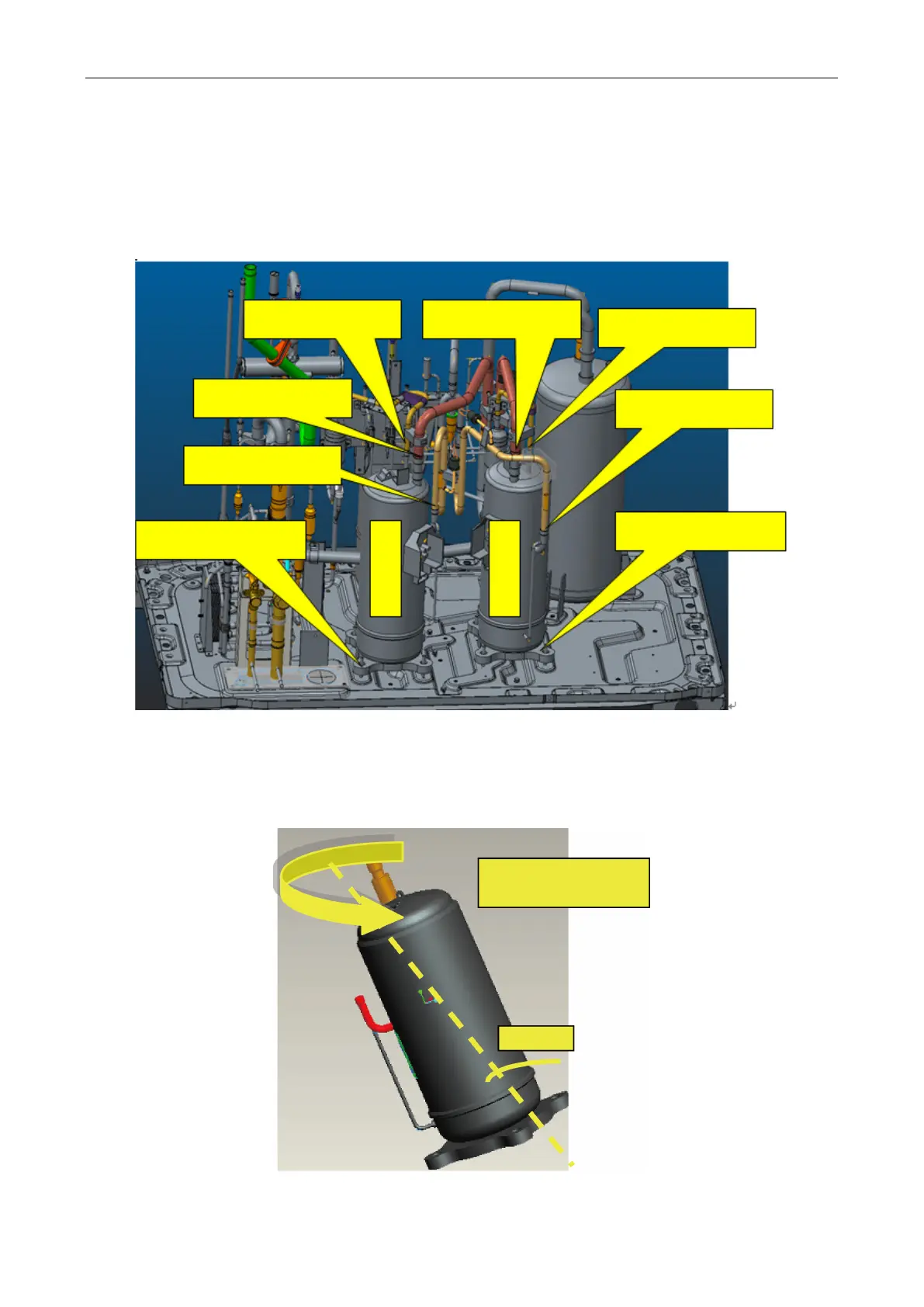

Vapor injection tube
welding point of
compressor 2
Suction pipe welding
point of compressor 1
Vapor injection tube
welding point of
compressor 1
Suction pipe welding
point of compressor 2
Air discharge pipe
welding point of
compressor 2
Remove the fixing bolt of
compressor 2
Remove the fixing bolt of
compressor 1
Air discharge pipe
welding point of
compressor 1
Compressor 2
Compressor 1
The procedure of checking oil quality is described as follows:
After removing a compressor, shake the compressor on a solid ground in the sway angle of
30 to 45 degrees to ensure that the pollutants deposited on the bottom of the compressor can be
poured out.
Remove the compressor
and shake it on solid
ground anticlockwise
30-45°
