Gree GMV-280WM/G-X

GMV DC Inverter VRF
10
No. Name
Pipe diameter
GMV-224WM/G-X
GMV-280WM/G-X
GMV-335WM/G-X
❶
Gas pipe
Φ19.05
Φ22.2
Φ25.4
❷
Liquid pipe
Φ9.52
Φ9.52
Φ12.7
❸
Pipe and wiring passing
hole (L×W)
196×69 196×69 196×69
❹
Hoist hole
Φ50
Φ50
Φ50

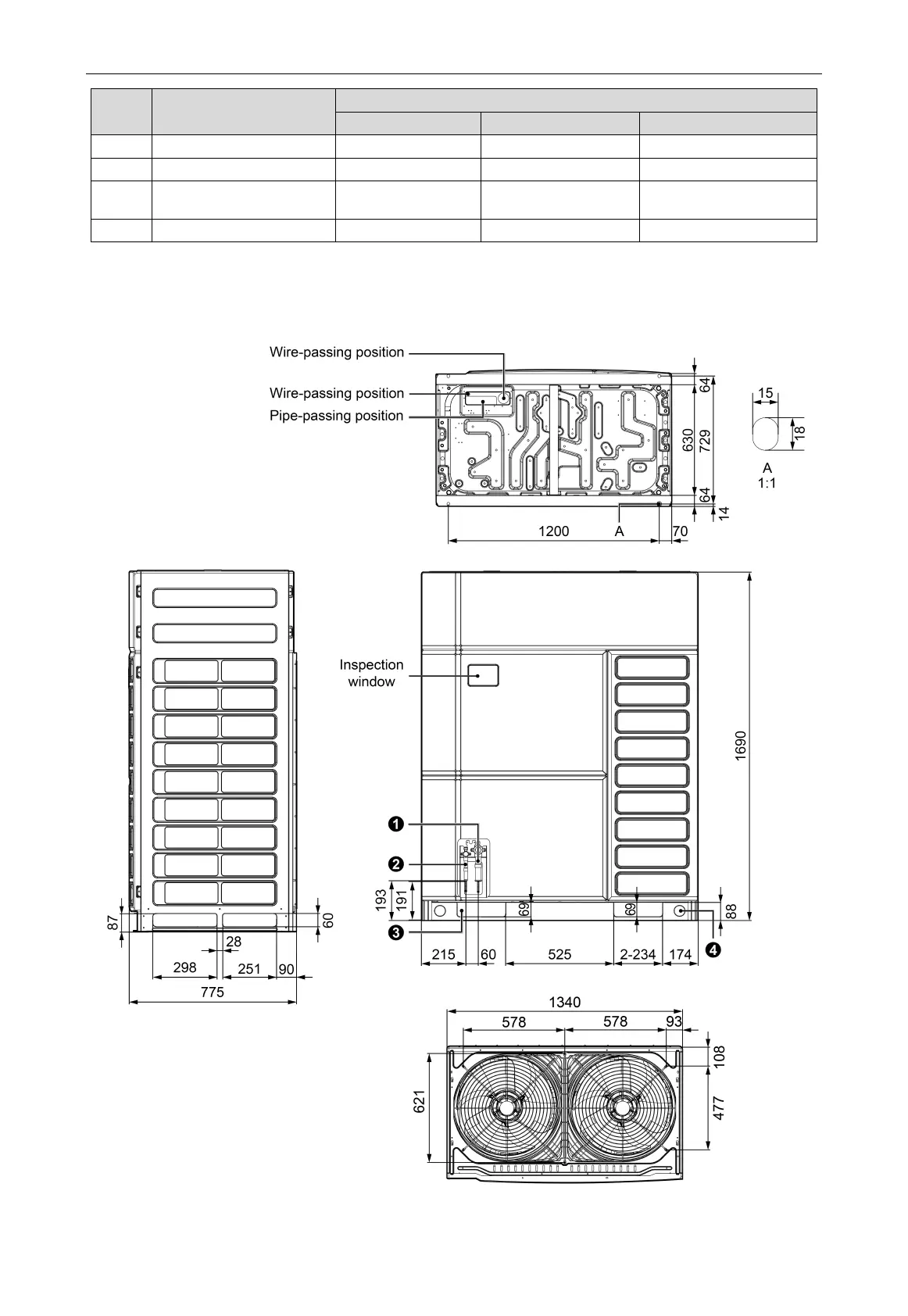

Outline and Physical Dimension of GMV-400WM/G-X
、
GMV-450WM/G-X
、
GMV-504WM/G-X
、
GMV-560WM/G-X
、
GMV-615WM/G-X
、
GMV-680WM/G-X unit.
Unit: mm
Fig.3.2.2
