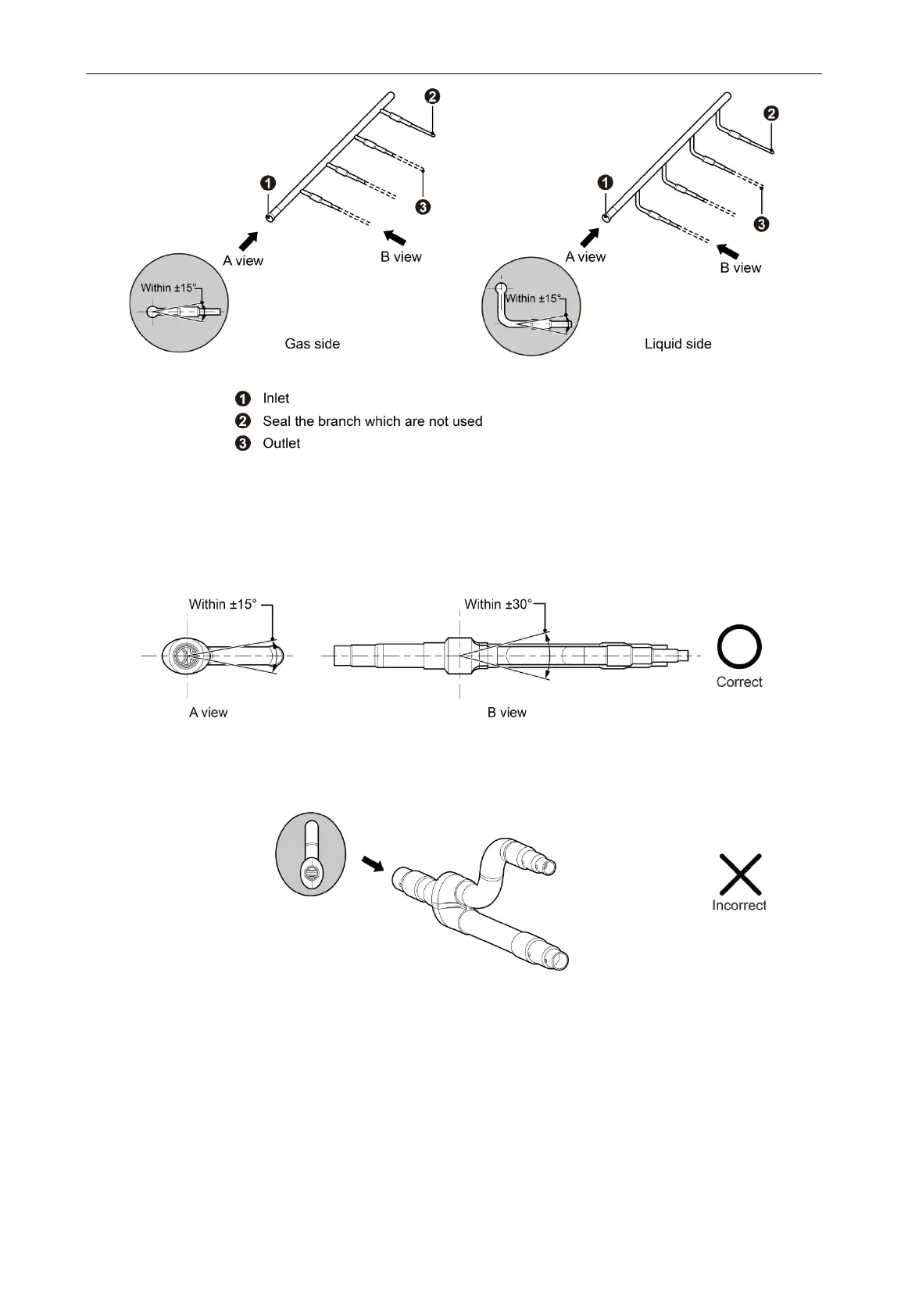

Fig.3.4.3
2) The installation of the branch pipe has the following requirements. Please install it
according to the angle shown in the figure below. Improper installation may lead to
malfunction of the outdoor unit.
Y-type manifold:
Fig.3.4.4
