GMV DC Inverter VRF
48
②
As for modular outdoor unit, if there are multiple outdoor unit modules, the indoor unit must
be connected to the last outdoor unit’s slave module (slave unit is set by SA8 of indoor unit
main board).
③
The communication line and the power cord must be routed separately to avoid interference.
④
The communication line must be of suitable length and must not be connected.
⑤
The indoor unit must be connected in series, and the last indoor unit must be connected to
the communication matching resistor (provided in the outdoor unit parts list).
⑥
Please refer to the relevant manual for the centralized controller wiring method and settings.

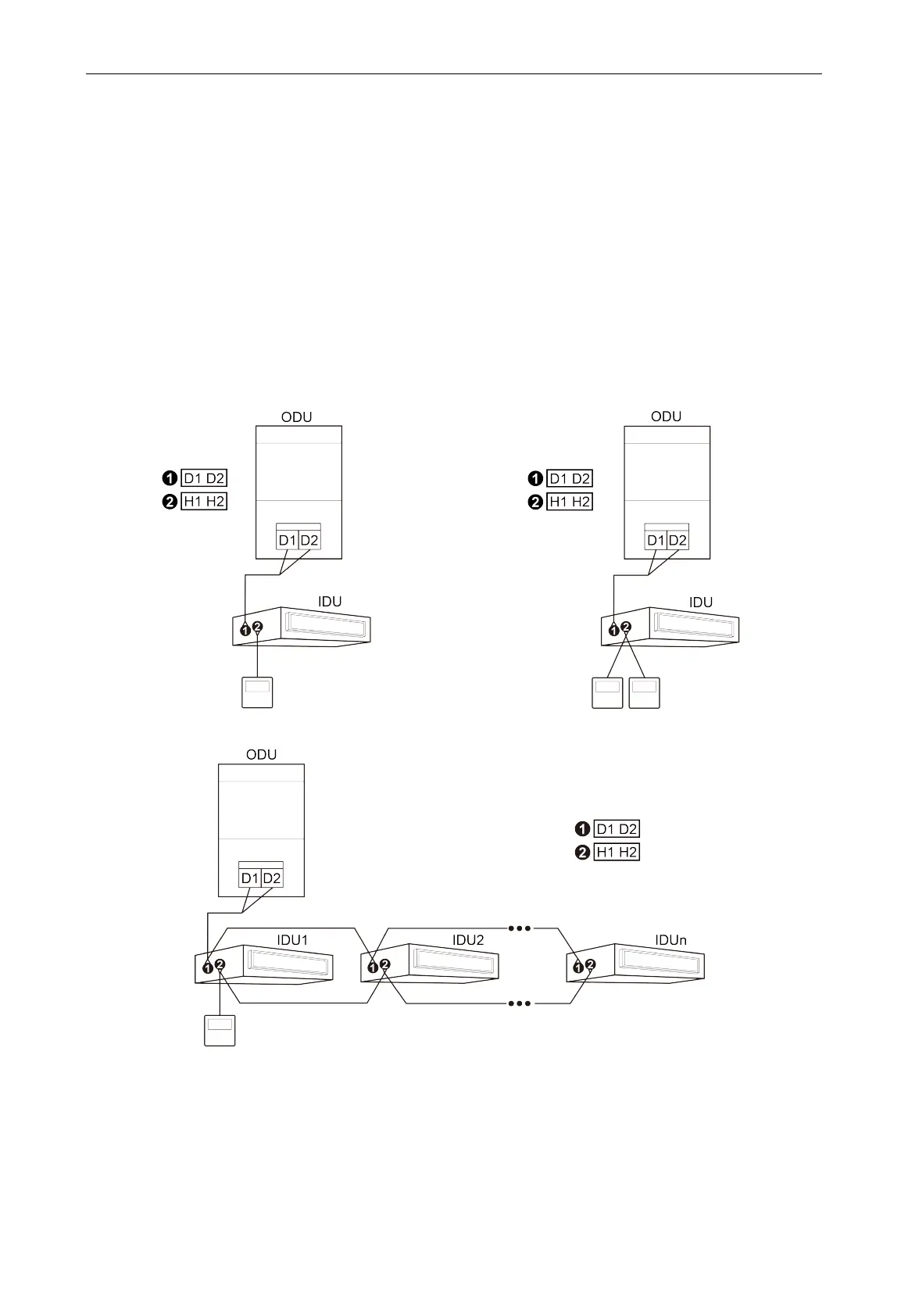

3.9.6 Communication Connection between Indoor Unit and Wired Controller
There are four types of connection between the indoor unit and wired controller, as shown in the
following figure:
Fig.3.9.9 One wired controller controls one IDU Fig.3.9.10 Two wired controllers control one IDU
Fig.3.9.11 One wired controller control multiple IDU
