3.5.4 Model: GMV-450WM/E-X, GMV-504WM/E-X, GMV-560WM/E-X,
GMV-615WM/E-X

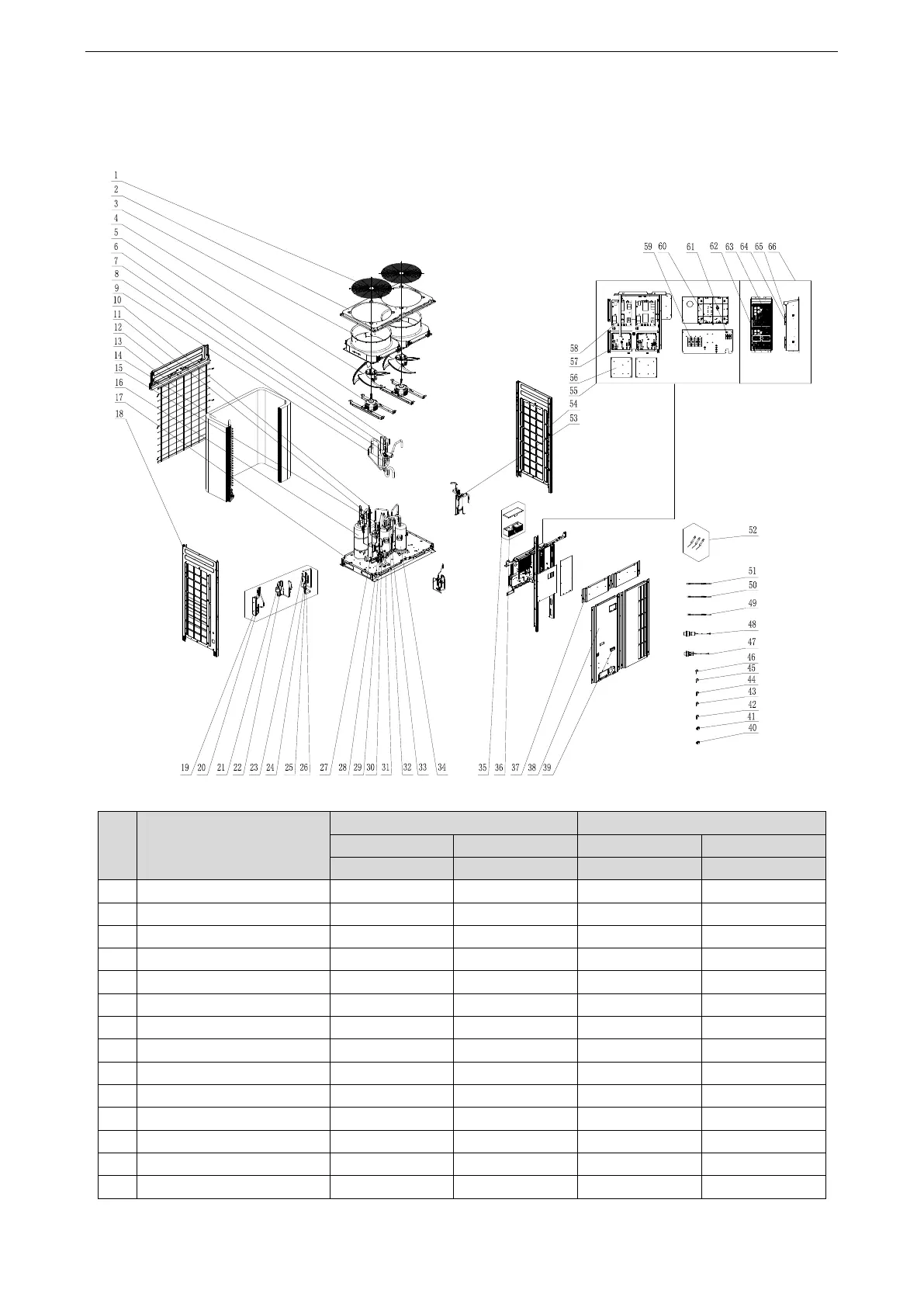

Exploded View:
Parts List:
No.
Name of part
GMV-450WM/E-X
GMV-504WM/E-X
Product Code
CN851W1830
Product Code
CN851W2230
Part code
Quantity
Part code
Quantity
1
Rear Grill
01574100002
2
01574100002
2
2
Coping
01264100006P
1
01264100006P
1
3
Diversion Circle
10474100002
2
10474100002
2
4
Axial Flow Fan
10434100002
2
10434100002
2
5
Fan Motor
15704124
2
15704124
2
6
Nozzle for Adding Freon
06120012
2
06120012
2
7
One way Valve
07335210
1
07335210
1
8
4-way Valve
43000412
1
43000412
1
9
Filter
07218603
1
07218603
1
10
Electromagnetic Valve
43000054
4
43000054
4
11
Strainer
07415200002
6
07415200002
6
12
Upper Cover Plate (back)
01264100005P
1
01264100005P
1
13
Rear Grill
016001500381
1
016001500381
1
14
Condenser Assy
0112410016901
1
01100250016201
1
