GREE DC Inverter Multi VRF System II Service Manual
126

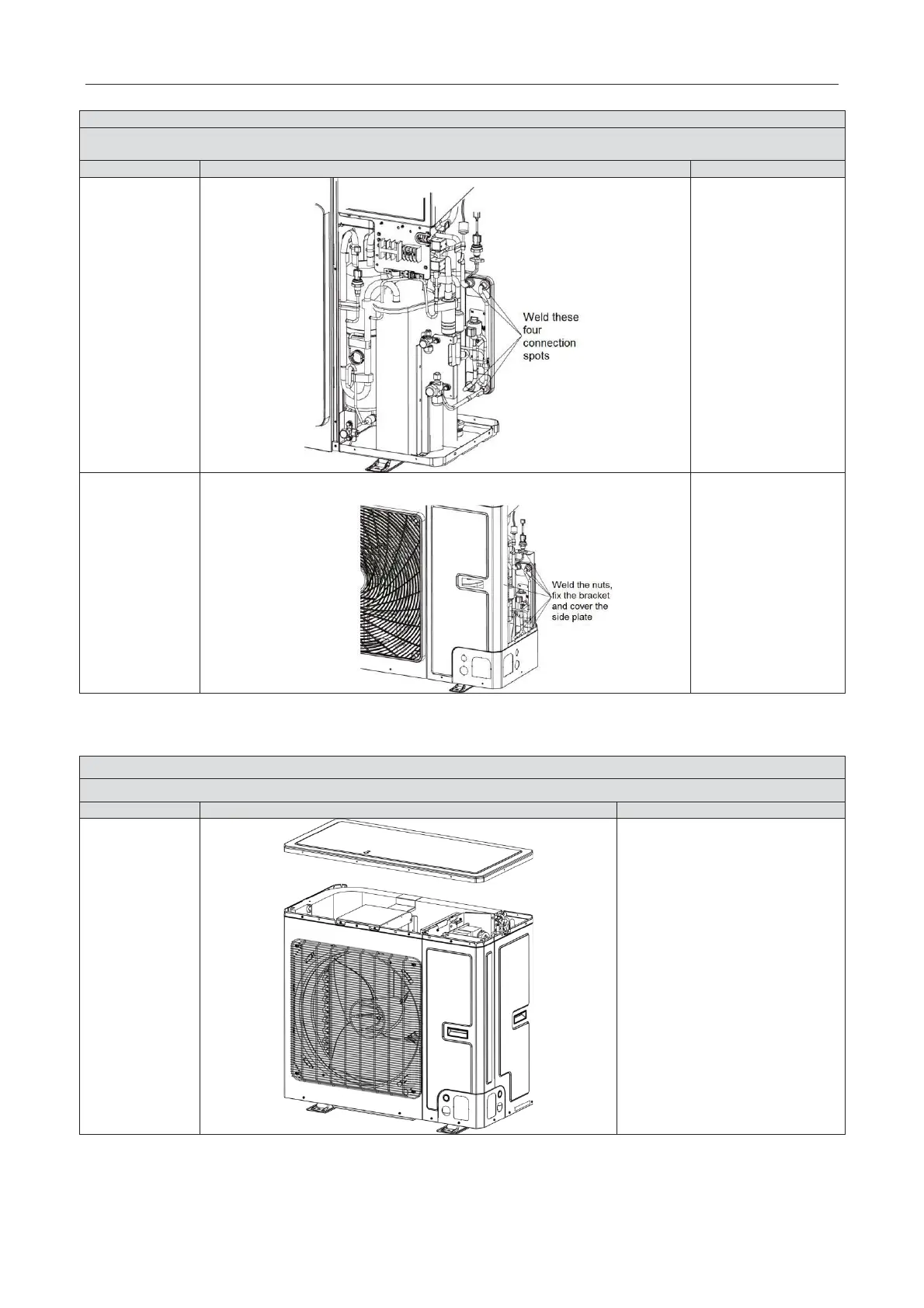

Removal operation for plate heat exchanger
Remark: Before removing the plate heat exchanger, please make sure that there’s no refrigerant inside the pipeline of
system and disconnect the power
Process
Operation Instruction
3. Weld those 4
conne
ction
spots on the
plate heat
exchanger, and
then pull out
plate heat
exchanger
●Weld those 4
connection spots on
the plate heat
exchanger, and then
pull out the
connection pipe.
Note: During welding
process, do not let
flame burn out other
parts
4. Replace new
plate heat
exchanger
● Weld the pipe
connected with plate
heat exchanger
Note: During welding
process, do not let
flame burn out other
parts
5.2.3 GMV-141WL/C-T series unit
Removal operation for panel
Remark: Before removing the panel, please make sure that the unit is disconected with the power
Process
Operation Instruction
1.Remove top
cover
● Loose the screws fixing the top
cover with screwdriver
● Hold the top cover upwards
and then put it on the floor flatly
