5) Model: GMV-120WL/A-XǃGMV-140WL/A-XǃGMV-160WL/A-X

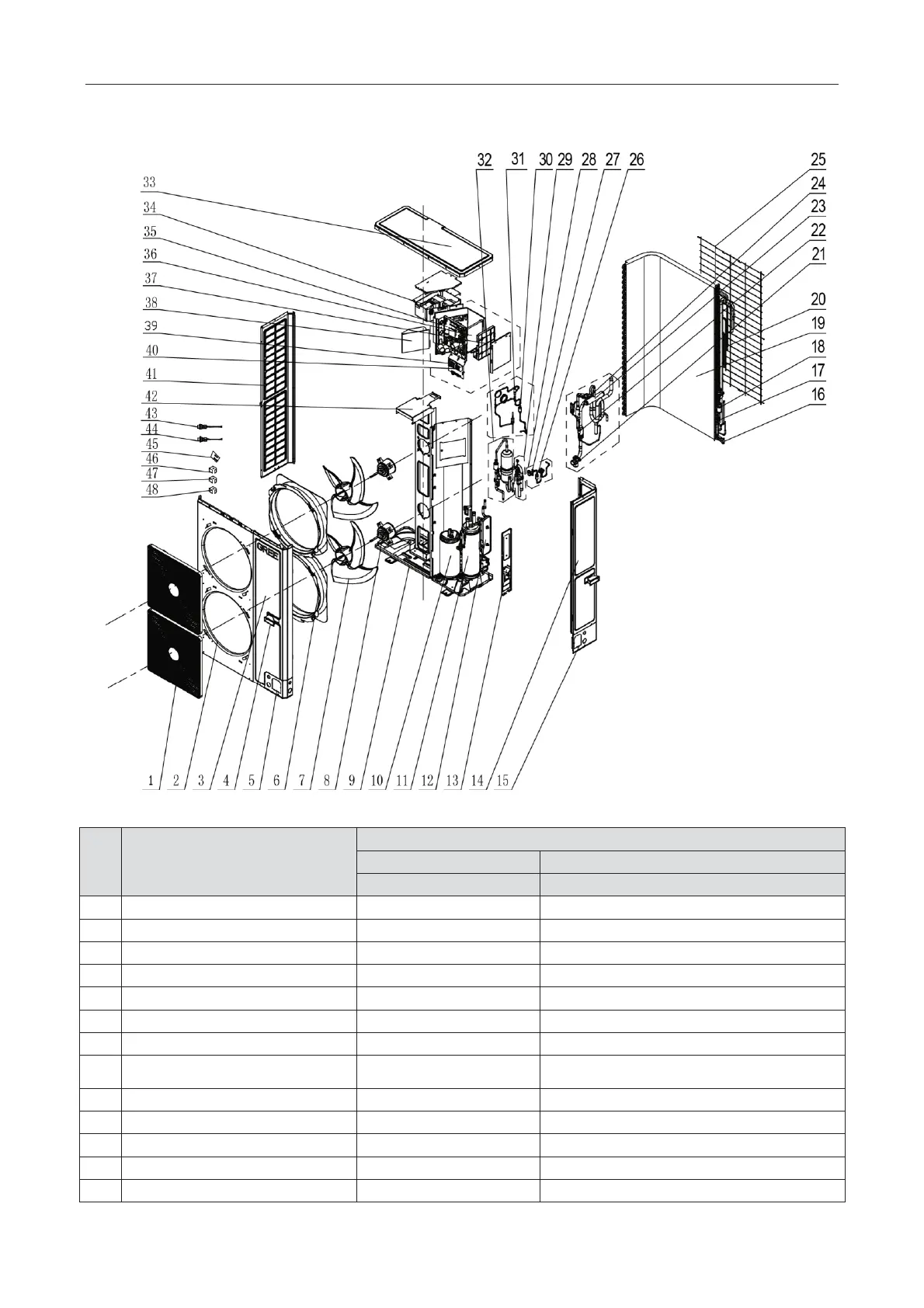

Exploded view
Parts list
NO.
Name of Part
GMV-120WL/A-X
ǃ
GMV-140WL/A-X
ǃ
GMV-160WL/A-X
Product Code
CN850W0260 / CN850W0250 / CN850W0240
Part Code
Quantity
1
Front Grill
26904100026
2
2
Cabinet
01514100005
1
3
Front Side Plate
01314100012P
1
4
Handle
26235253
2
5
Front Connection Board
01344100002P
1
6
Diversion Circle
10474100001
2
7
Axial Flow Fan
1043410000301
1
8
Fan Motor
15704100013
1570410001301
2
9
Chassis Assy
0119410000301P
1
10
ompressor and Fittings
00204100018
1
11
Gas-liquid Separator
07424100014
1
12
Plate-type Heat Exchanger Assy
00904100013
1
13
Supporter
01804100312
1
