Gree GMV-H224WL/A-X

GREE DC Inverter Multi VRF System II Service Manual
165
6) Model: GMV-H280WL/A-X,GMV-280WL/C-X

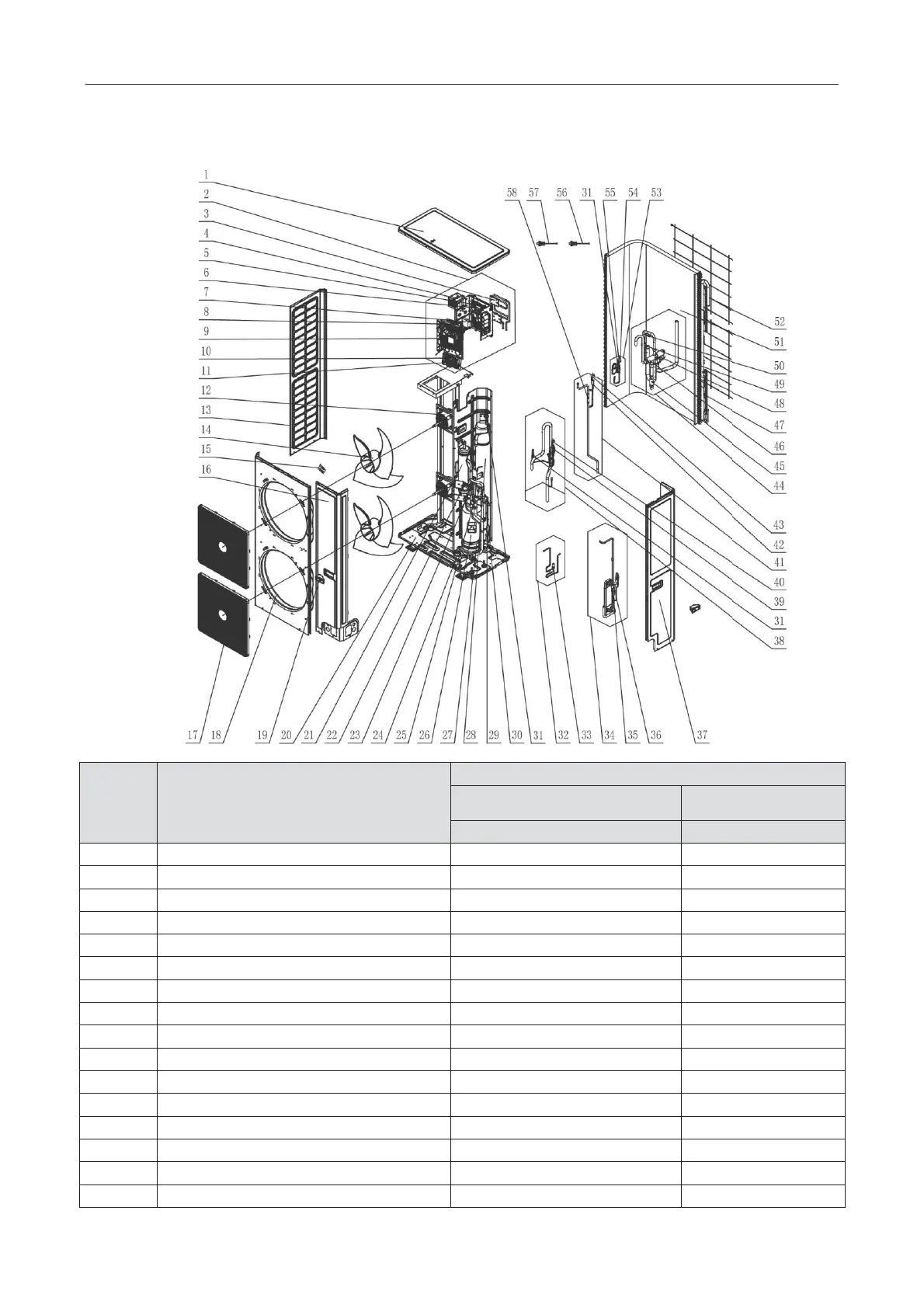

Exploded view
Parts list
NO.
Name of Part
GMV-H280WL/A-X,GMV-280WL/C-X
Product Code
CN850W0340
CN850W0520
Part Code
Quantity
1
Coping
01264100052P
1
2
Electric Box Assy
01394100496
1
3
Radiator
49018000083
2
4
Reactor
4313017401
1
5
Main Board
30223000072
1
6
Rectifier
46010604
1
7
Phase Reverse Protector
32214101
1
8
Filter Board
30223000025
1
9
Main Board
30226000066
1
10
Terminal Board
42011043
1
11
Terminal Board
42018000026
1
12
Brushless DC Motor
15704100010
2
13
Left Side Plate
01314100090P
1
14
Axial Flow Fan
10434100008
2
15
Sensor Sub-Assy
39008000121G
1
16
Front Side Plate
01314100091P
1
