OPERATING INSTALLATION MANUAL FOR AHU-KIT UNIT
17
② Keep the thermistor and air handling unit in good contact. Put the top of the thermistor on
the air handling unit, because the top of thermistor is the most sensitive part. Please
fixing the thermistor on the horizontal plane of copper tube (within ±30°), and make them
close together.

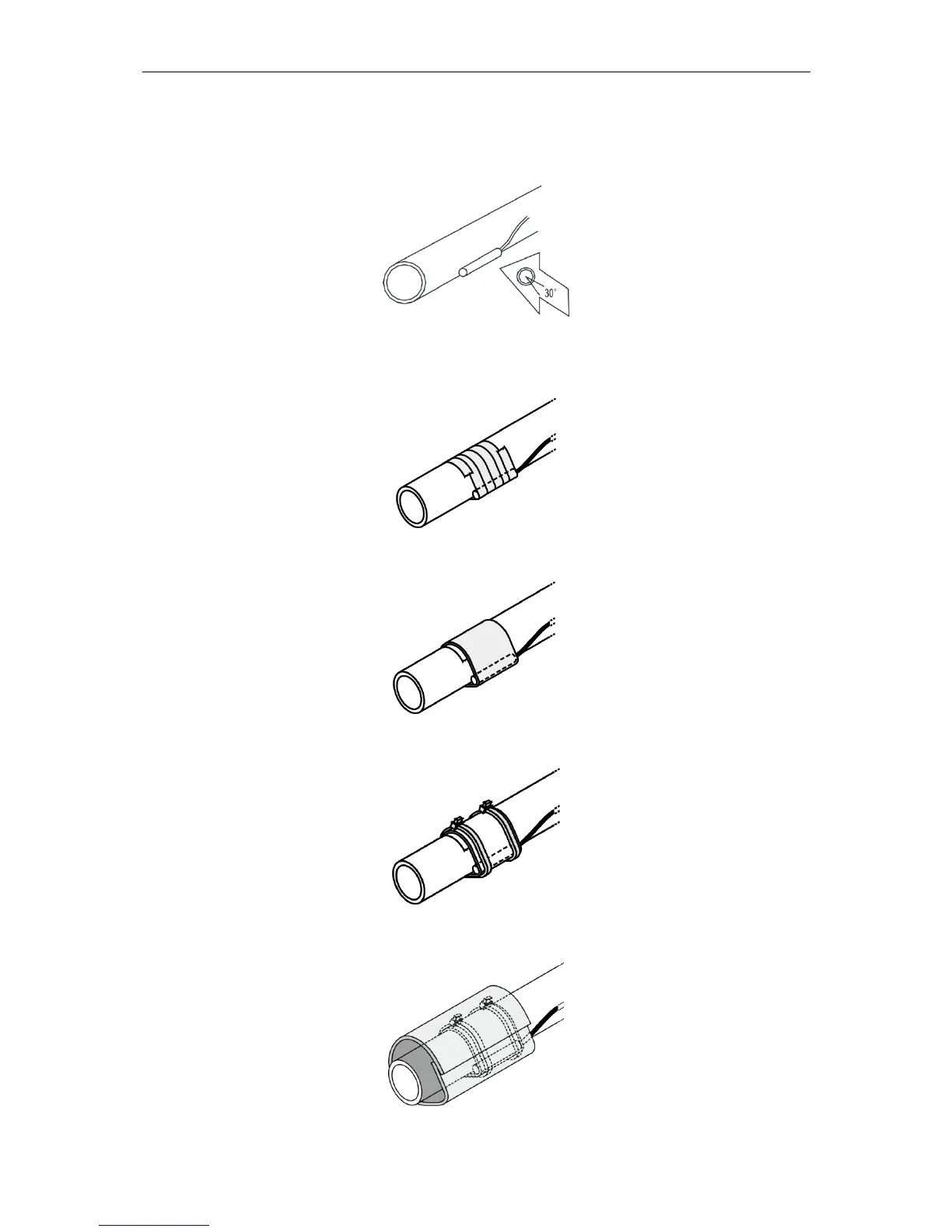

Fig.4.5.1.3
(1) Fix the thermistor with insulating aluminum tape in order to ensure good heat
transference.
Fig.4.5.1.4
(2) Cover the thermistor with rubber belt to prevent looseness of temperature sensor.
’
Fig.4.5.1.5
(3) Use two wire ties to bind the thermistor securely.
Fig.4.5.1.6
(4) Wrap the thermistor with insulating trip.
Fig.4.5.1.7
