Multi Variable Air Conditioners Ducted Type Indoor Unit
7
power cord to avoid overload, which may cause accident.
③ Above selection requirements: Power cord size is based on BV single-core wire (2~4pc)
at 40°Cambient temperature when laying across plastic pipe. Air switch is D type and used
at 40°C. If actual installation condition varies, please lower the capacity appropriately
according to the specifications of power cord and air switch provided by manufacturer.
④ If the supply cord is damaged, it must be replaced by the manufacturer or its service agent
or a similarly qualified person in order to avoid a hazard.
(2) Install cut-off device near the unit. The minimum distance between each stage of cut-off
device should be 3mm (The same for both indoor unit and outdoor unit).
4 Installation Instructions
4.1 Installation of Indoor Unit
4.1.1 Outline Dimension and Installation Spots
Equip with an inspection hatch after lifting the unit. For the convenience of maintenance, the
service port should be on one side of the electric box and below unit’s lower level.

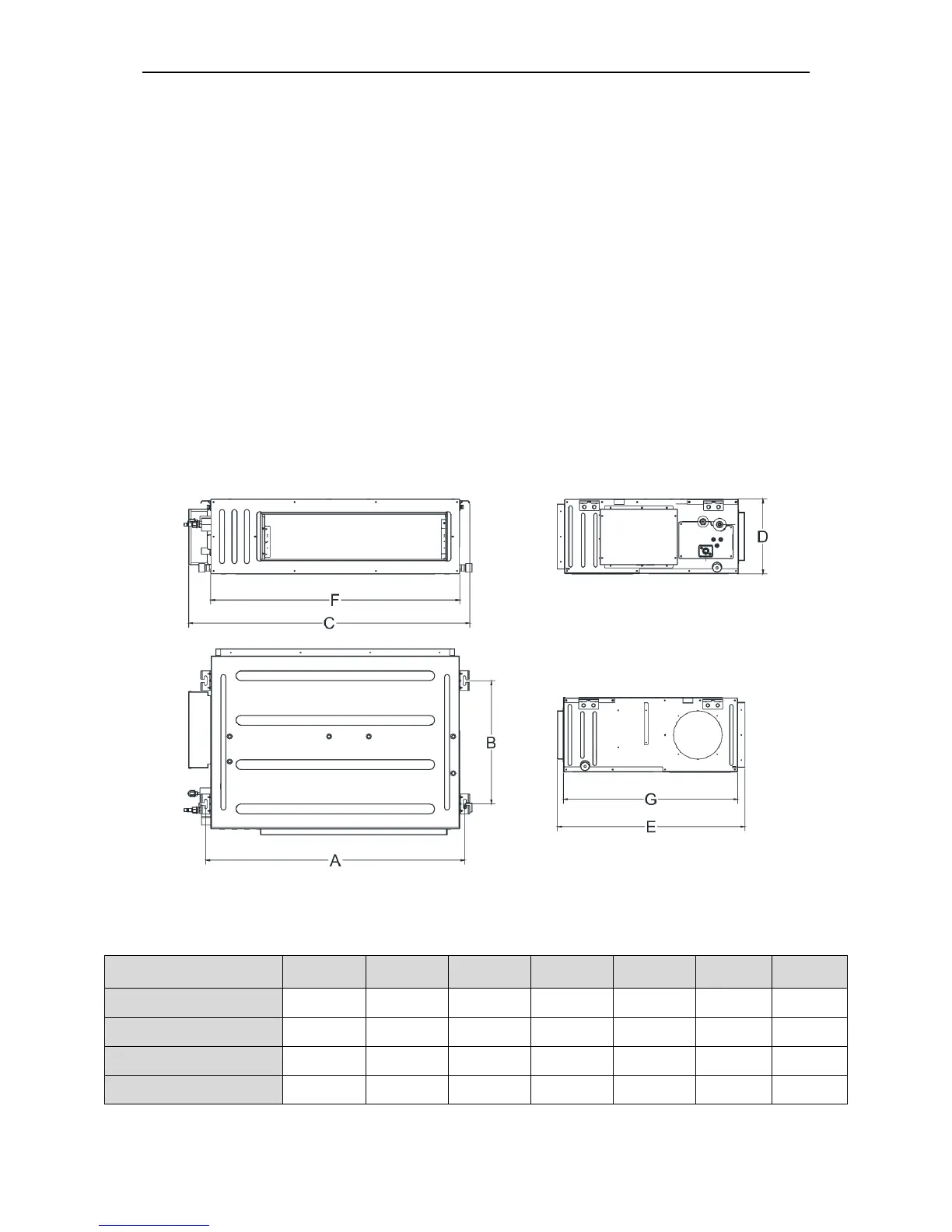

Fig 4.1.1
Below are dimensions of A, B, C, etc. for different models:
Unit: mm
