10

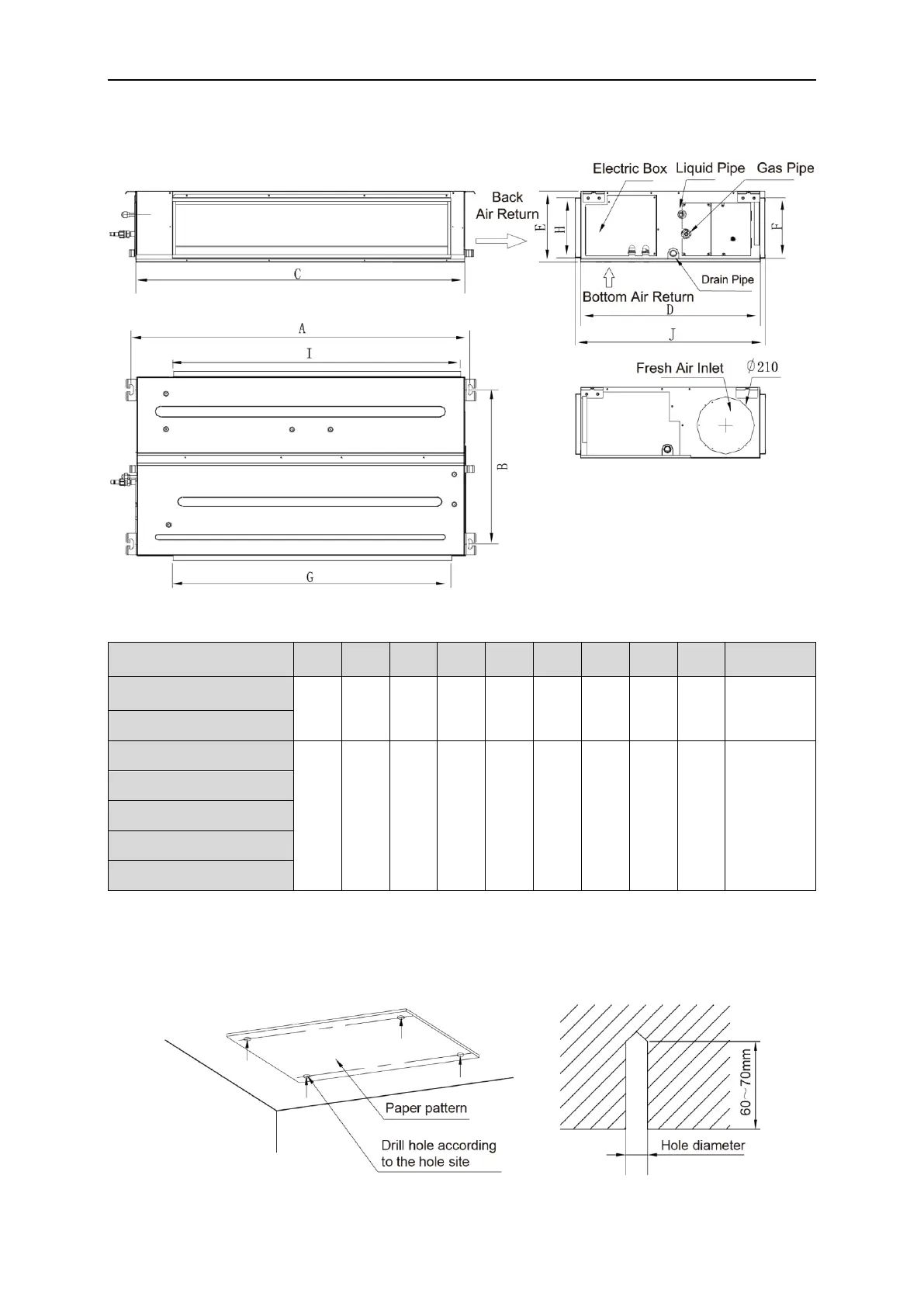

(2) Below are the outline dimension applicable to indoor units of
GMV-ND71PLS/A-T~GMV-ND140PLS/A-T.
Fig 4.1.2
Below are dimensions of A, B, C, etc. for different models: Unit:mm
Model
A
B
C
D
E
F
G
H
I
J
GMV-ND71PLS/A-T
1236
565
1200
655
260
222
1016
220
1050
695
GMV-ND80PLS/A-T
GMV-ND90PLS/A-T
1379
565
1340
655
260
207
1153
220
1188
716
GMV-ND100PLS/A-T
GMV-ND112PLS/A-T
GMV-ND125PLS/A-T
GMV-ND140PLS/A-T
(1) Drill bolt holes and install bolts
1) Stick the reference cardboard on the installation position; drill 4 holes according to the
hole site on the cardboard as shown in fig 4.1.3; diameter of drilling hole is according
to the diameter of expansion bolt and the depth is 60-70mm, as shown in fig 4.1.4.
Fig 4.1.3 Fig 4.1.4
