Gree GMV-ND22PLS/A-T User Manual

Multi Variable Air Conditioners Duct Type Indoor Unit
18

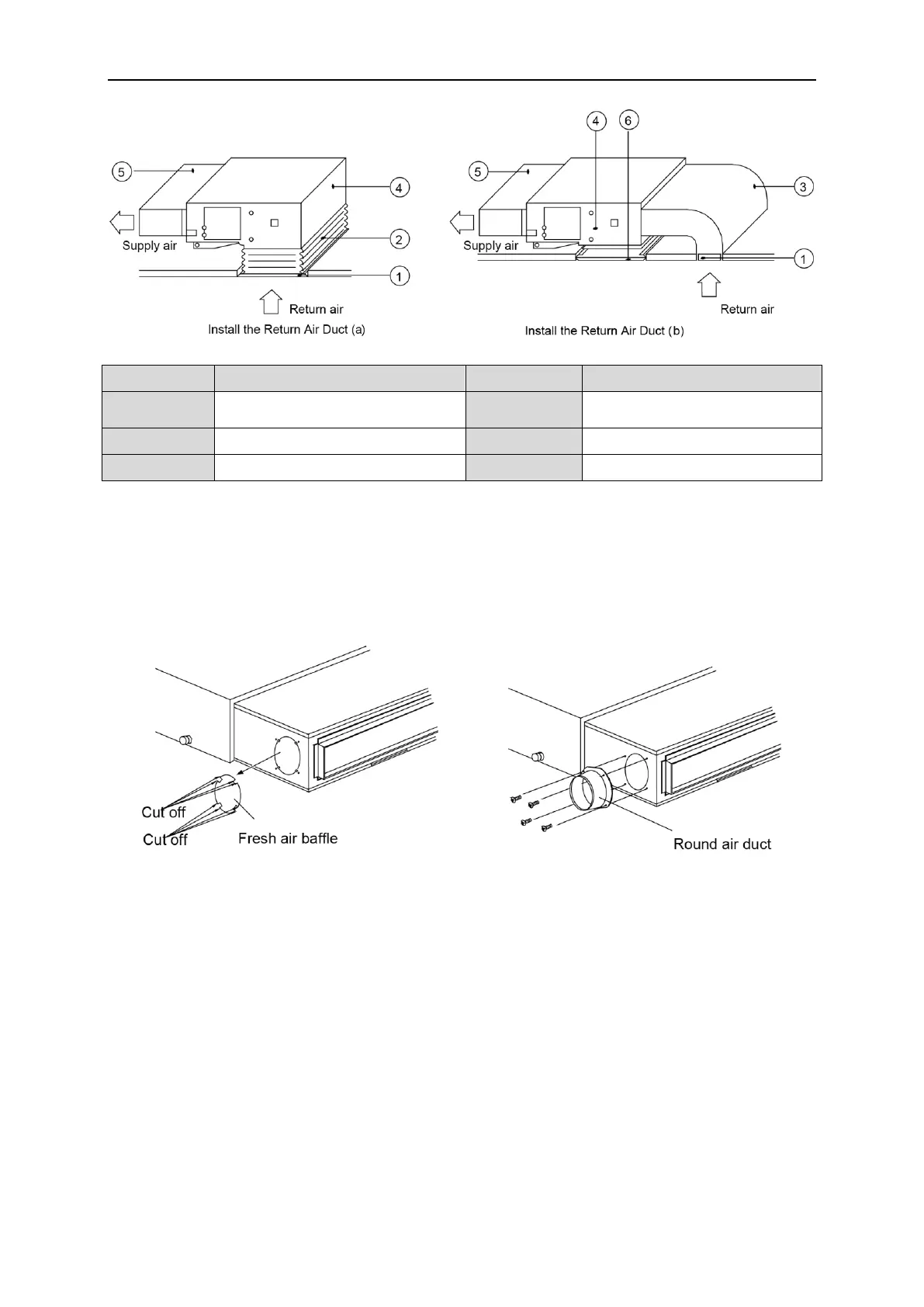

Fig 4.4.8
No.
Name
No.
Name
1
Return Air Inlet (with filter)
4
Indoor unit
2
Canvas Duct
5
Supply Air Duct
3
Return Air Duct
6
Grille
4.4.4 Installation of the Fresh Air Pipe
(1) When the fresh air pipe is needed to be connected, cut the fresh air baffle as Fig 4.4.9.
Plug up the gap of the fresh air baffle by sponge if the fresh air duct is not be used.
(2) Install the round flange so that the fresh air duct can be connected as Fig 4.4.10.
(3) Sealing and heat preservation should be done for both the air pipe and round flange pipe.
(4) Fresh air should be treated via the air filter.
Fig 4.4.9 Fig 4.4.10
4.5 Installation of Wired Controller
Please refer to User Manual of Wired Controller for the installation details.
Note: When installation is finished, the unit must be tested and debugged before operation.
Please refer to Instruction Manual of ODU for auto addressing and debugging details.
