Gree GMV-ND28C/A-T Service Manual

MULTI VRF-Ⅱ INDOOR UNIT SERVICE MANUAL EUROPEAN/LATIN AMETICA (R410A)
193
NO.
Model
GMV-NX224P/A(X2.0)-M
Qty.
Product Code
CM800N3620
Part Name
Part Code
16
Filter
07415210
1
17
Strainer
0741410000601
1
18
Electronic Expansion Valve
07334390
1
19
Evaporator Assy
1024100064
1
20
Filter Sub-Assy
11129070
2
21
Air Guard
01354111
1
22
Cover Plate Sub-Assy of Evaporator
01094109
1
23
Left Side Plate Assy
01314208
1
24
Hook
02205302
4
25
suspending rack
01729165
1
26
Top Cover Assy
01259106
1
27
place with a draught of Connection board
01389079
1
28
place with a draught of Connection board
01389077
1
29
Rear beam sub-assy
01779108
1
30
Motor Retaining Plate Sub-Assy
01845309
1
31
Fan Motor
15018304
1
32
Motor
15009059
1
33
Taper Sleeve
10548211
1
34
Belt Wheel
10548157
1
35
Taper Sleeve
10548218
1
36
Belt Wheel
10548150
1
37
Belt
76318317
2
38
Electric Expand Valve Fitting
4304413219
1
39
Sensor sub-assy
39004165G
1
40
Display Board
30296106
1
Above data is subject to change without notice,pls reference the SP in global service website.

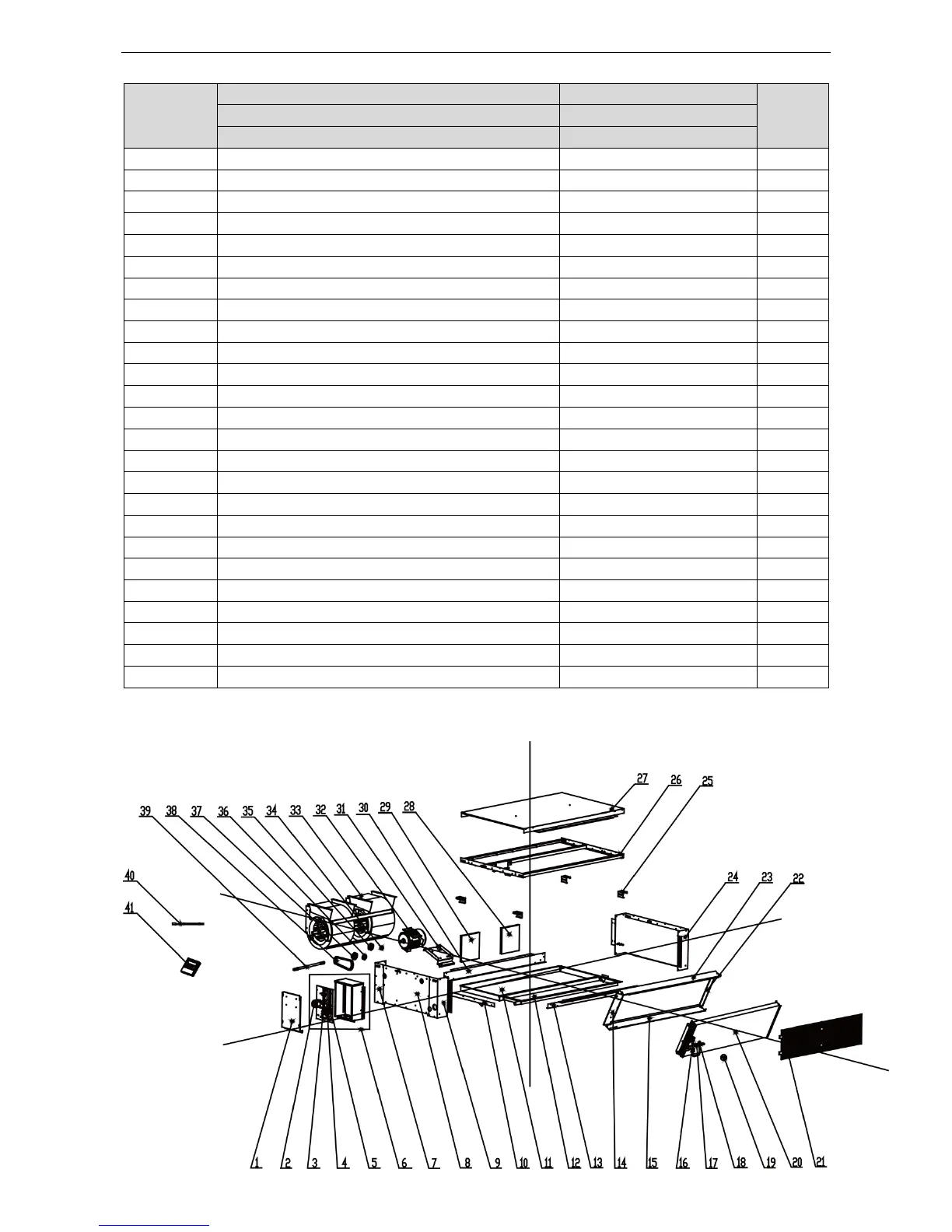

Exploded View of GMV-NX280P/A(X2.5)-M、GMV-NX280P/A(X3.0)-M：
