5.11 Air Handler type Indoor Unit

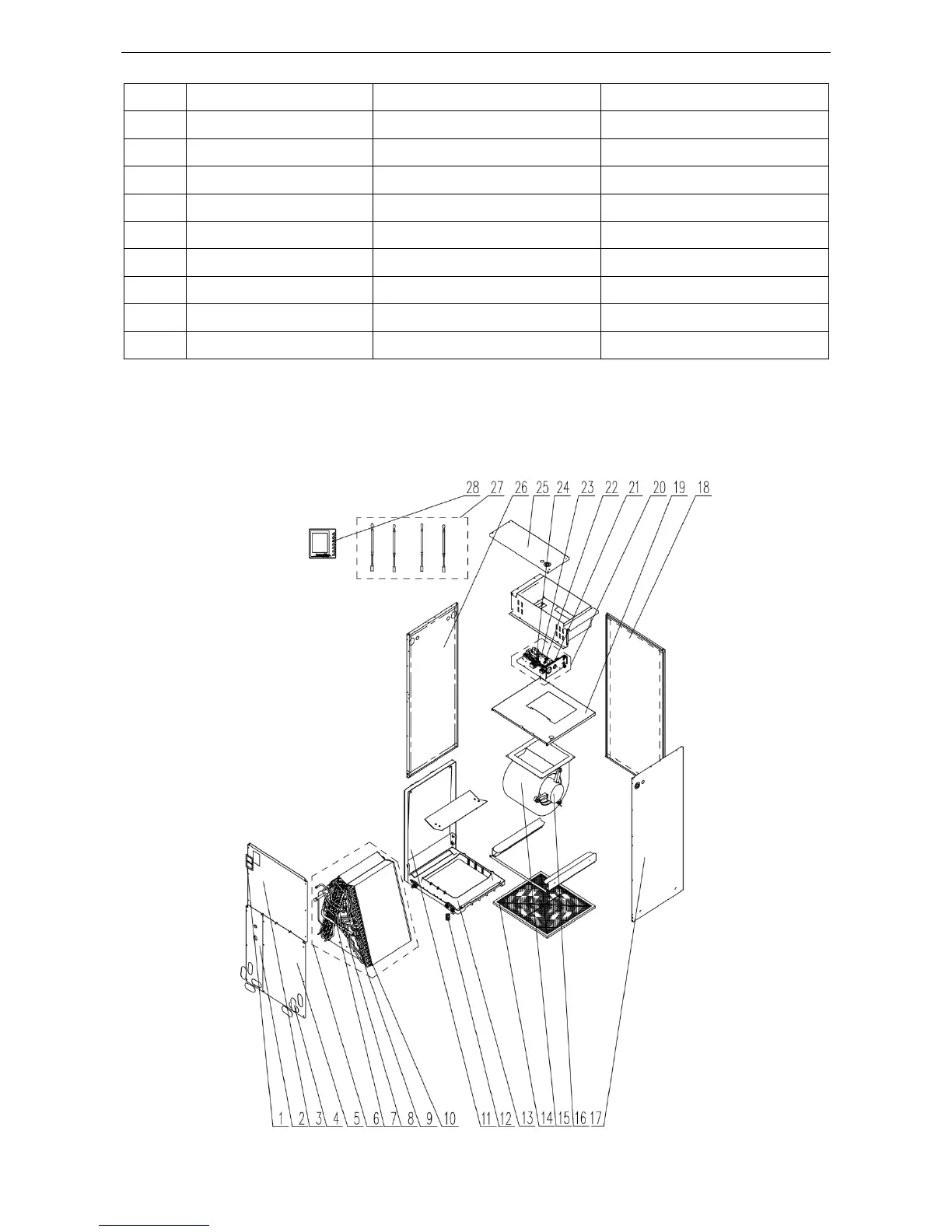

Exploded View of GMV-NR71A/A-D、GMV-NR90A/A-D、GMV-NR100A/A-D、GMV-NR112A/A-D、GMV-NR140A/A-
D：
19
Electric Box Cover
` 01425200023
1
20
Closing Plate Sub-Assy
` 01494100010
1
21
Right Side Plate Assy
` 01315200053
1
22
Electronic Expansion Valve
` 07334466
1
23
Air Outlet Frame Assy
` 01374100059
1
24
Top Cover Board Assy
` 0126520009201
1
25
Hook
` 02112446
2
26
Hook
` 01344100034
2
27
Display Board
` 30296000040
1
28
Sensor Sub-assy
` 39004168G
1
