Multi Variable Air Conditioners One-way Cassette Type Indoor Unit
8
4 Installation Instructions
4.1 Indoor unit installation

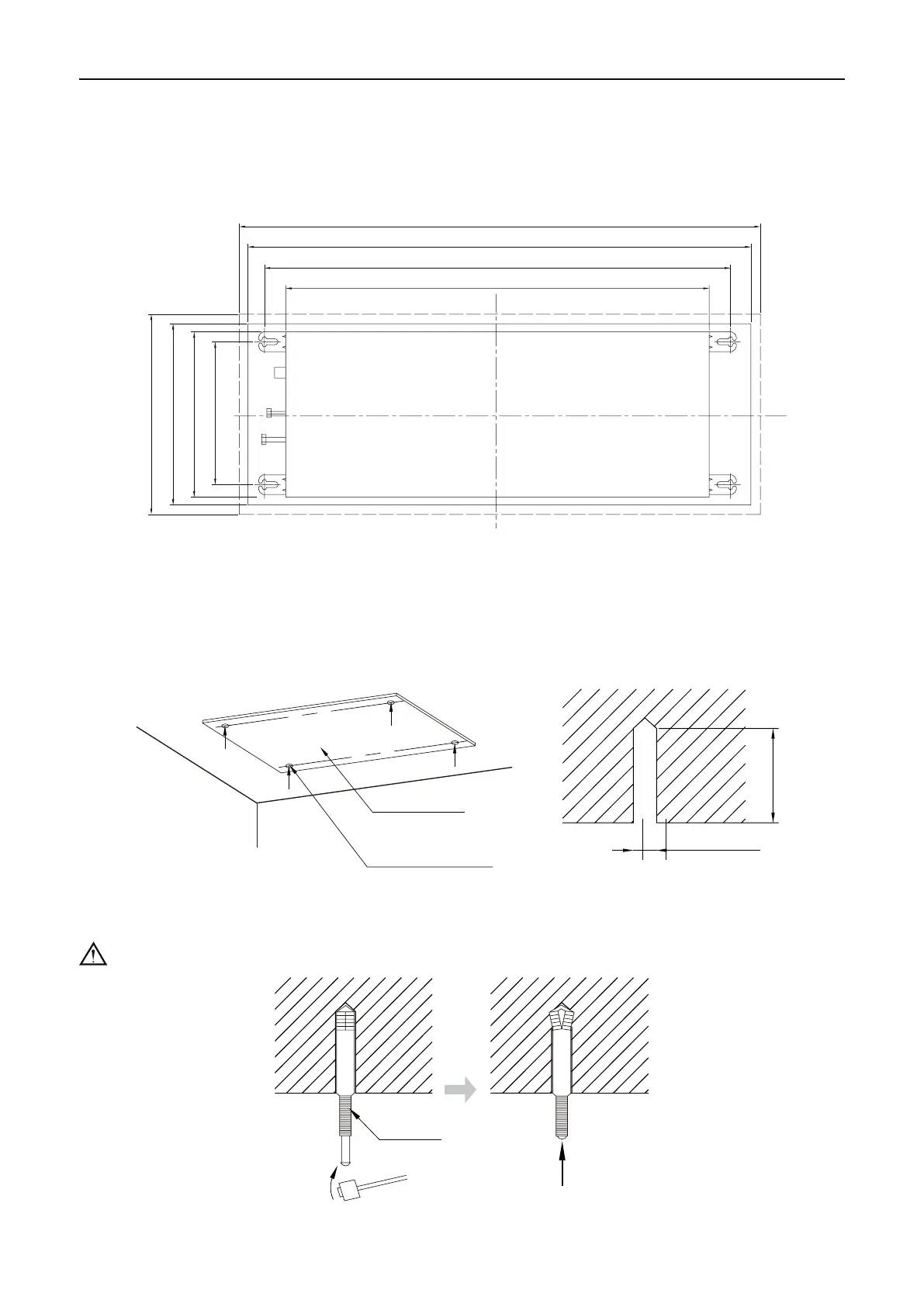

4.1.1 Ceiling opening Dimension and suspension bolt position.
987(main body)
1027(distance of lifting screw)
1115(ceiling outlet）
1200(decorative panel)
261(distance of lifting screw）
385(main body)
415(ceiling outlet)
456(decorative panel)
Unit：mm
Fig 4.1.1
4.1.2 Suspend the indoor unit
(1) Drill bolt holes and install bolts
1) Stick the reference cardboard on the installation position; drill 4 holes according to the hole
site on the cardboard as shown in fig 4.1.2; diameter of drilling hole is according to the
diameter of expansion bolt and the depth is 60-70mm, as shown in g 4.1.3.
Paper pattern
Hole diameterDrill hole according
to the hole site
60～70mm
Fig 4.1.2 Fig 4.1.3
2) Insert the M10 expansion bolt into the hole and then knock the nail into the bolt, as shown in
g 4.1.4.
Note: The length of bolt depends on the installation height of the unit, bolts are eld supplied.
Expansion bolt
Fig 4.1.4
