Multi Variable Air Conditioners Floor and Ceiling Type Indoor Unit

4 Installation Instructions

4.1 Indoor Unit Installation

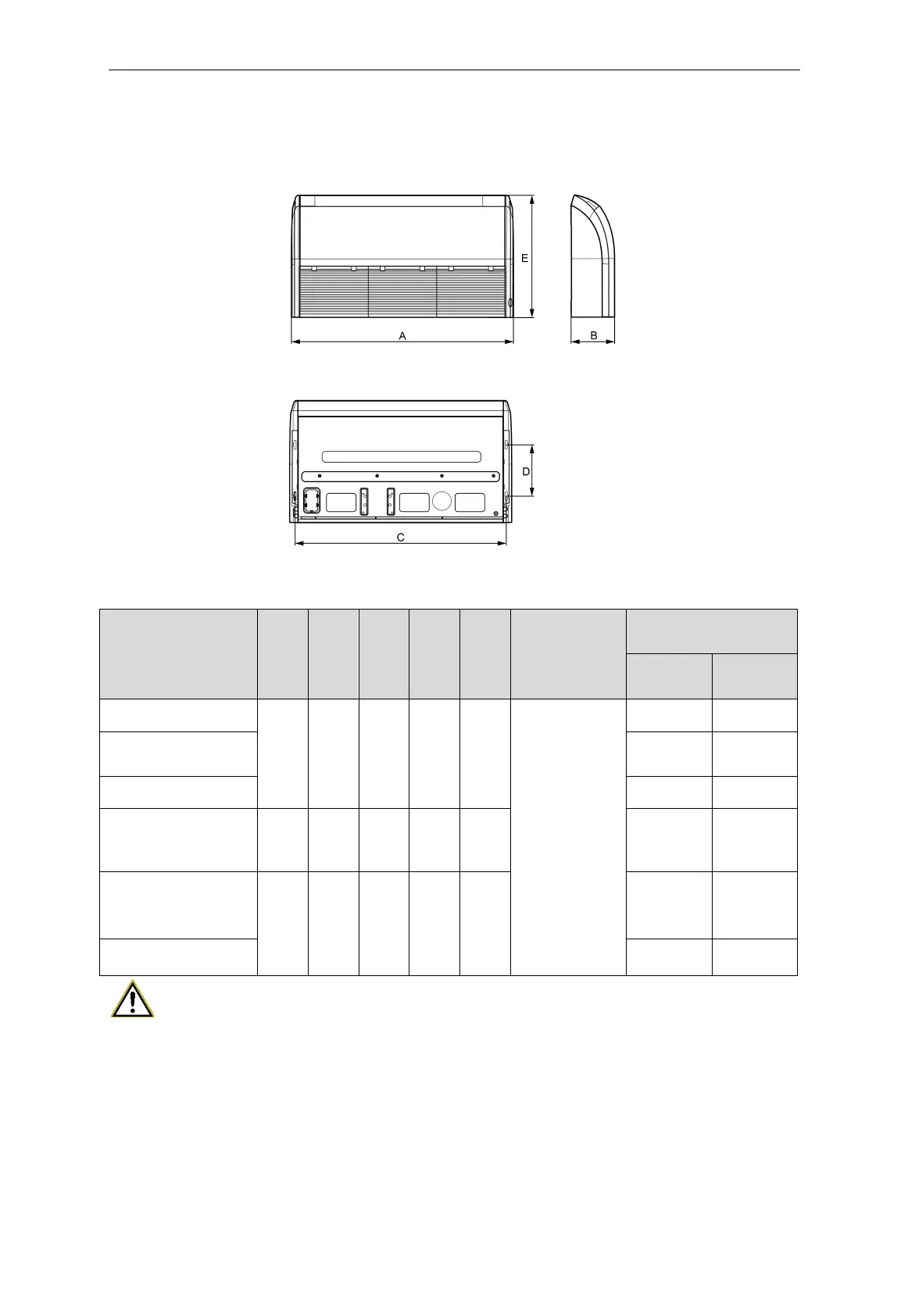

4.1.1 Indoor Unit Dimension and Suspension Bolt Position

Fig.4.1.1

Below are dimensions of A, B, C, etc. for different models:

Models

(mm)

Drainage

pipe(Outer

Diameter ×

wall thickness)

(mm)

Outer diameter of

connection pipe(mm)

Liquid

pipe

Gas pipe

GMV-ND28ZD/B-T

870 235 812 280 665

Ф17×1.75

6.35 9.52

GMV-ND36ZD/B-T

GMV-ND50ZD/B-T

6.35 12.7

GMV-ND56ZD/B-T 9.52 15.9

GMV-ND63ZD/B-T

GMV-ND71ZD/B-T

GMV-ND90ZD/B-T

1200 235 1142 280 665 9.52 15.9

GMV-ND112ZD/B-T

GMV-ND125ZD/B-T

GMV-ND140ZD/B-T

1570 235 1512 280 665

9.52 15.9

GMV-ND160ZD/B-T 9.52 19.05

Important:

The drilling work must be carried out by qualified personnel.
