Multi Variable Air Conditioners Floor and Ceiling Type Indoor Unit
19

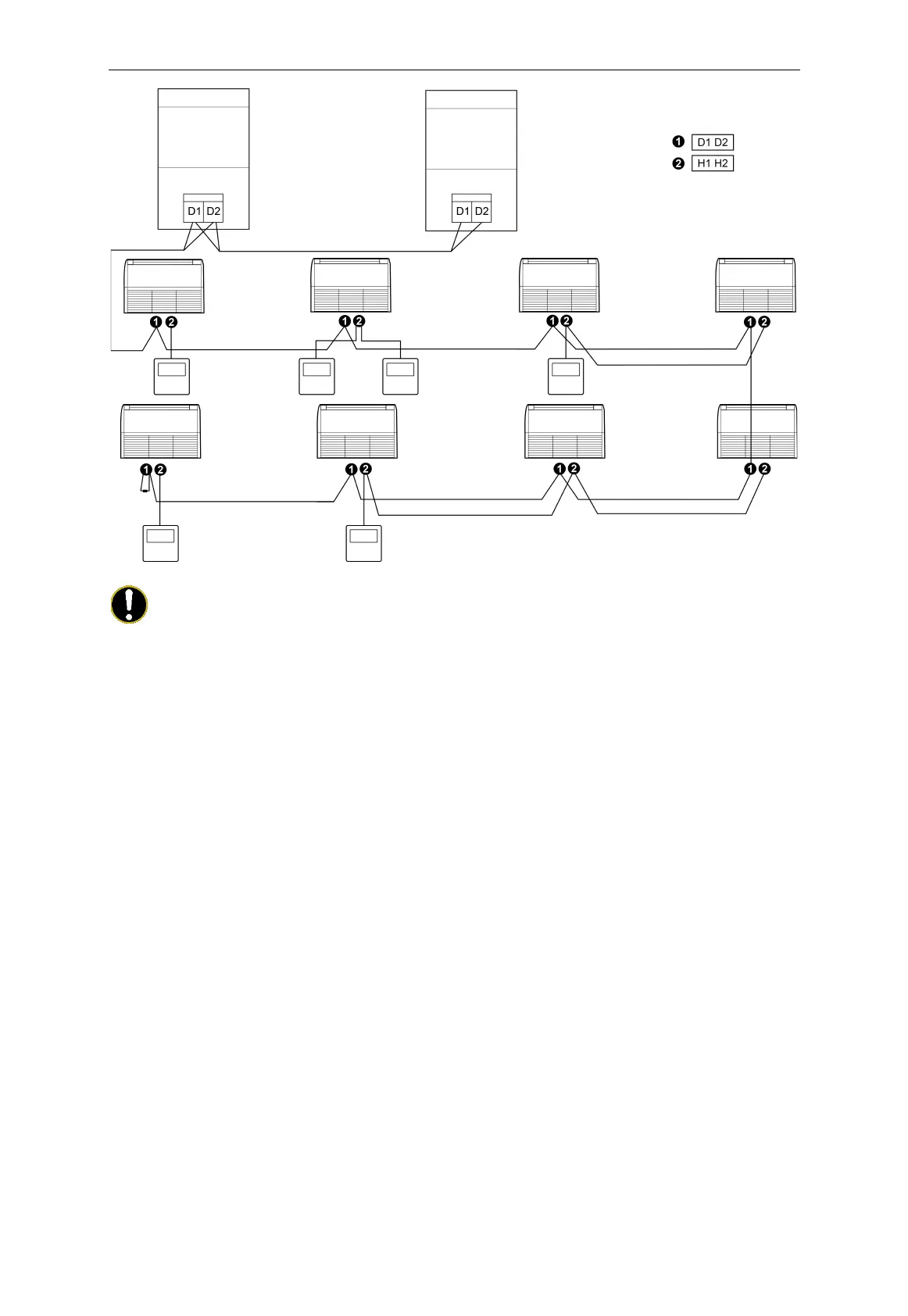

Fig.5.5
Notes:
①
The type of indoor units must be the same if they are controlled by the same wired
controller.
②
When the indoor unit is controlled by two wired controllers, the addresses of the two
wired controllers should be different through address setting. Address 1 is for main
controller; address 2 is for slave controller. Detailed setting please refer to the owner’s
manual of wired controller.
