Multi Variable Air Conditioners Ducted Type Indoor Unit
8

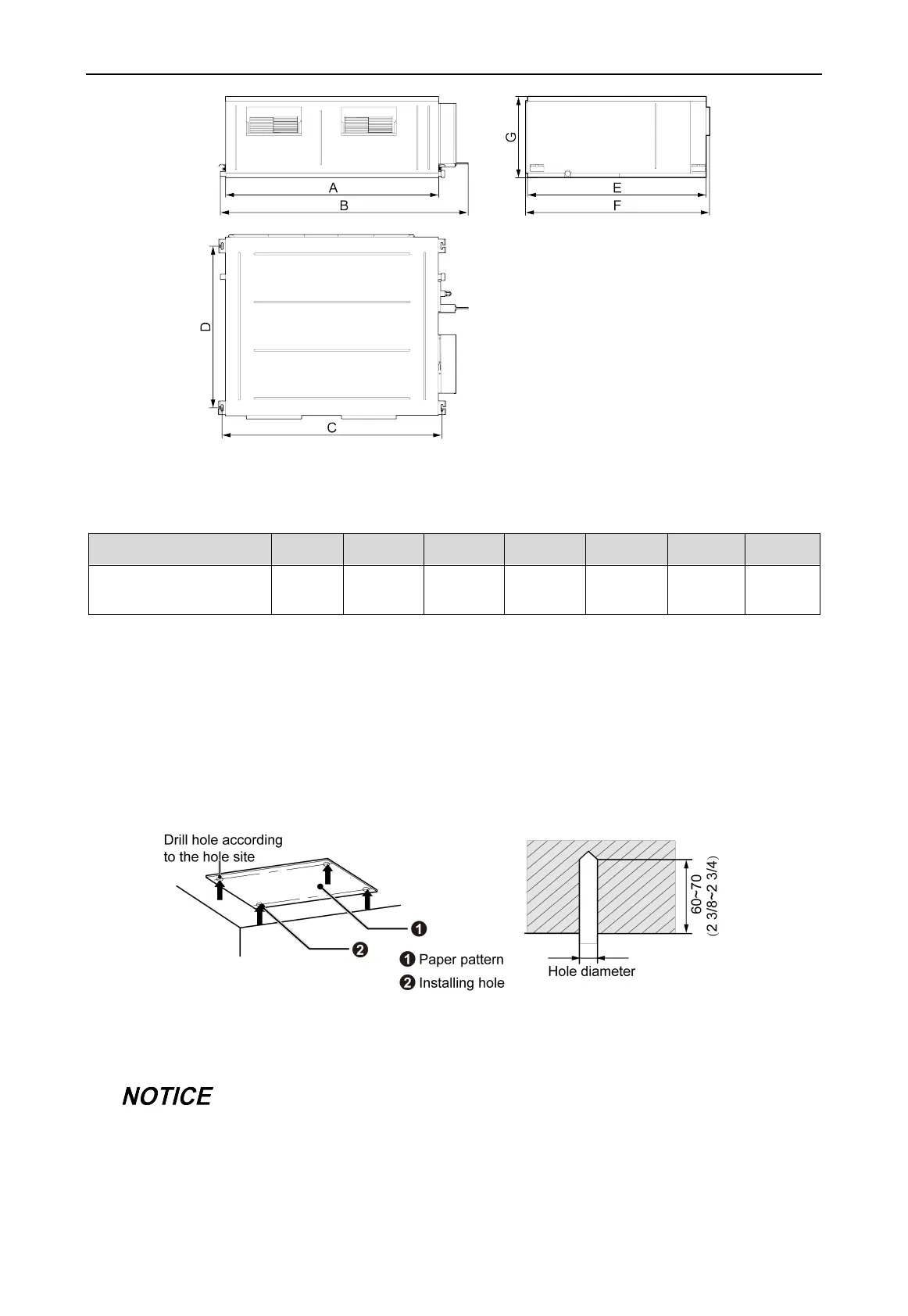

Fig.4.1.2
Below are dimensions of A, B, C, etc. for different models:
Unit: mm (inch)
Model A B C D E F G
GMV-ND72PH/B-T(U)
GMV-ND96PH/B-T(U)
1240
(48-3/4)
1442
(56-3/4)
1280
(50-3/8)
940
(37)
1040
(41)
1071
(42-1/8)
470
(18-1/2)
4.1.2 Suspend the indoor unit
(1) Drill bolt holes and install bolts.
1) Stick the reference cardboard on the installation position; drill 4 holes according to the
hole site on the cardboard as shown in Fig.4.1.3; diameter of drilling hole is according to
the diameter of expansion bolt and the depth is 60-70mm(2-3/8~2-3/4 inch), as shown in
Fig.4.1.4.
Unit: mm (inch)
Fig. 4.1.3 Fig. 4.1.4
2) Insert the M10 expansion bolt into the hole and then knock the nail into the bolt, as shown
in Fig.4.1.5, and then remove the paper pattern.
The length of bolt depends on the installation height of the unit, bolts are field
supplied.
