Multi Variable Air Conditioners Ducted Type Indoor Unit
3
No. Name Appearance Q'ty Usage
8 Insulation
1 To insulate the gas pipe
9 Insulation
1 To insulate the liquid pipe
10 Sponge
2 To insulate the drain pipe
11 Fastener
8 To fasten the sponge

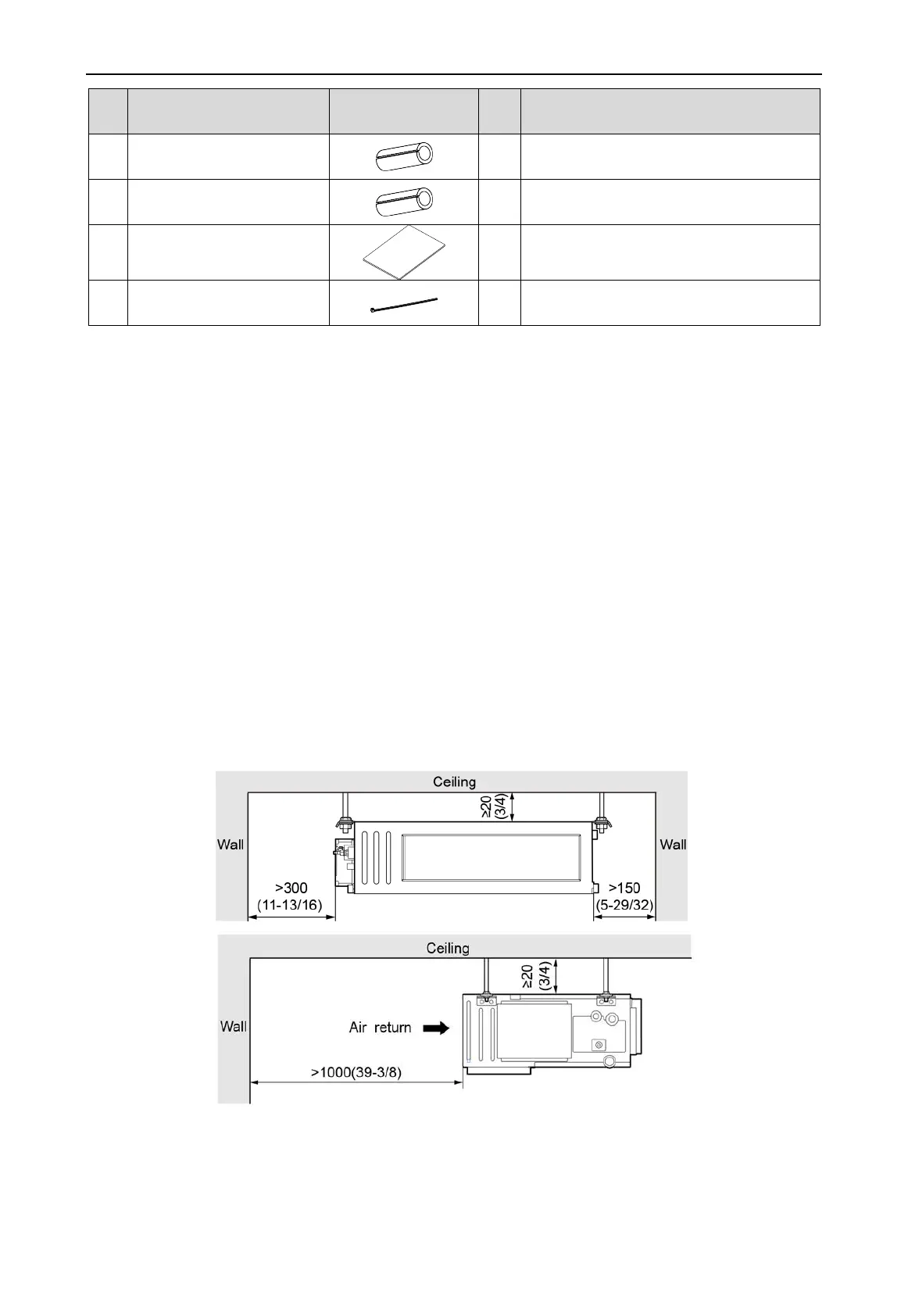

3.2 Location for Installation
(1) The appliance shall not be installed in the laundry.
(2) The top holder must be strong enough to support unit’s weight.
(3) Drain pipe can drain water out easily.
(4) There is no obstacle at inlet or outlet. Please ensure good air circulation.
(5) In order to make sure the space for maintenance, please install the indoor unit according to
the dimension described below.
(6) Keep the unit away from heating source, inflammable gas or smoke.
(7) This is a concealed ceiling type unit.
(8) Indoor unit, outdoor unit, power cord and electric wire should stay at least 1m (39-3/8 inch)
from the TV set and radio. Otherwise, these electrical appliances may have image
interference and noise (Even if the distance is 1m (39-3/8 inch), when there is strong electric
wave, noise may still occur).
Unit: mm (inch)
GMV-ND07~54PHS/B-T(U)
Fig.3.2.1
