Gree GMV-ND36ZD/A-T

GREE GMV5 INDOOR UNIT SERVICE MANUAL
188

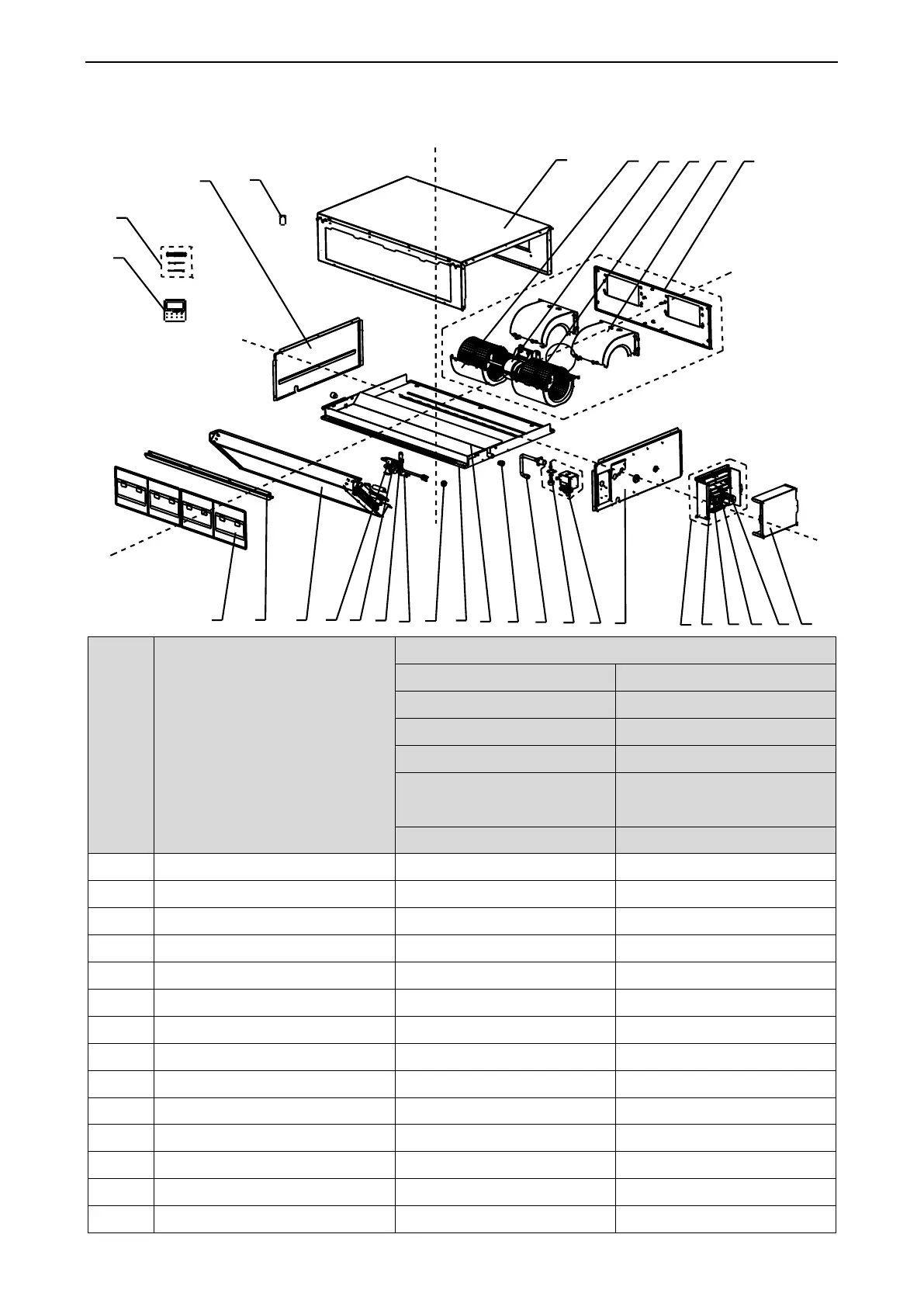

Exploded View of GMV-ND90PHS/A-T, GMV-ND100PHS/A-T, GMV-ND112PHS/A-T, GMV-
ND125PHS/A-T, GMV-ND140PHS/A-T:
2
1
4
3
5
6
2
1
1
2
31
30
28
4
15
14
13
12
1
2
3 5
6
7
18 19 20
21
9
17
16
8
11
10
27
26
2223
2425
29
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND90PHS/A-T
CM800N3550
GMV-ND100PHS/A-T
CM800N3650
GMV-ND112PHS/A-T
CM800N3660
GMV-ND125PHS/A-T
CM800N3670
GMV-ND140PHS/A-T
CM800N3680
Part code
Quantity
1
Filter Sub-Assy
111253031
2
2
Side Plate of Air intake
01375301
1
3
Evaporator Assy
01024100077
1
4
Strainer
0741410000601
2
5
Filter
0
0
6
Electronic Expansion Valve
07334468
1
7
Strainer
07220005
1
8
Electric Expand Valve Fitting
4304413215
1
9
Lower Cover Plate Sub-Assy
15265301
1
10
Water Tray Assy
01285323
1
11
Choke Plug of Drain Pipe
76712455
2
12
Pump Drainpipe
05235301
1
13
Water Level Switch
45018012
1
14
Water Pump
43138220
1
