③ Above selection requirements: Power cord size is based on BV single-core wire (2~4pc) at
40℃ambient temperature when laying across plastic pipe. Air switch is D type and used at
40℃. If actual installation condition varies, please lower the capacity appropriately according
to the specifications of power cord and air switch provided by manufacturer.
④ If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or
a similarly qualified person in order to avoid a hazard.
⑤ Install cut-off device near the unit. The minimum distance between each stage of cut-off device
should be 3mm (The same for both indoor unit and outdoor unit).
4 Installation Instructions
4.1 Installation of Indoor Unit
4.1.1 Outline Dimension and Installation Spots

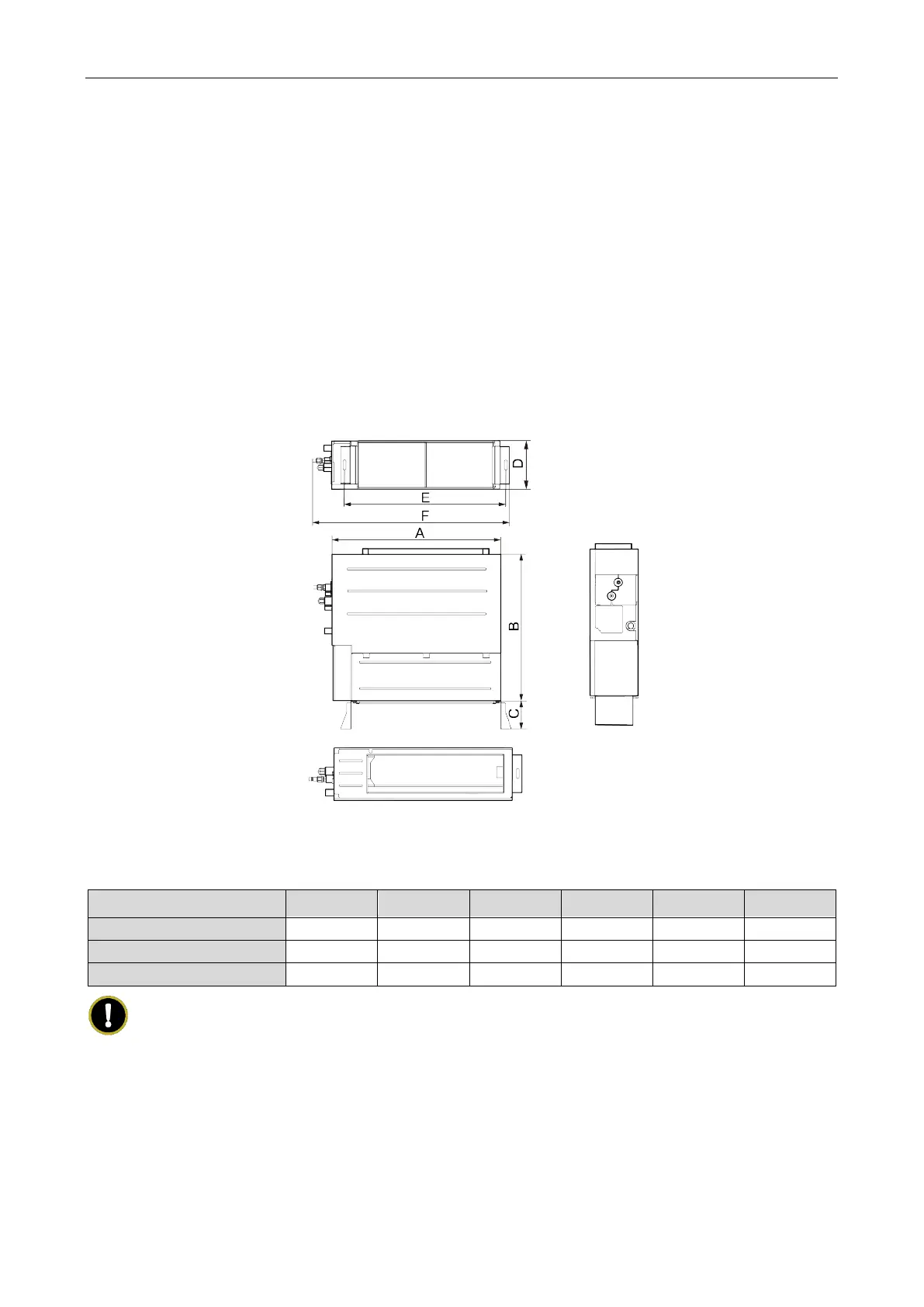

Fig.4.1.1
Below are dimensions of A, B, C, etc. for different models:
Unit: mm
Model A B C D E F
GMV-ND22~36ZA/A-T
700 615 120 200 665.5 837
GMV-ND45ZA/A-T 900 615 120 200 865.5 1045
NOTE!
The height of ex-factory supporter is 120mm. If user wants to increase or decrease unit installation
height, please purchase the supporter of different height. Other height of supporter is 80mm, or 160mm.
