Multi Variable Air Conditioners Ducted Type Indoor Unit
GMV(L)-R90P/NaB-D, GMV(L)-R112P/NaB-D, GMV(L)-R140P/NaB-D

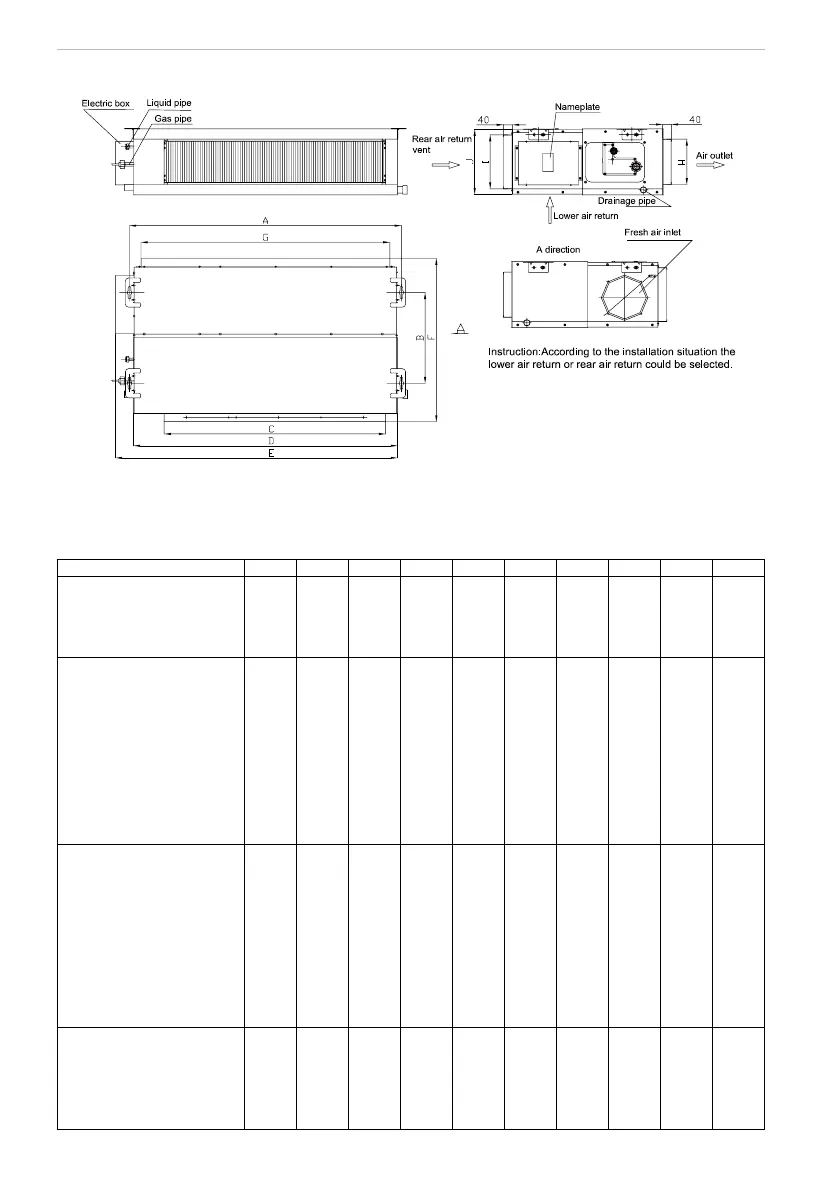

Fig.2
① .
Looking into the air outlet vent, the wiring is in the left of the unit.
② .
According to the actual installation, there are two ways for the return air, bottom return air or rear
return air.
Product model A B C D E F G H I J
GMV(L)-R45P/NaB-K
GMV(L)-R45PS/NaB-K
GMV(L)-R45P/HB-K
GMV(L)-R45PS/HB-K
932 430 738 892 980 721 738 125 203 266
GMV(L)-R56P/NaB-K
GMV(L)-R71P/NaB-K
GMV(L)-R56PS/NaB-K
GMV(L)-R71PS/NaB-K
GMV(L)-R56P/HB-K
GMV(L)-R71P/HB-K
GMV(L)-R56PS/HB-K
GMV(L)-R71PS/HB-K
GMV(L)-R56P/NaB-D
1114 420 918 1074 1159 736 1010 207 207 300
GMV(L)-R90P/NaB-K
GMV(L)-R112P/NaB-K
GMV(L)-R90PS/NaB-K
GMV(L)-R112PS/NaB-K
GMV(L)-R90P/HB-K
GMV(L)-R112P/HB-K
GMV(L)-R90PS/HB-K
GMV(L)-R112PS/HB-K
GMV(L)-R90P/NaB-D
1382 420 1155 1340 1425 736 1280 207 250 300
GMV(L)-R140P/NaB-K
GMV(L)-R140PS/NaB-K
GMV(L)-R140P/HB-K
GMV(L)-R140PS/HB-K
GMV(L)-R140P/NaB-D
1382 420 1155 1340 1425 736 1280 207 250 300
