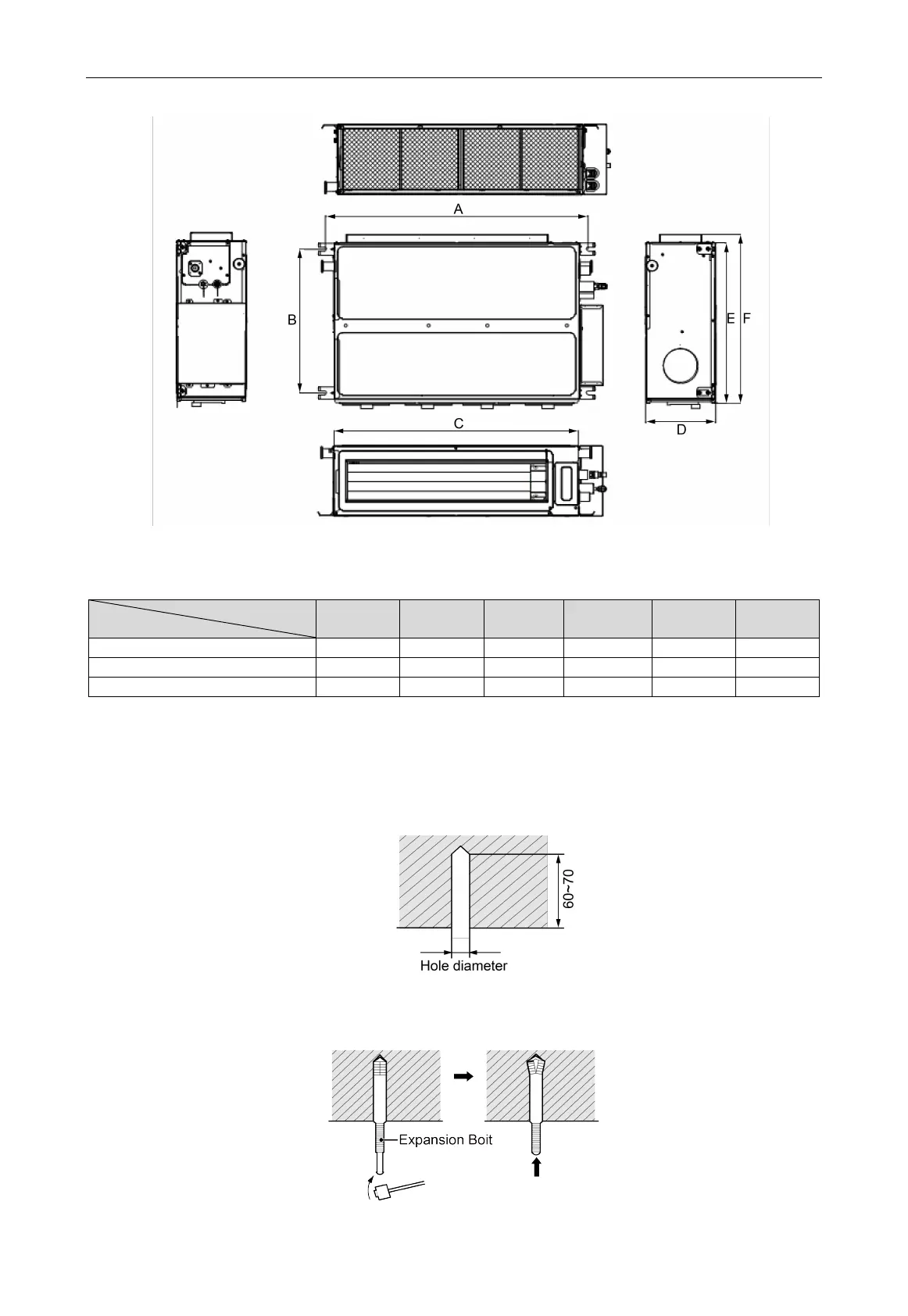

Below are the outline dimension applicable to indoor units of GMV-ND18~71PLS/C-T.
Fig 4.2
Below are dimensions of A, B, C, etc. for different models:
Unit: mm
Item
Model
A B C D E F
GMV-ND18~36PLS/C-T
760
415
710
200
462
486
GMV-ND40~63PLS/C-T
1060
415
1010
200
462
486
GMV-ND71PLS/C-T
1360
415
1310
200
462
486
4.1.2 Punching of Bolt Spots and Bolt Installation
Punch holes on the installation area according to the 4 spots on the paper pattern; the punching
diameter may refer to the diameter of expansion bolt, about 60mm to 70mm depth, as shown in Fig
4.3
Unit: mm
Fig 4.3
Insert the expansion bolt M10 into the hole and then drive the iron nail into the bolt, as shown in
Fig 4.4.
Fig 4.4

Gree GMV series Specifications

General

Type	Variable Refrigerant Flow (VRF)
Compressor Type	Inverter Scroll Compressor
Refrigerant	R410A
Energy Efficiency	High Efficiency
Control	Centralized control, individual control
Operating Temperature Range (Heating)	24°C
Noise Level (Indoor Unit)	19 - 45 dB(A)
