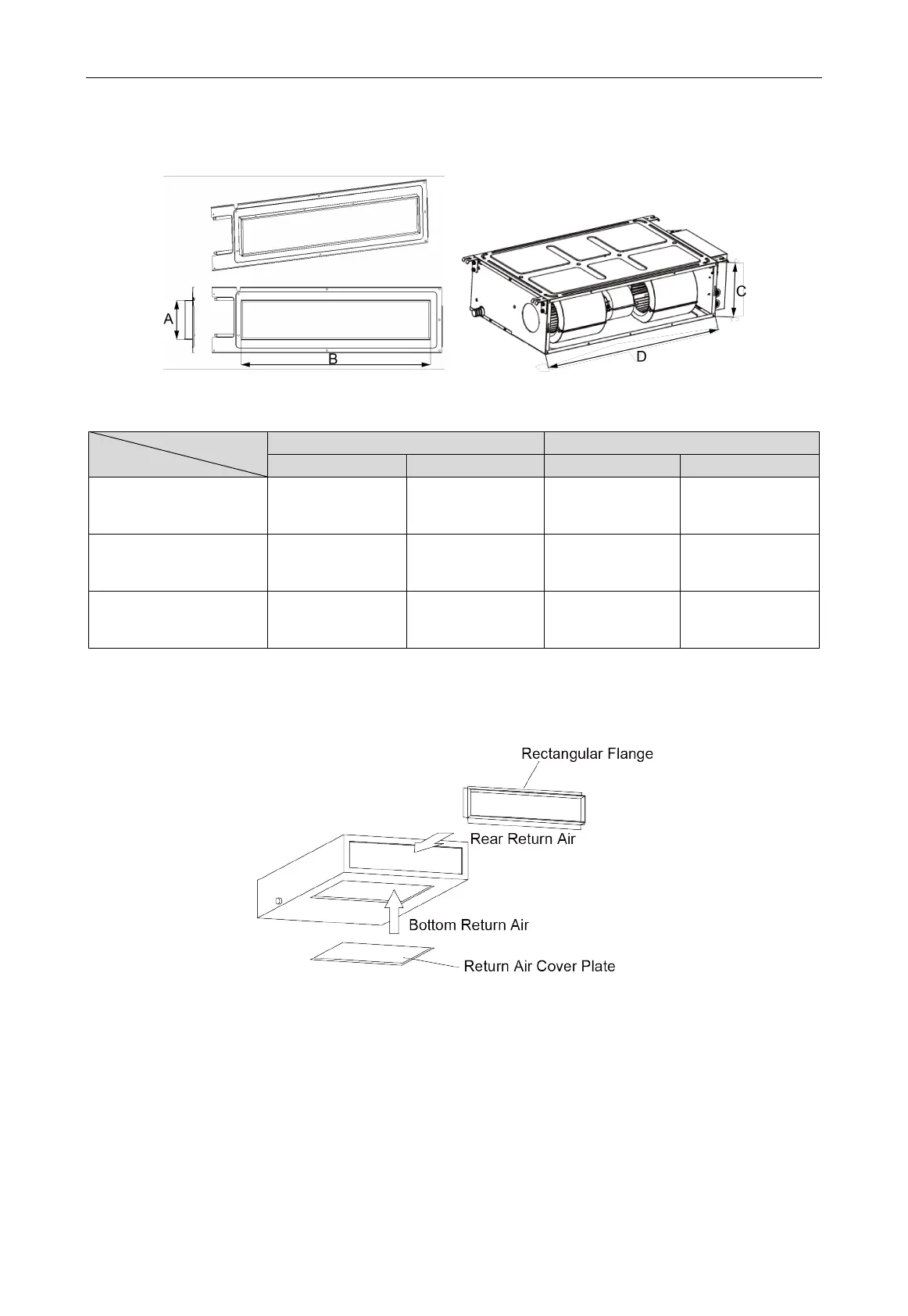

4.4.2 Shape and Size of Air Outlet and Air-return Opening
As shown in Fig 4.22 is applicable for the models below: GMV-ND22~72PL/B-T, GMV-
ND22~71PLS/B1-T, GMV-ND18~71PLS/C-T.
Fig 4.22
Unit: mm
Item
Model
Dimension of air outlet flange
Dimension of air return
A
B
C D
GMV-ND22~36PL/B-T;
GMV-ND22~36PLS/B1-T;
GMV-ND18~36PLS/C-T
122 585 200 710
GMV-ND40~63PL/B-T;
GMV-ND40~63PLS/B1-T;
GMV-ND40~63PLS/C-T
122 885 200 1010
GMV-ND72PL/B-T; GMV-
ND71PLS/B1-T;
GMV-ND71PLS/C-T
122 1185 200 1310
4.4.3 Installation of Air-return Duct
(1) Square flange is defaulted to be fitted on the back before ex-factory. Air-return cover is on
the bottom, as shown in Fig 4.23.
Fig 4.23
(2) If air return from the bottom is needed, switch the positions of square flange and air-return
cover.
(3) Use a clincher to connect air-return duct to the air-return opening of indoor unit. The other
end of air-return duct connects with the air-return louver. In order to adjust the height
conveniently, you can make a folded canvas duct and have it strengthened by 8# iron wire.
(4) Air return from the bottom will produce more noise than air return from the back. So we
suggest you to add a noise damper and static pressure case to lower noise if you choose air
return from the bottom.

Gree GMV series Specifications

General

Type	Variable Refrigerant Flow (VRF)
Compressor Type	Inverter Scroll Compressor
Refrigerant	R410A
Energy Efficiency	High Efficiency
Control	Centralized control, individual control
Operating Temperature Range (Heating)	24°C
Noise Level (Indoor Unit)	19 - 45 dB(A)
