Gree GMV series User Manual

GMV DC Inverter VRF
21
Total rated capacity of outdoor
modules (multi-modular system)
Pipe between ODU and the first branch of IDU
Gas pipe size mm(in.)
Liquid pipe size mm(in.)
GMV-144WM/B-F(U)
Φ28.6(1-1/8)
Φ12.7(1/2)
GMV-168WM/B-F(U)
Φ28.6(1-1/8)
Φ15.9(5/8)
GMV-192WM/B-F(U)
Φ28.6(1-1/8)
Φ15.9(5/8)
GMV-216WM/B-F(U)
Φ28.6(1-1/8)
Φ15.9(5/8)
GMV-240WM/B-F(U)
Ф34.9(1-3/8)
Φ15.9(5/8)
GMV-264WM/B-F(U)
Ф34.9(1-3/8)
Ф19.05(3/4)
GMV-288WM/B-F(U)
Ф34.9(1-3/8)
Ф19.05(3/4)
GMV-312WM/B-F(U)
Ф34.9(1-3/8)
Ф19.05(3/4)
GMV-336WM/B-F(U)
Ф34.9(1-3/8)
Ф19.05(3/4)
GMV-360WM/B-F(U)
Ф41.3(1-5/8)
Ф19.05(3/4)

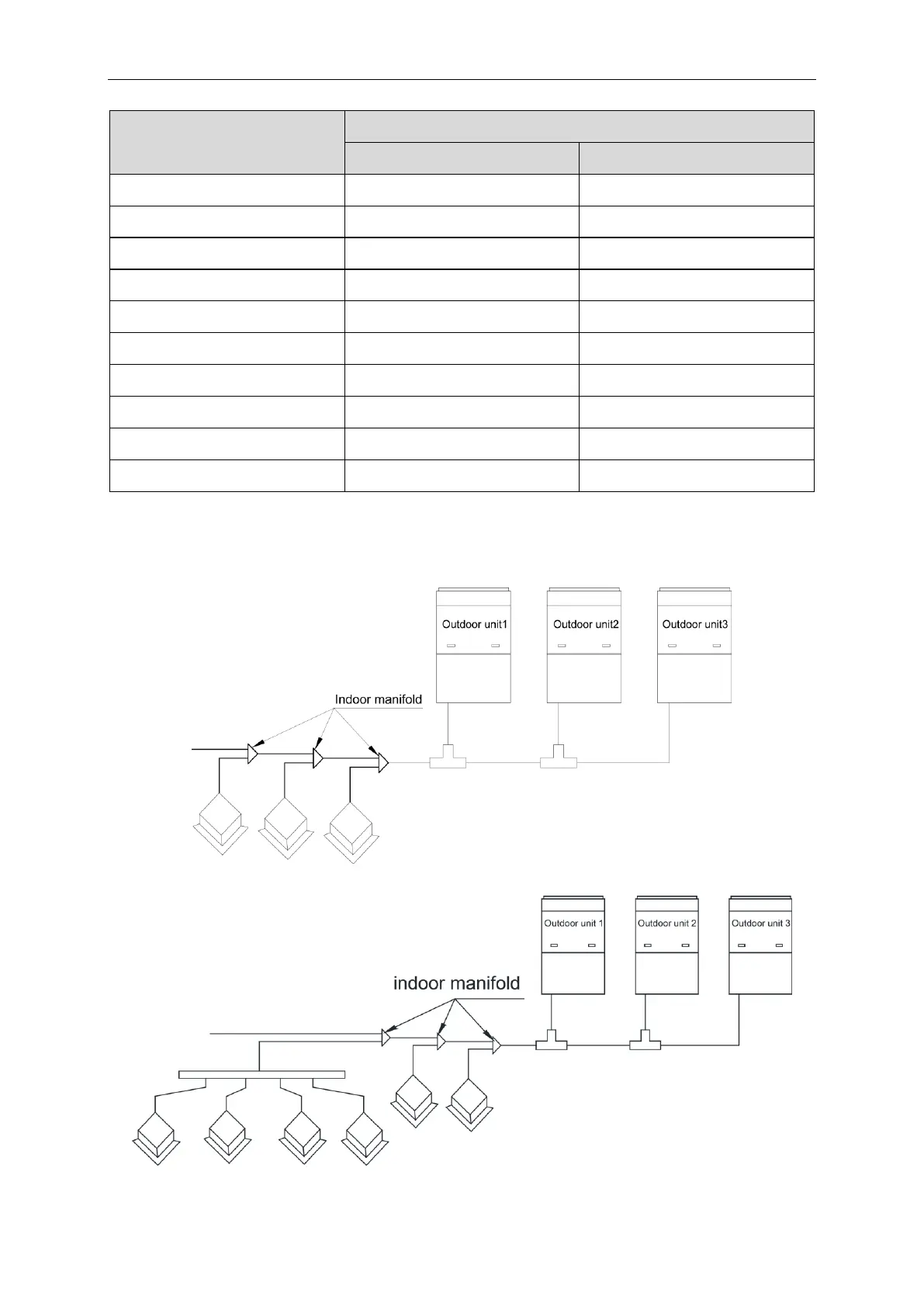

4.3.5.5 Manifold at indoor unit side
Manifold at indoor unit side can be selected as per total capacity of downstream indoor unit(s).
Refer to the following table.
Fig. 30(a)
Fig.30 (b)

Gree GMV series Specifications

General

Type	Variable Refrigerant Flow (VRF)
Compressor Type	Inverter Scroll Compressor
Refrigerant	R410A
Energy Efficiency	High Efficiency
Control	Centralized control, individual control
Operating Temperature Range (Heating)	24°C
Noise Level (Indoor Unit)	19 - 45 dB(A)
