MAINTENACE 01000
GMV5 COMPACT MULTI VRF UNIT
SERVICE MANUAL
4、Remove left
side plate and rear
side plate
 Loose screws fixing left
side plate and rear side
plate with screwdriver
 Remove the rear side plate
Removal operation for blade
Remark: Before removing the motor, please make sure that the unit is disconnected with the power.
Process
Operation Instruction

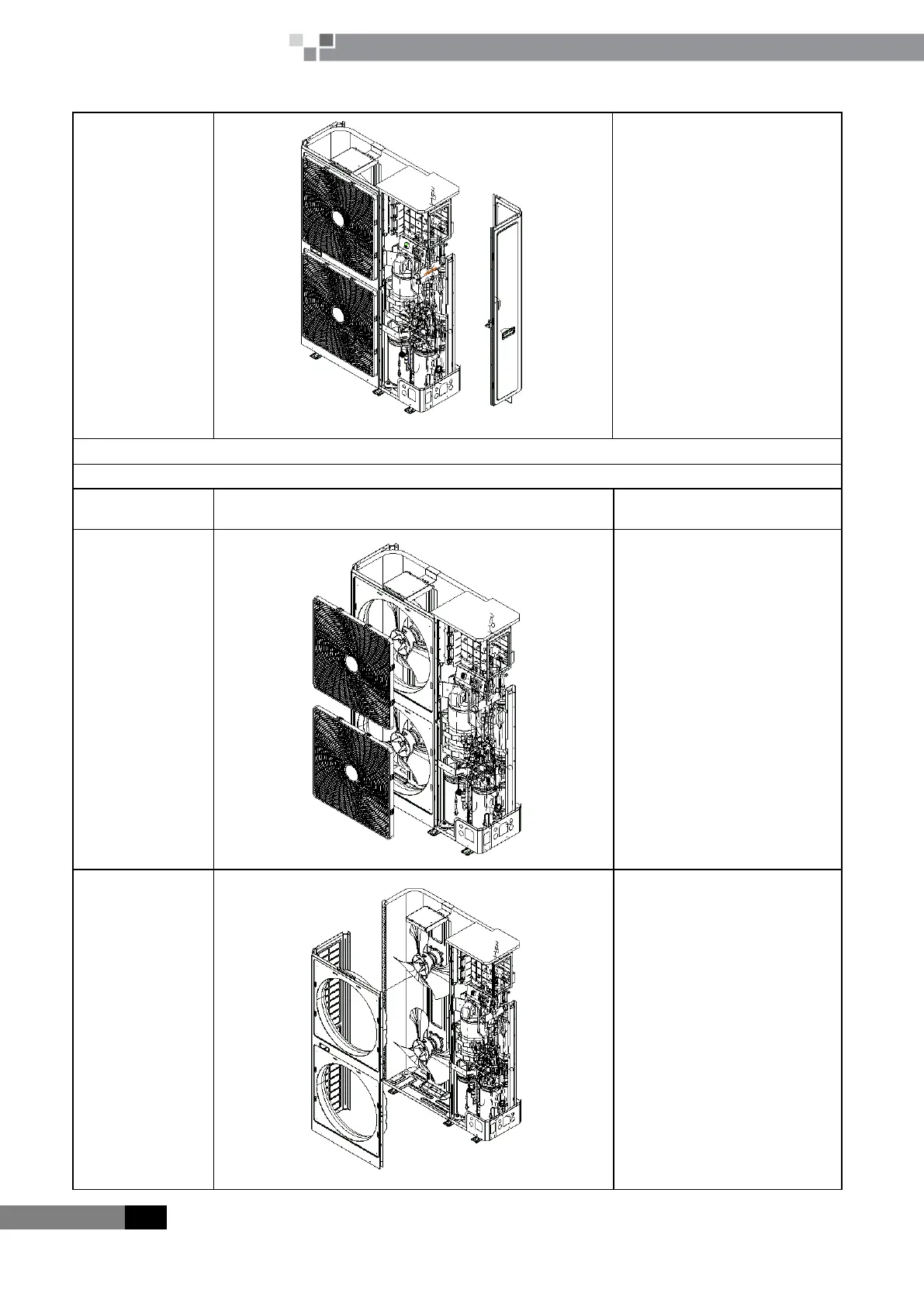

1、Remove grille
 Loose screws fixing the
panel with screwdriver
 Then remove the grille
2、Remove front
side plate sub-assy
 Loose the screw fixing the
front side plate with
screwdriver
 Hold the front side plate
upwards and then put it on
the floor flatly
