0 109 MAINTENACE
GMV5 COMPACT MULTI VRF UNIT
SERVICE MANUAL

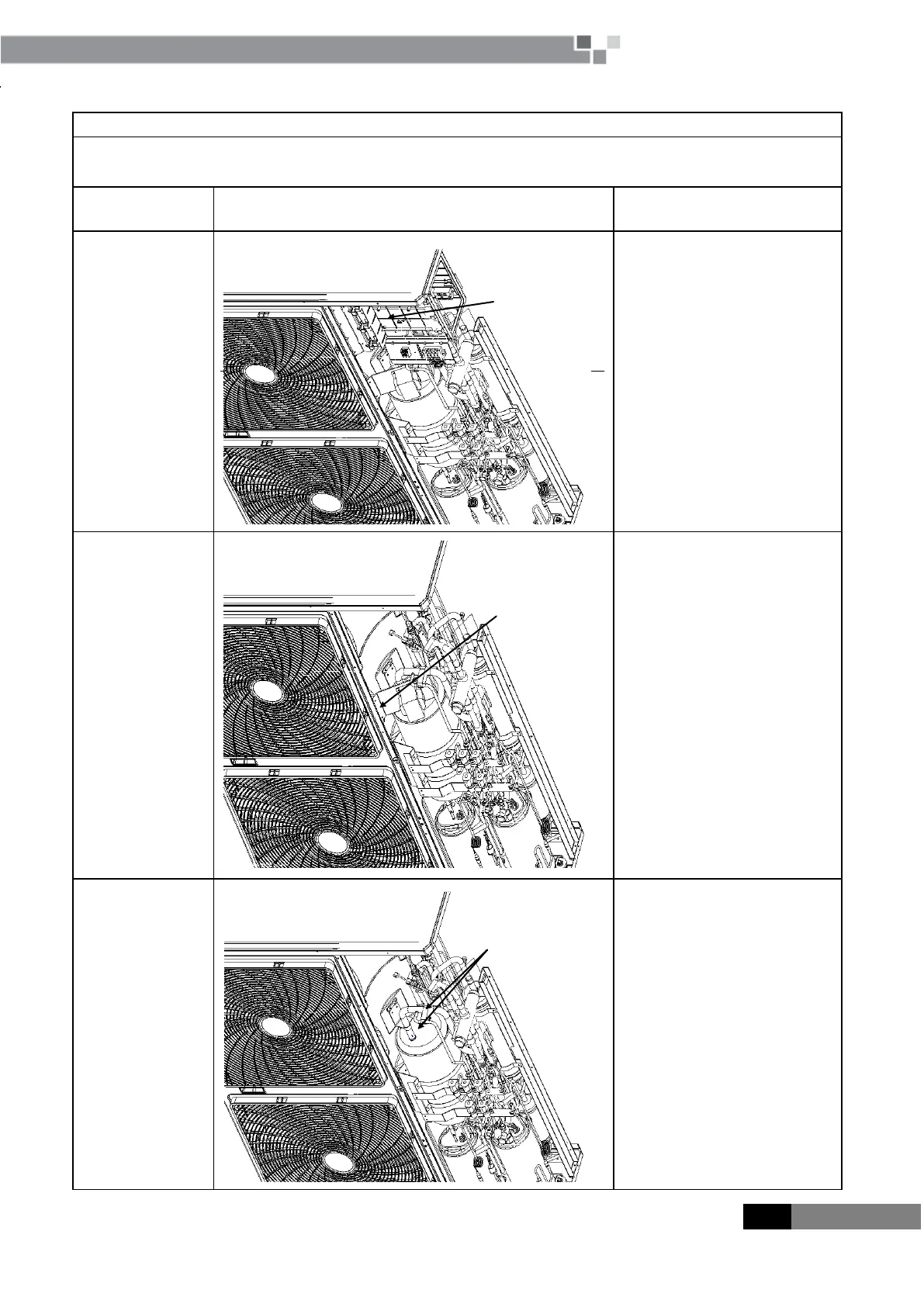

Removal operation of gas liquid separator
Remark: Before removing the Gas-liquid Separator, make sure that there is no refrigerant inside the pipe system
and that the power has been cut off.
Proecess
Operation Instruction
1、Remove the
electric box assy
拆掉控制器盒，
和模块散热片
 Remove the electric box
assy
2、Remove the
reactor
 Remove the reactor
 Dismantle the installation
supporting frame
3、Disconnet the
gas-liquid
separator and the
conneting pipe
 Remove the gas-liquid
separator at first
 Weld the connection pipe
for gas-liquid separator,
and then pull out the
connection pipe
 Note ： During welding
process,do not let flame
burn out other parts
Weld those
two
connection
spots
Remove the
reactor
Weld the
connection pipe
for gas-liquid
separator
