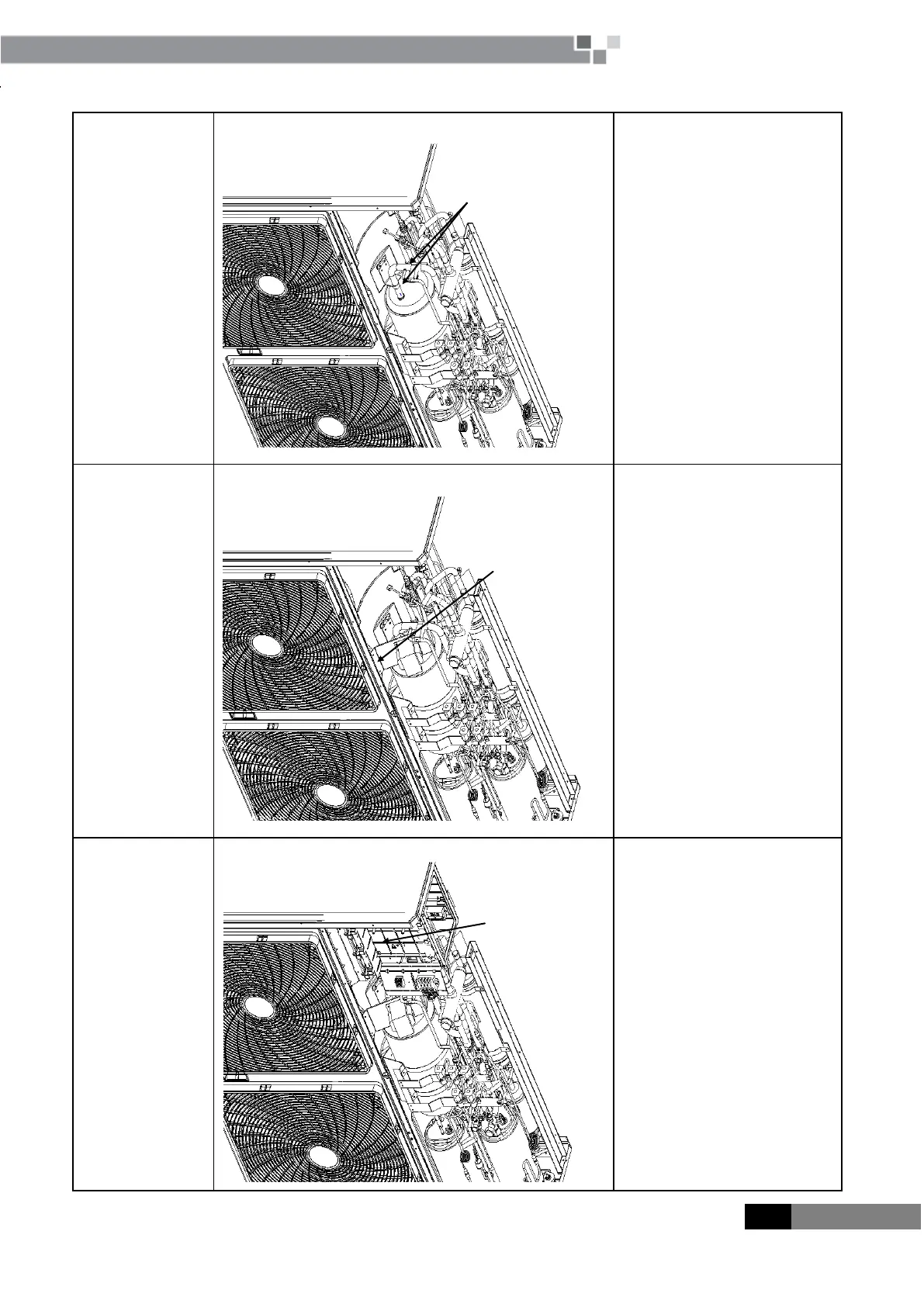

7、Weld the
connection pipe
for gas-liquid
separator
 Weld the connection
position between gas liquid
separator and pipeline
 Note: During welding
process, do not let flame
burn out other parts
8、Install the
reactor
 Tighten the Installation
supporting frame
 Install the reactor
9、Install the
electric box assy
 Install the electric box assy
Weld the connection
position between
gas-liquid separator
and pipeline
Tighten the
Installation
supporting
frame
Install the electric
box assy
