CONTROL 0 30 0
GMV5 COMPACT MULTI VRF UNIT
SERVICE MANUAL
Press ON/OFF button again to turn off the unit.

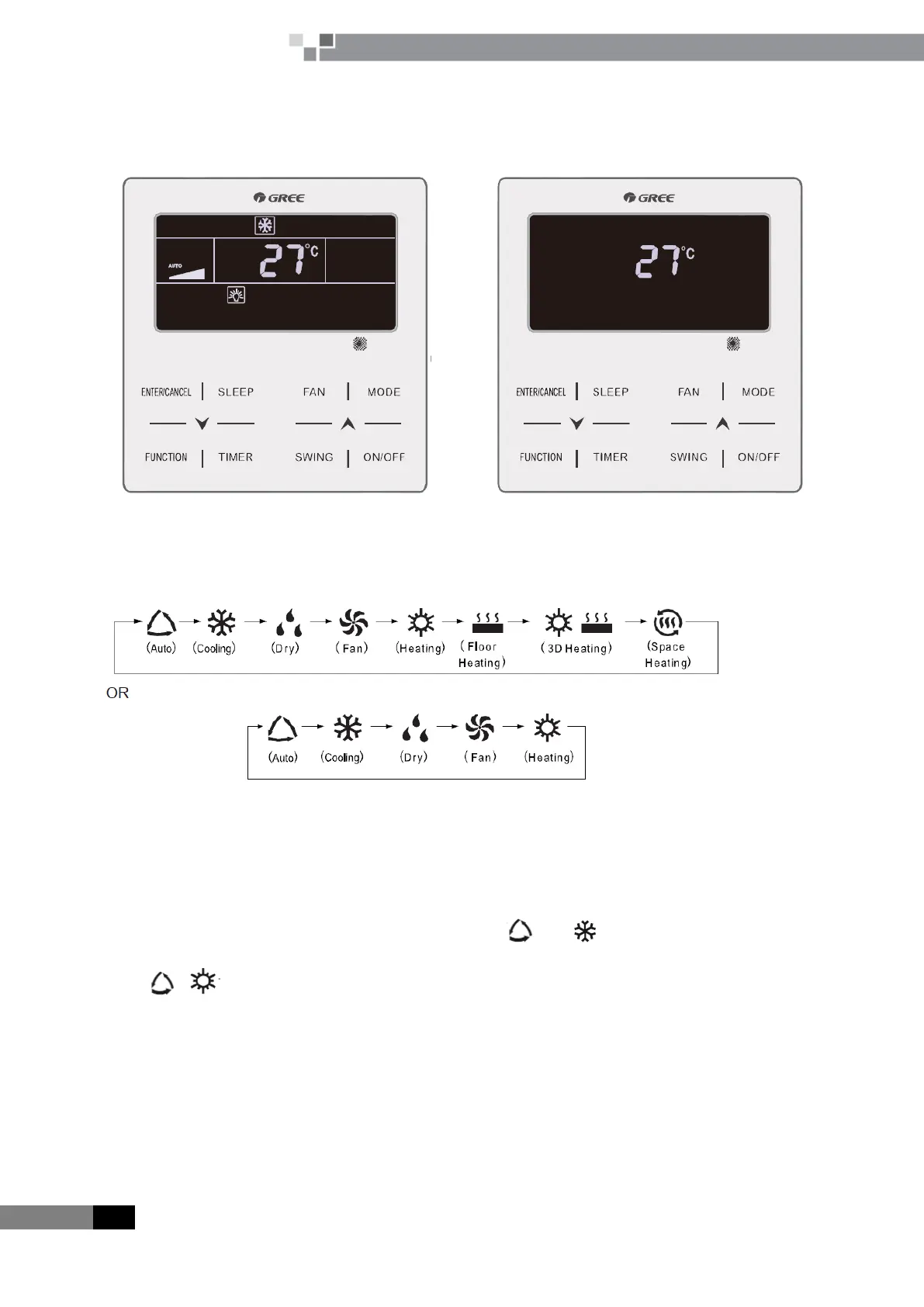

The interfaces of On/Off status are shown as follow:
2）Mode Setting
Under On status, pressing MODE button can set mode circularly as:
Note：
①There will be different mode with different model of the uint.The wired controller will select the range of setting
mode according to the model of indoor unit
② Only in master indoor unit that AUTO mode can be set.
③ Under the AUTO mode，when the indoor unit is cooling, and will be on; when the indoor unit is
heating ,and will be on.
3）Temprature Setting
Pressing∧or∨button in On status increases or decreases set temperature by 1°C; holding ∧or∨button
increases or decreases set temperature by 1°C every 0.3s.
In Cooling, Fan, Heating, Floor Heating, 3D Heating or Space Heating mode, temperature setting range is
16°C~30°C.
In Dry mode, the temperature setting range is 12°C, 16°C~30°C. In Dry mode, when temperature is 16°C,
