0 3100 CONTROL
GMV5 COMPACT MULTI VRF UNIT
SERVICE MANUAL
∨
30°C).
Note:
① Under Auto mode or Out function is activated, the setting temperature can not be adjusted by pressing
∧or∨
② When the wired controller is connected with a Fresh Air Indoor Unit, setting temperature wo
∧or∨button. The air outlet temperature in cooling or heating can only be
set in the parameter setting status.
4）Fan Speed Setting

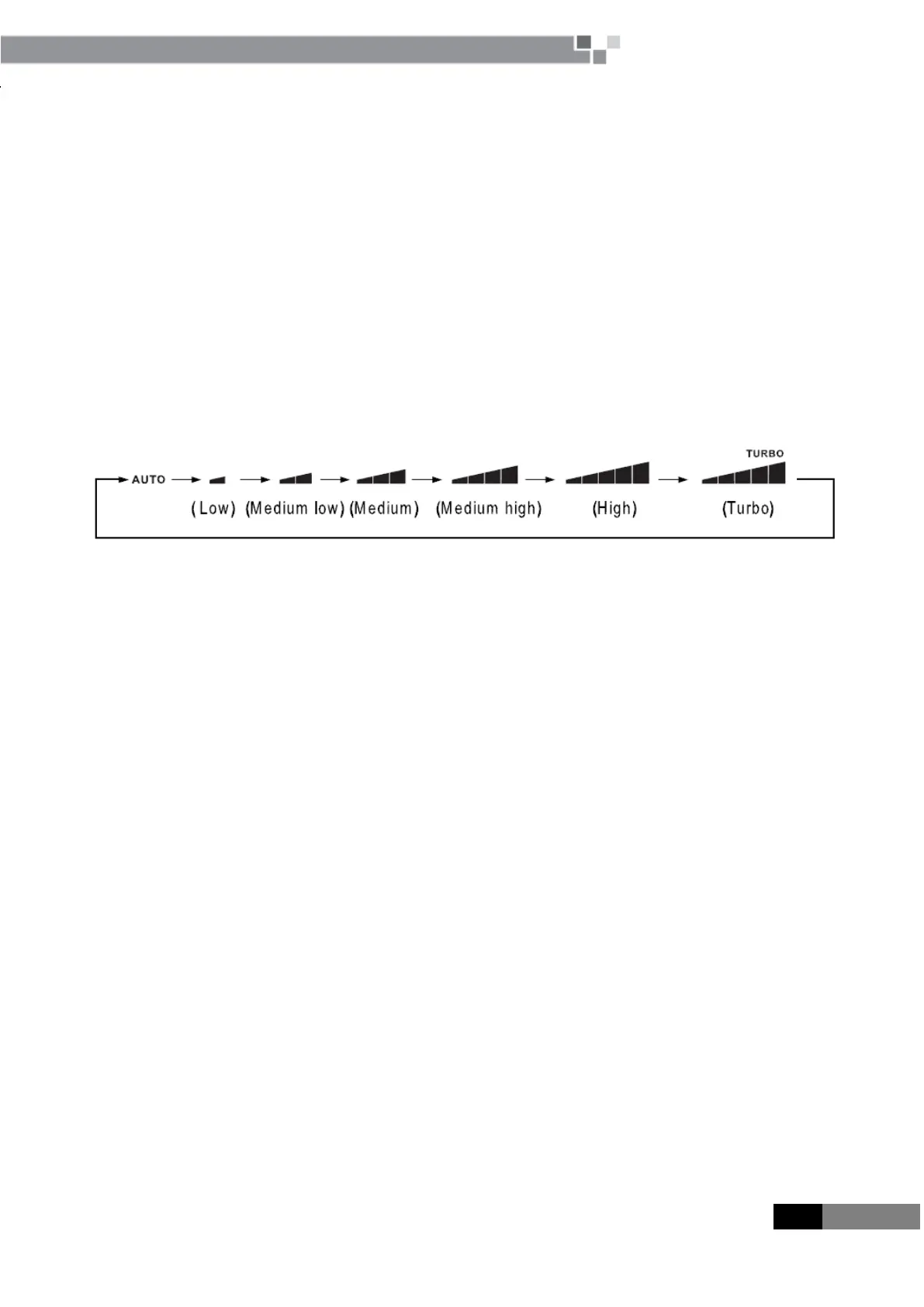

Under On status, pressing FAN button can set fan speed circularly as:
Note: Under the DRY mode, the fan will be kept running at the low speed and the fan speed isn't adjustable
5）Timer setting
The wired controller is equipped with two kinds of timer: general timer and clock timer. General timer is
factory defaulted setting. Please refer to parameter setting
a. General Timer
Unit On/Off after a desired hour can be set through general timer.
∧or∨ button to adjust timer time. Press TIMER button to save the setting and then exit setting.
Cancel Timer: when timer is set, press TIMER button to cancel it.
Timer setting range: 0.5~24h. Pressing ∧or∨ button increases or decreases timer time by 0.5h; holding
∧or∨ button increases or decreases timer time by 0.5h every 0.3s.
In unit On status, timer Off setting is shown as follow:
