INSTALLATION 0580
GMV5 COMPACT MULTI VRF UNIT
SERVICE MANUAL
Model
A
B
C
GMV-224WL/A-X
1098
427
1584
GMV-250WL/A-X
1098
427
1584
GMV-280WL/A-X
1098
427
1584

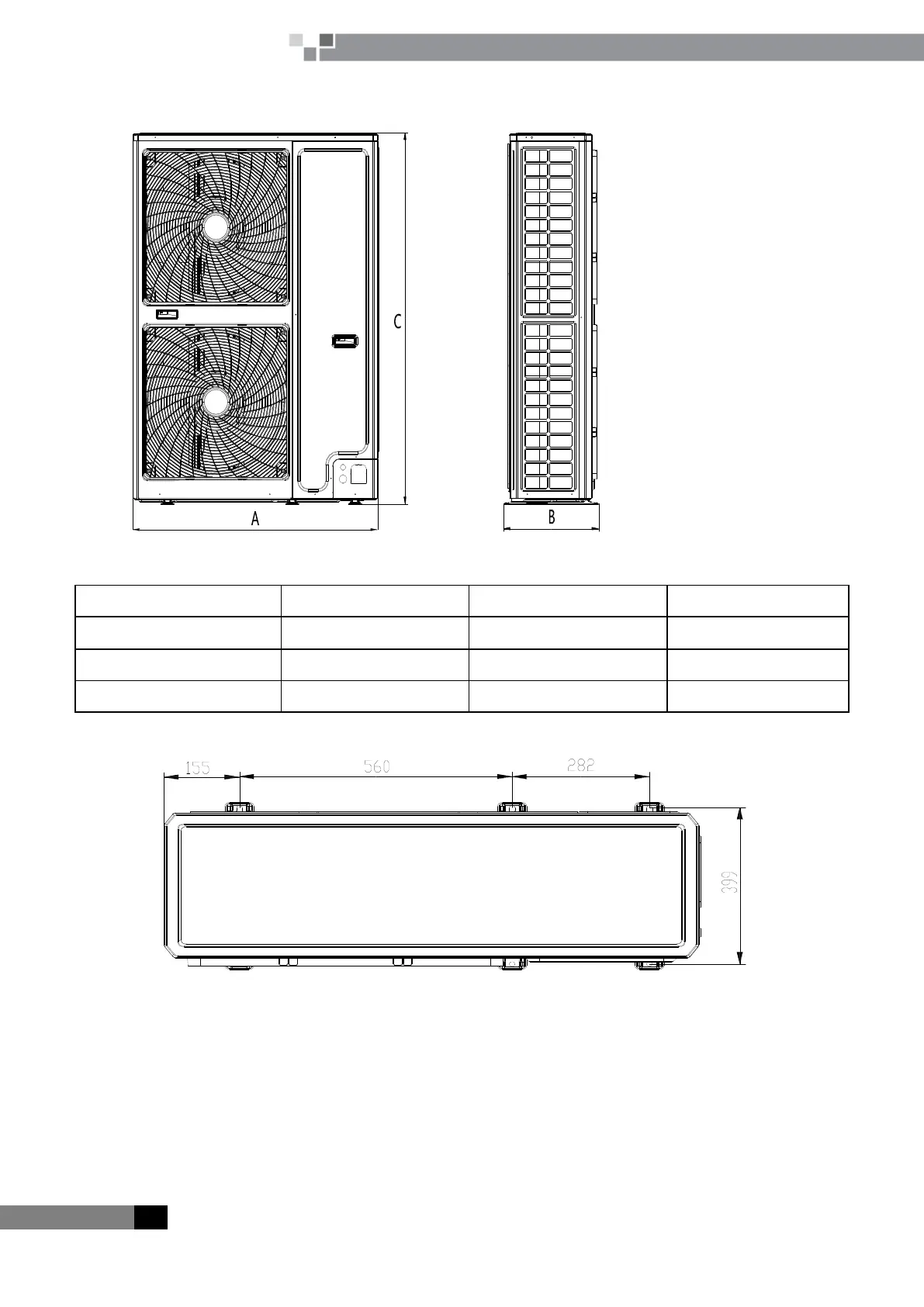

2) Mounting hole physical dimension (mm)
3）Use M12 bolt to fix up the chassis of the units when installing units.
4）A space is needed to install outdoor unit to insure unit operate normally.
