INSTALLATION 0640
GMV5 COMPACT MULTI VRF UNIT
SERVICE MANUAL

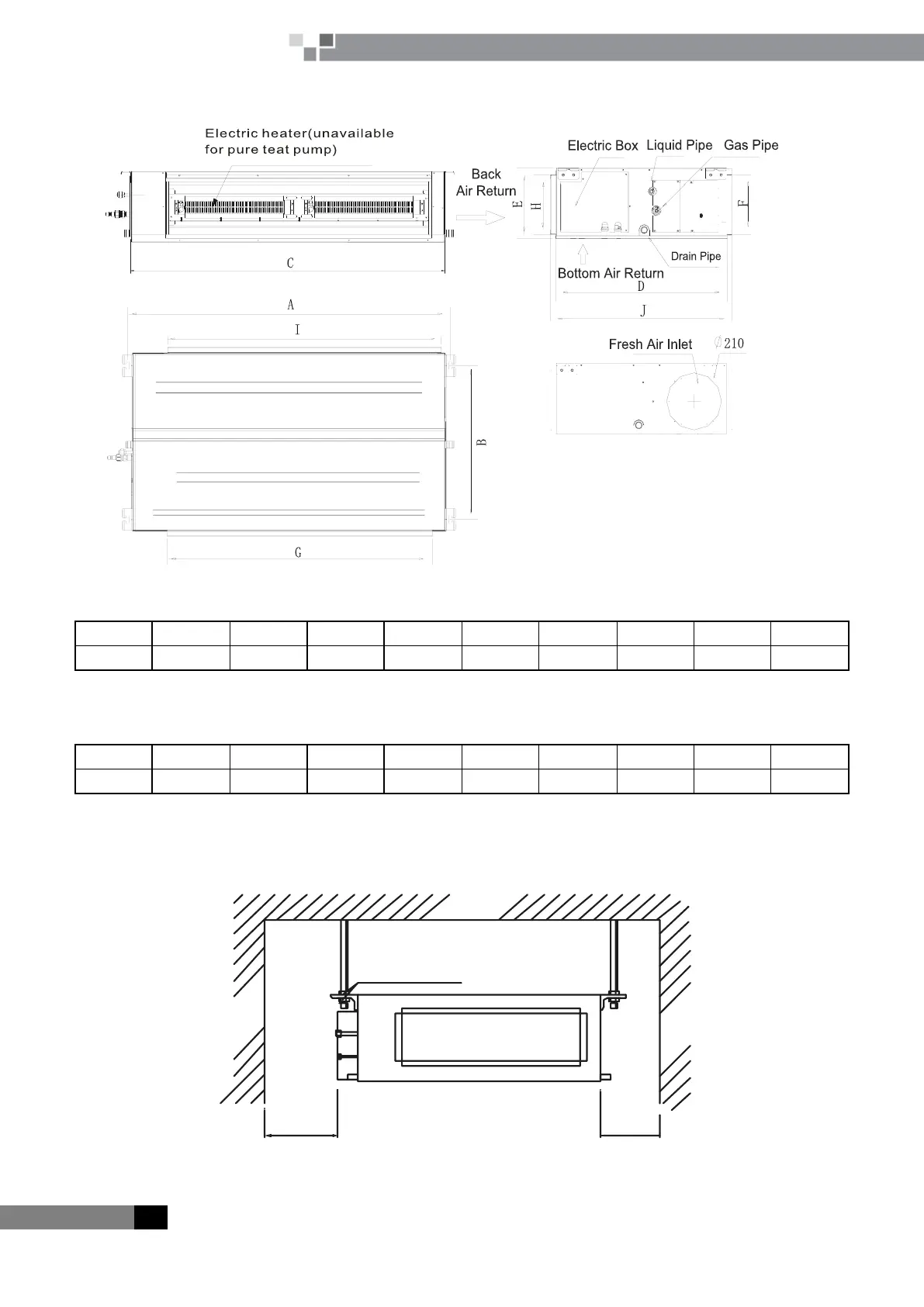

GMV-ND71PLS/A-T, GMV-ND80PLS/A-T (mm)
A
B
C
D
E
F
G
H
I
J
1236
565
1200
655
260
222
1016
220
1050
695
GMV-ND90PLS/A-T, GMV-ND100PLS/A-T, GMV-ND112PLS/A-T, GMV-ND125PLS/A-T, GMV-ND140PLS
/A-T (mm)
A
B
C
D
E
F
G
H
I
J
1379
565
1340
655
260
207
1153
220
1188
716
② Installation space: (mm)
>300 >150
C eiling
W all
W all
N ut with w asher
N ut spring pad
