5.2.2 Slim duct type

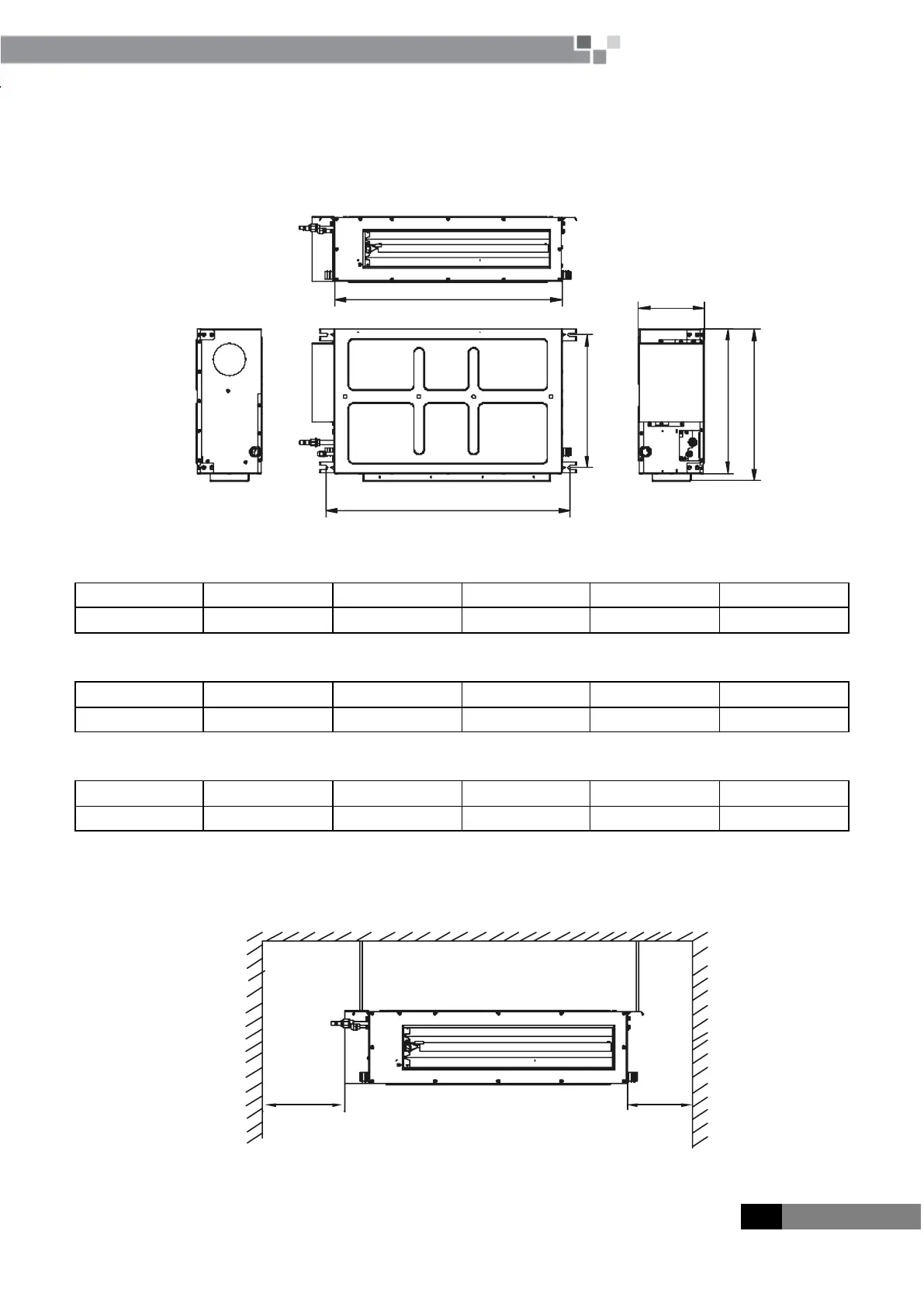

① Outline Dimensions:
A
C
B
E
D
F
GMV-ND22PL/B-T, GMV-ND25PL/B-T, GMV-ND28PL/B-T, GMV-ND32PL/B-T, GMV-ND36PL/B-T (mm)
A
B
C
D
E
F
760
415
710
200
450
475
GMV-ND40PL/B-T, GMV-ND45PL/B-T, GMV-ND50PL/B-T, GMV-ND56PL/B-T, GMV-ND63PL/B-T (mm)
A
B
C
D
E
F
1060
415
710
200
450
475
GMV-ND72PL/B-T (mm)
A
B
C
D
E
F
1360
415
1310
200
450
475
② Space Dimension for Installation: (mm)
＞500 ＞250
