52
Maintenance
Service Manual

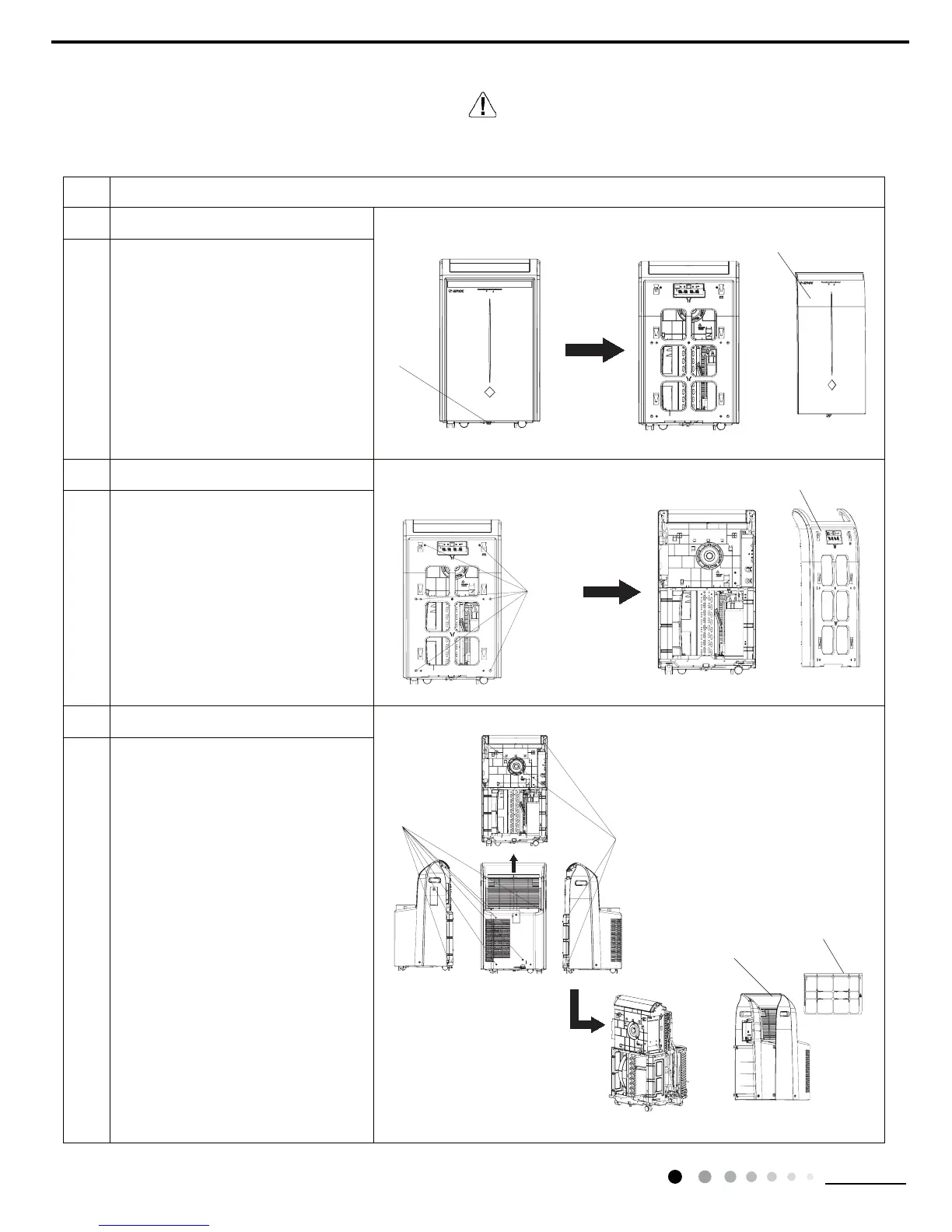

11. Removal Procedure
Warning: disconnect power supply before
removal; discharge the refrigerant completely
before unsoldering the pipes.
ProduceSteps
1
2
3
screw
decoration board
Remove decoration board
Remove screws fixing decoration board
and then lift the decoration board
upwards to remove it.
Remove panel
Remove screws on panel and then
remove the panel.
screw
screw
screw
Remove rear board, filter
Remove screws fixing rear board and
then remove the rear board. Lift up the
filter along arrow direction and then draw
out the filter.
rear board
filter
front panel
To Next Page
