U-Match Series Duct Type Unit
7

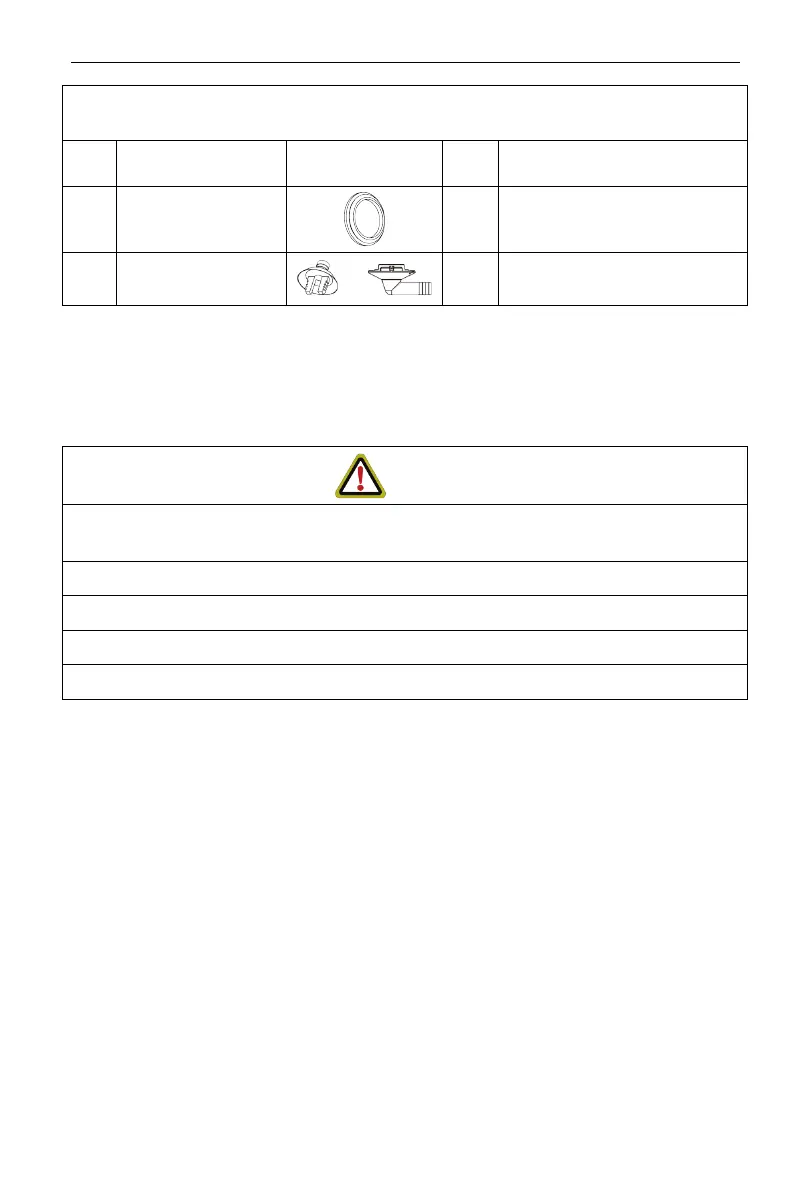

Outdoor Unit Accessories
No Name Appearance Q'ty Usage
1 Drain Plug
1or3 To plug the unused drain hole
2
1
To connect with the hard PVC
drain pipe
3 Installation
3.1 Installation Preparation
3.1.1 Selection of Installation Location
WARNING
①.
The unit must be installed where strong enough to withstand the weight of the
unit and fixed securely; otherwise the unit would topple or fall off.
②.
Install the air conditioner at a place where the inclination is less than 5°.
③.
Do not install the unit at a place with direct sunlight.
④.
Do not install where there is the danger of combustible gas leakage.
⑤.
Do not install the unit near heat source of heat, steam, or flammable gas.
Selection of Installation Location for Indoor Unit (Select a location
pursuant to the following condition)
(1) Air inlet and outlet of the indoor unit should be away from obstacles to make
sure the unit’s air flow can reach the entire room. Do not install the unit in a
kitchen or a laundry.
(2) Select a location that can withstand 4 times the unit weight without increasing
operating noise and vibration.
(3) The installation location must be level.
(4) The indoor piping length and wiring length should be within the allowable
range.
(5) Select a place that can easily drain condensate and connect to the drain
system of the air conditioner.
