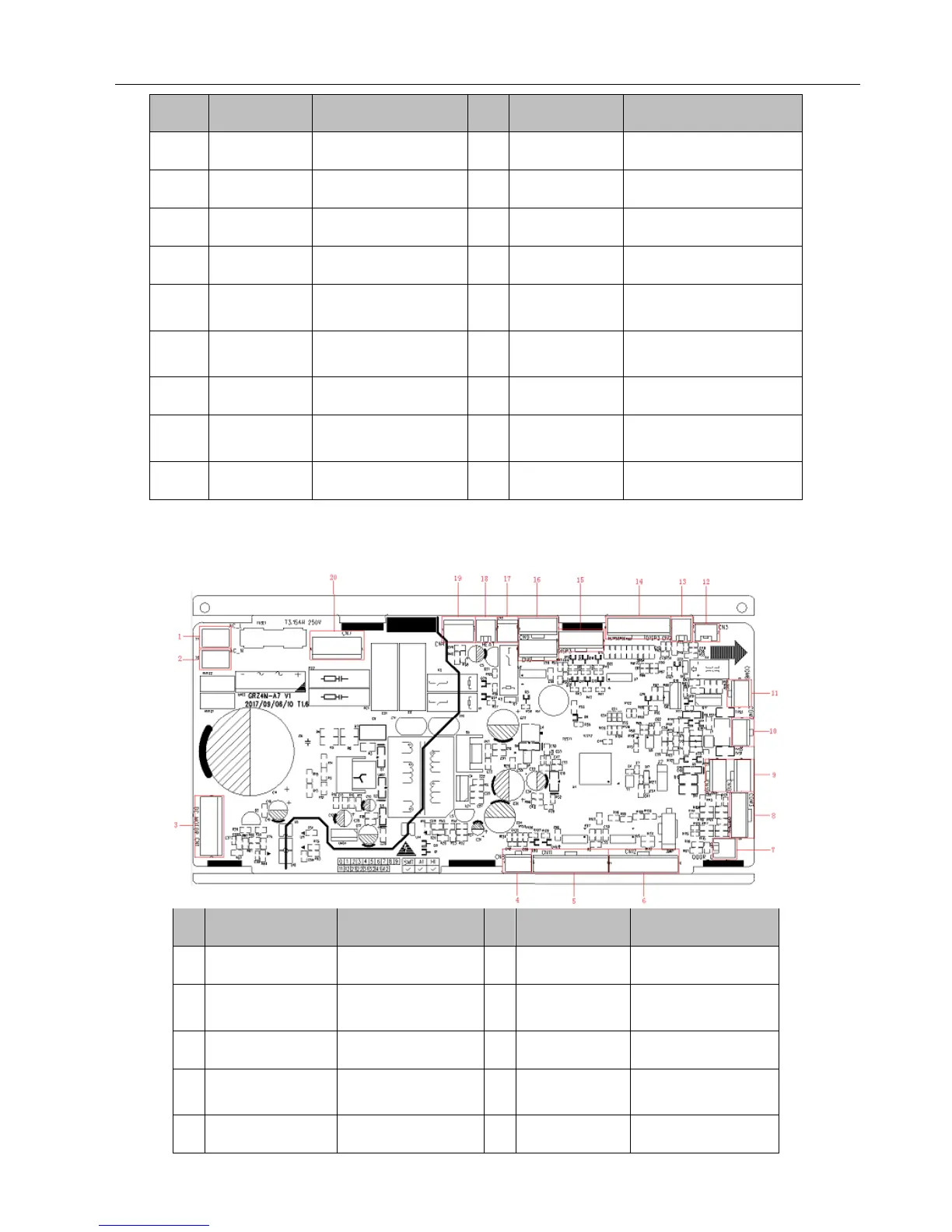

GREE U-Match 5 SERIES UNIT SERVICE MANUAL
27
No.
Printing
Interface
No.
Printing
Interface
1
CN6
Power supply
2
DC_MOTOR
DC motor output
3
PUMP
DC water pump
4
WATER_DTCT
Water level switch
5
UD_SWING2
Vertical swing output 2
6
UD_SWING1
Vertical swing output 1
7
DOOR_C
Access control interface
8
COM_BMS
MODBUS gateway interface
9
COM1,COM2
Accessories
communication interface
10
COM_OUT
ODU communication
interface
11
COM_MANAUL
Wired control
communication interface
12
TUBE
Evaporator temperature
sensor
13
DISP2
Light board interface 2
14
DISP3
Light board interface 3
15
ROOM
Ambient temperature
sensor interface
16
HEAT
Electric heating interface
17
X3
Ground wire
Model: GUD100T/A-T, GUD125T/A-T, GUD140T/A-T, GUD160T/A-T:
No.
Printing
Interface
No.
Printing
Interface
1
AC-L
Live wire input
2
AC-N
Neutral wire input
3
DC_MOTOR
DC motor output
4
SS
Limit switch sensing
interface
5
UD_SWING2
Vertical swing output 2
6
UD_SWING1
Vertical swing output 1
7
DOOR_C
Access control
interface
8
COM_BMS
MODBUS gateway
interface
9
COM1COM2
Accessories
10
COM_MANUAL
Wired control
