Gree GUD50T/A-T Service Manual

GREE U-Match 5 SERIES UNIT SERVICE MANUAL
28

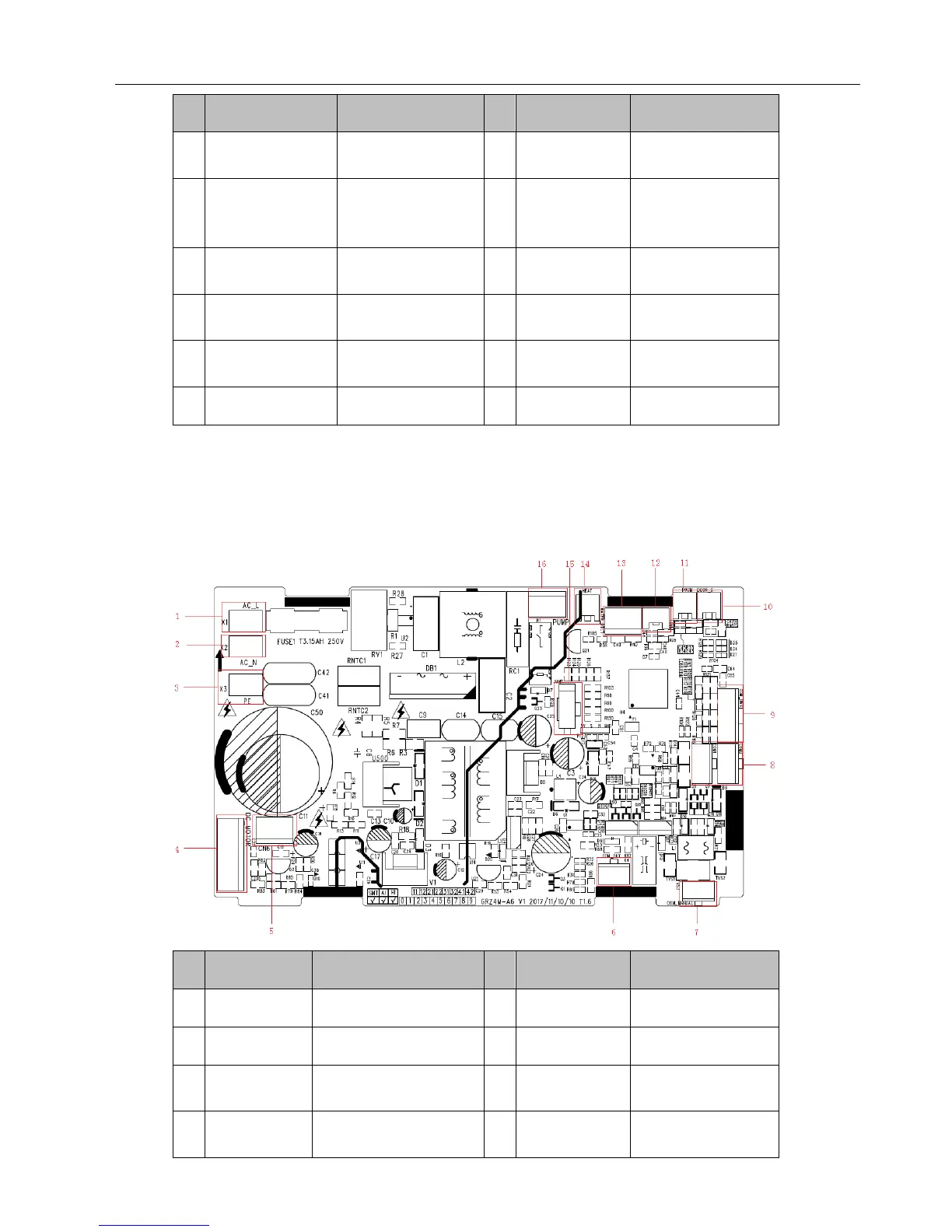

No.
Printing
Interface
No.
Printing
Interface
communication
interface
communication
interface
11
COM_OUT
ODU communication
interface
12
TUBE
Indoor tube
temperature sensor
interface
13
ROOM
Ambient temperature
sensor interface
14
DISP2
Light board interface 2
15
DISP3
Light board interface 3
16
SWING_OUT1
SWING_OUT2
Air outlet lifting output 1
Air outlet lifting output 2
17
PUMP
DC water pump
interface
18
HEAT
Electric heating
interface
19
WATER_DTCT
Water level switch
20
CN7
Air return lifting output
Model: GUD35P/A-T, GUD50P/A-T, GUD71P/A-T, GUD85P/A-T, GUD100PH/A-T, GUD125PH/A-T, GUD140PH/A-T,
GUD160PH/A-T;
GUD35PS/A-T, GUD50PS/A-T, GUD71PS/A-T, GUD85PS/A-T, GUD100PHS/A-T, GUD125PHS/A-T, GUD140PHS/A-T,
GUD160PHS/A-T
No.
Printing
Interface
No.
Printing
Interface
1
AC-L
Live wire input
2
AC-N
Neutral wire input
3
PE
Ground wire
4
DC-MOTOR
DC motor output
5
CN6
Motor type selection
interface
6
COM-OUT
ODU communication
interface
7
COM-MANUAL
Wired control
communication interface
8
COM1，COM2
Accessories
communication
