Drill Piping Hole
1.Slant the piping hole (Ф2 1/6 or Ф2 3/4) on the wall sl ightly downward
to the outdoor side.
2.Insert the piping-hole sleeve into the hole to prevent the connection piping
and wiring from being damaged when passing through the hole.
Indoor
Outdoor
Wall pipe
Seal pad
4

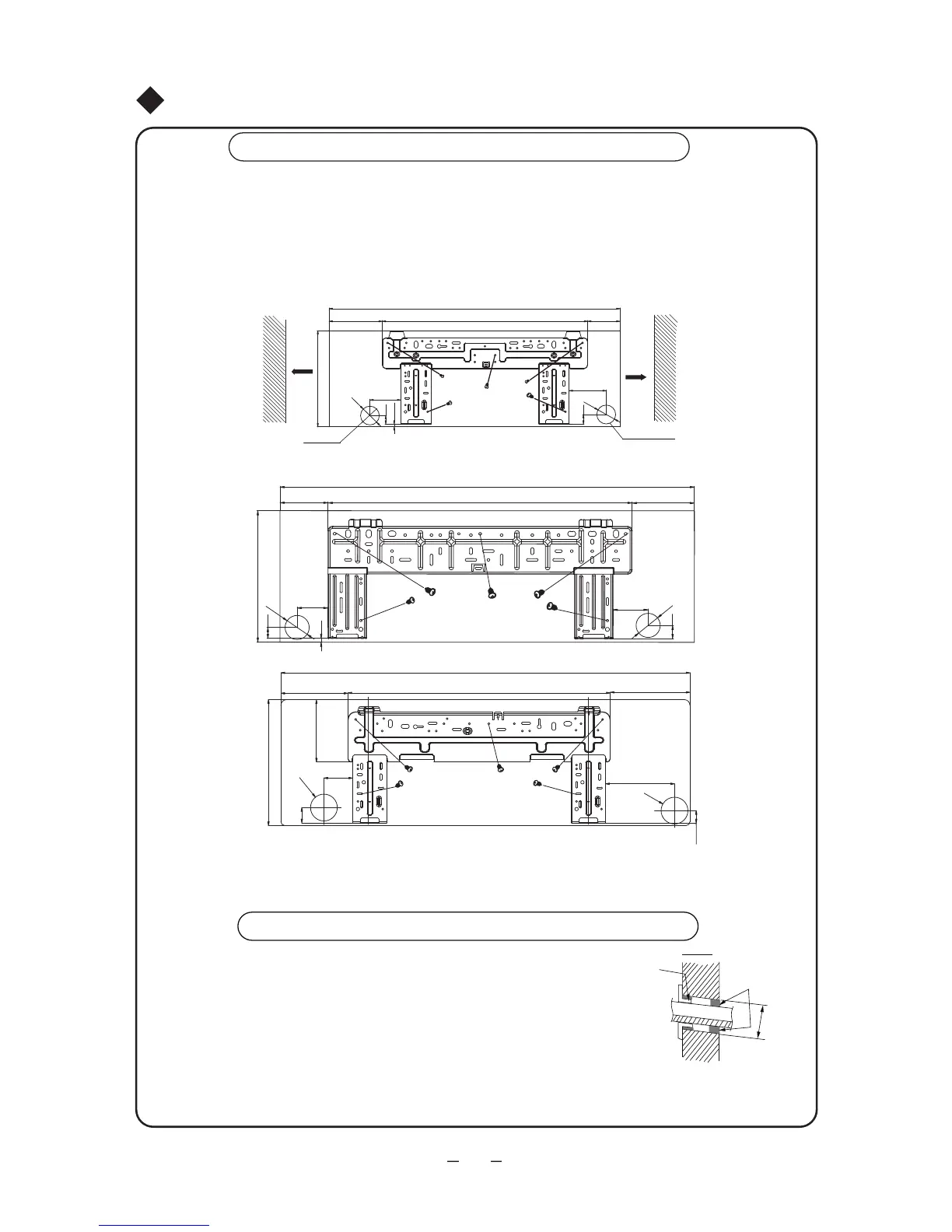

Installation of Indoor Unit
Installation of Mounting Plate
1. Mounting plate should be installed horizontally. As the water tray's outlet for the indoor unit is two-way
type, during installation, the indoor unit should slightly slant to water tray's outlet for smooth drainage of
condensate.
2.Fix the mounting plate on the wall with screws.
3.Be sure that the mounting plate has been fixed firmly enough to withstand about 132.3 lb. Meanwhile, the
weight should be evenly shared by each screw.
Fig.5
09K、
12K UNIT:
(Rear piping hole)
(Rear piping hole)
Left
Right
the wall
6inch
above
Space to
the wall
6inch
above
Wall
Wall
18K UNIT:
24K UNIT:
Ф2 1/6
or
Ф2 3/4
3 4/7
6 1/6
1
11 1/7
23 5/6 3 3/4
1/3
33 3/4
1 1/9
4 2/7
Unit:
inch
4 1/3
27 1/3
5 3/5
2 3/4
1
Ø2 1/6
3 1/7
1 1/6
Ø2 1/6
11 4/5
1/3
37 1/4
46
6 8/9
27
8 1/5
13
1 4/7
3
1 1/4
7
Ø2 3/4
Ø2 3/4
6 2/5
Ø2 1/6
Ø2 1/6
